Search › Model › ST180

ST180

Toyota CARINA · 1989 · 5,589 parts · 196 categories

5,589 items

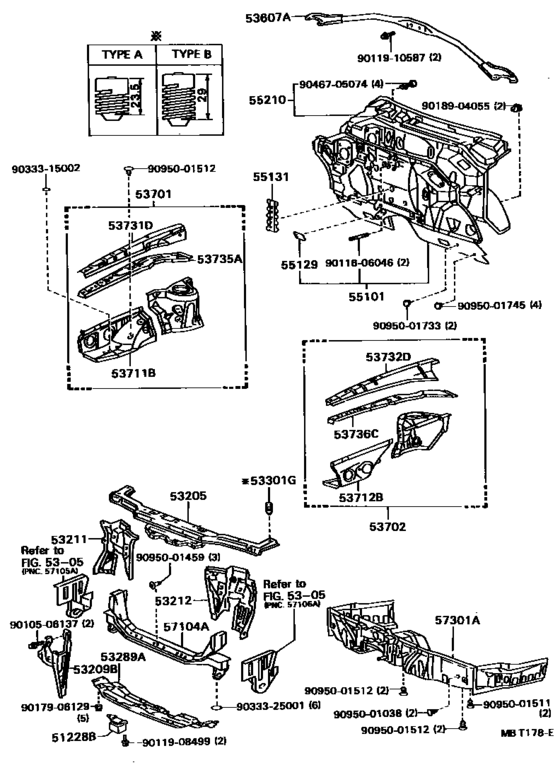

Front Fender Apron & Dash Panel ([09.1989 - ] (8909- )) 47

#	OEM	Part name
53205	53205-20040	Support Sub-Assy, Radiator, Upper
53209	53209-20210	Brace Sub-Assy, Hood Lock Support
53209	53209-20280	Brace Sub-Assy, Hood Lock Support
53211	53211-20220	Support, Radiator, Rh
53212	53212-20220	Support, Radiator, Lh
53289	53289-20050	Cover, Radiator Support Opening
53289	53289-20080	Cover, Radiator Support Opening
53301	90541-15011	Cushion, Hood Bumper
53301	90541-15033	Cushion, Back Door Lower Stopper
53301	90541-15016	Cushion, Hood Bumper
53301	90541-15019	Cushion, Hood Bumper
53701	53701-20720	Apron Sub-Assy, Front Fender, Rh
53702	53702-20690	Apron Sub-Assy, Front Fender, Lh
53711	53711-20900	Apron, Front Fender, Front Rh
53712	53712-20290	Apron, Front Fender, Front Lh
53731	53731-20090	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-20090	Member, Front Apron To Cowl Side, Upper Lh
53735	53735-20900	Member, Front Apron To Cowl Side, Lower Rh
53736	53736-20900	Member, Front Apron To Cowl Side, Lower Lh
55101	55101-2B915	Panel Sub-Assy, Dash
55101	55101-2B924	Panel Sub-Assy, Dash
55101	90950-01409	Plug, Hole(For Glove Compartment)
55101	90950-01557	PLUG
55101	55101-2B925	Panel Sub-Assy, Dash
55129	55129-20010	Cover, Dash Panel Hole
55131	55131-20090	Reinforcement, Dash Panel
55210	55210-20270	Insulator Assy, Dash Panel
57104	57104-20090	Member Sub-Assy, Front Cross
57301	57301-20200	Member Sub-Assy, Steering Gear Box Support
9010506137	90105-06137	BOLT, WASHER BASED H
9011606046	90116-06046	New Genuine Part
9011908499	90119-08499	Bolt
9011910587	90119-10587	New Genuine Part
9011910587	90119-10409	New Genuine Part
9017906129	90179-06129	NUT
9018904055	90189-04055	New Genuine Part
9033315002	90333-15002	PLUG
9033325001	90333-25001	Plug, Hole(For Hood)
9046705074	90467-05074	New Genuine Part
9095001038	90950-01038	Plug, Hole(For Instrument Lower Panel)
9095001459	90950-01459	New Genuine Part
9095001511	90950-01511	New Genuine Part
9095001512	90950-01512	New Genuine Part
9095001733	90950-01733	New Genuine Part
9095001733	90950-01956	PLUG HOLE
9095001745	90950-01745	Cover, Front Floor Hole
9095001745	90950-01882	Cover, Hole

OEM	Part name	Category
53205-20040	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53209-20210	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53209-20280	Brace Sub-Assy, Hood Lock Support	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53211-20220	Support, Radiator, Rh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53212-20220	Support, Radiator, Lh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53289-20050	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53289-20080	Cover, Radiator Support Opening	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53701-20720	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53702-20690	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53711-20900	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53712-20290	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53731-20090	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53732-20090	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53735-20900	Member, Front Apron To Cowl Side, Lower Rh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
53736-20900	Member, Front Apron To Cowl Side, Lower Lh	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
55101-2B915	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
55101-2B924	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
55101-2B925	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
55129-20010	Cover, Dash Panel Hole	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
55131-20090	Reinforcement, Dash Panel	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
55210-20270	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
57104-20090	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
57301-20200	Member Sub-Assy, Steering Gear Box Support	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90105-06137	BOLT, WASHER BASED H	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90116-06046	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90119-08499	Bolt	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90119-10409	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90119-10587	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90179-06129	NUT	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90189-04055	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90333-15002	PLUG	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90333-25001	Plug, Hole(For Hood)	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90467-05074	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90541-15011	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90541-15016	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90541-15019	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90541-15033	Cushion, Back Door Lower Stopper	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01038	Plug, Hole(For Instrument Lower Panel)	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01409	Plug, Hole(For Glove Compartment)	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01459	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01511	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01512	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01557	PLUG	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01733	New Genuine Part	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01745	Cover, Front Floor Hole	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01882	Cover, Hole	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
90950-01956	PLUG HOLE	Front Fender Apron & Dash Panel ([09.1989 - ] (8909- ))
