Search › Model › ST171

ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

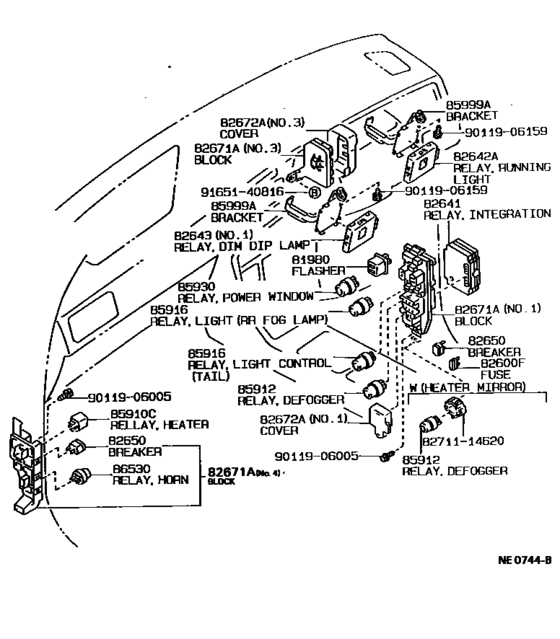

Switch & Relay & Computer ([12.1987 - ] (8712- )) 67

#	OEM	Part name
81980	81980-12070	Flasher Assy, Turn Signal
81980	81980-32010	Flasher Assy, Turn Signal
82600	90982-07011	Fuse, Fuse Block
82600	90982-09002	Fusible Link
82600	90982-09003	Fusible Link
82600	90982-09004	Fusible Link
82600	90982-09005	Fuse, Fuse Block
82641	82641-20110	Relay, Integration No.1
82643	82643-12020	Relay, Dim-Dip Lamp
82643	90987-02006	Relay
82643	90987-04002	Relay, Ignition, No.1
82650	82650-20011	Breaker Assy, Wiring Circuit, No.1
82650	82650-20020	Breaker Assy, Wiring Circuit, No.1
82671	82671-20090	Block, Junction
82671	82671-20100	Block, Junction
82671	82671-20110	Block, Junction
82671	82671-20160	Block, Junction
82671	82671-20170	Block, Junction
82672	82672-20200	Cover, Junction Block
82672	82672-20310	Cover, Junction Block
82672	82672-20460	Cover, Junction Block
82672	82672-20670	Cover, Junction Block
82672	82672-20680	Cover, Junction Block
83320	83320-80097	Gage Assy, Fuel Sender
83361	83361-32020	Gasket, Fuel Sender Gage
84233	84231-32020	Switch Assy, Courtesy Lamp (For Front Door)
84233	84231-12070	Switch Assy, Courtesy Lamp (For Front Door)
84234	84231-20230	Switch Assy, Courtesy Lamp (For Rear Door)
84236	84231-20240	Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
84236	84231-20290	Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
84340	84340-30030	Switch Assy, Stop Lamp
84340	84340-30040	Switch Assy, Stop Lamp
84550	84550-16010	Switch Assy, Brake Warning Test
84742	84742-20030	Switch, Slide Roof Limit
84810	84810-20090-03	Switch Assy, Power Window Regulator
84810	84810-20090-06	Switch Assy, Power Window Regulator
84810	84810-20090-14	Switch Assy, Power Window Regulator
84810	84810-30130	Switch Assy, Power Window Regulator
84820	84820-20230	Master Switch Assy, Power Window Regulator
84930	84930-16010-03	Switch Assy, Door Control
84930	84930-16010-P0	Switch Assy, Door Control
84930	84930-16010-06	Switch Assy, Door Control
84930	84930-16010-24	Switch Assy, Door Control
85912	90987-02002	Relay, Ignition, No.1
85912	90987-02004	Relay Assy, Starter
85921	85921-30020	Relay, Sliding Roof Control
85980	85980-20090	Relay Assy, Door Control
85999	85999-20260	Bracket, Relay, No.2
8271114620	82711-14620	Bracket, Relay, No.3
9011906005	90119-06005	New Genuine Part
9011906159	90119-06159	BOLT
9011906390	90119-06390	BOLT WWASHER
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9017010179	90170-10179	New Genuine Part
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9046805014	90468-05014	Retainer, Front Door Lower Frame Bracket Garnish
9165140610	91651-40610	RIVET
9165140614	91651-40614	Bolt
9165140816	91651-40816	BOLT
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9331514012	93315-14012	Screw with washer
9331515010	93315-15010	New Genuine Part
9338516018	93385-16018	New Genuine Part
9354014012	93540-14012	Screw

OEM	Part name	Category
81980-12070	Flasher Assy, Turn Signal	Switch & Relay & Computer ([12.1987 - ] (8712- ))
81980-32010	Flasher Assy, Turn Signal	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82641-20110	Relay, Integration No.1	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82643-12020	Relay, Dim-Dip Lamp	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82650-20011	Breaker Assy, Wiring Circuit, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82650-20020	Breaker Assy, Wiring Circuit, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82671-20090	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82671-20100	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82671-20110	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82671-20160	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82671-20170	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82672-20200	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82672-20310	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82672-20460	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82672-20670	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82672-20680	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- ))
82711-14620	Bracket, Relay, No.3	Switch & Relay & Computer ([12.1987 - ] (8712- ))
83320-80097	Gage Assy, Fuel Sender	Switch & Relay & Computer ([12.1987 - ] (8712- ))
83361-32020	Gasket, Fuel Sender Gage	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84231-12070	Switch Assy, Courtesy Lamp (For Front Door)	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84231-20230	Switch Assy, Courtesy Lamp (For Rear Door)	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84231-20240	Switch Assy, Courtesy Lamp(For Luggage Compartment Room)	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84231-20290	Switch Assy, Courtesy Lamp(For Luggage Compartment Room)	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84231-32020	Switch Assy, Courtesy Lamp (For Front Door)	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84340-30030	Switch Assy, Stop Lamp	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84340-30040	Switch Assy, Stop Lamp	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84550-16010	Switch Assy, Brake Warning Test	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84742-20030	Switch, Slide Roof Limit	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84810-20090-03	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84810-20090-06	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84810-20090-14	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84810-30130	Switch Assy, Power Window Regulator	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84820-20230	Master Switch Assy, Power Window Regulator	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84930-16010-03	Switch Assy, Door Control	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84930-16010-06	Switch Assy, Door Control	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84930-16010-24	Switch Assy, Door Control	Switch & Relay & Computer ([12.1987 - ] (8712- ))
84930-16010-P0	Switch Assy, Door Control	Switch & Relay & Computer ([12.1987 - ] (8712- ))
85921-30020	Relay, Sliding Roof Control	Switch & Relay & Computer ([12.1987 - ] (8712- ))
85980-20090	Relay Assy, Door Control	Switch & Relay & Computer ([12.1987 - ] (8712- ))
85999-20260	Bracket, Relay, No.2	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90119-06005	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90119-06159	BOLT	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90119-06390	BOLT WWASHER	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90159-50219	BOLT	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90159-A0057	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90170-10179	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90468-05014	Retainer, Front Door Lower Frame Bracket Garnish	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90982-07011	Fuse, Fuse Block	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90982-09002	Fusible Link	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90982-09003	Fusible Link	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90982-09004	Fusible Link	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90982-09005	Fuse, Fuse Block	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90987-02002	Relay, Ignition, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90987-02004	Relay Assy, Starter	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90987-02006	Relay	Switch & Relay & Computer ([12.1987 - ] (8712- ))
90987-04002	Relay, Ignition, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- ))
91651-40610	RIVET	Switch & Relay & Computer ([12.1987 - ] (8712- ))
91651-40614	Bolt	Switch & Relay & Computer ([12.1987 - ] (8712- ))
91651-40816	BOLT	Switch & Relay & Computer ([12.1987 - ] (8712- ))
91651-60614	Bolt	Switch & Relay & Computer ([12.1987 - ] (8712- ))
91655-40616	Bolt	Switch & Relay & Computer ([12.1987 - ] (8712- ))
93315-14012	Screw with washer	Switch & Relay & Computer ([12.1987 - ] (8712- ))
93315-15010	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- ))
93385-16018	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- ))
93540-14012	Screw	Switch & Relay & Computer ([12.1987 - ] (8712- ))

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 185
Collected: 2026-08-02
