Search › Model › ST171

ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

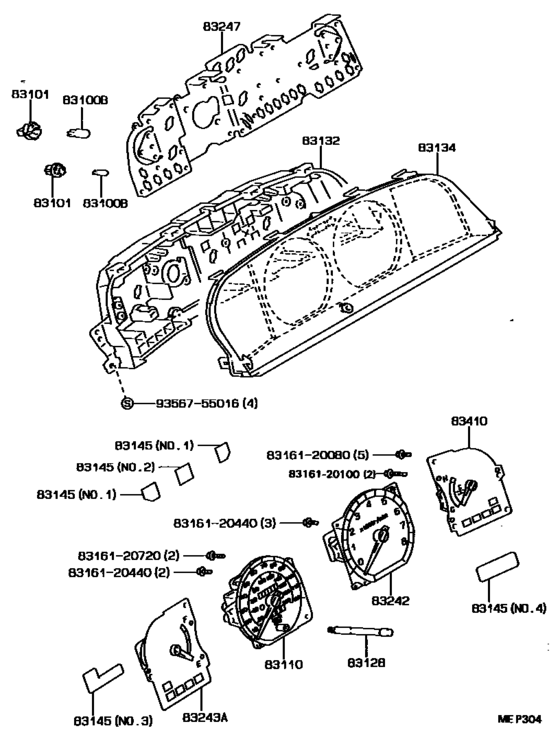

Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD) 23

#	OEM	Part name
83100	90981-11018	Bulb, Position Indicator Lamp
83100	99132-12034	Bulb, Position Indicator Lamp
83100	00234-00158	Bulb, Position Indicator Lamp
83101	83101-14040	Socket, Indicator Lamp
83101	83101-20040	Socket, Bulb(For Map Lamp)
83110	83110-2B721	Speedometer Assy
83128	83128-20710	Knob, Trip Counter
83132	83132-2B421	Case, Combination Meter
83134	83134-2B400	Cover, Combination Meter, No.1
83145	83145-2B460	Lens, Meter, No.1
83145	83145-2B480	Lens, Meter, No.1
83145	83145-2D180	Lens, Meter, No.1
83145	83146-2B260	Lens, Meter, No.1
83242	83242-2B740	Tachometer Assy, Engine
83243	83243-2B740	Gauge Sub-Assy, Fuel Receiver
83247	83247-2D520	Plate, Meter Circuit
83410	83244-2B860	Gage Assy, Water Temperature Receiver
8316120080	83161-20080	Case, Combination Meter Mirror, No.1
8316120100	83161-20100	Case, Combination Meter Mirror, No.1
8316120440	83161-20440	Case, Combination Meter Mirror, No.1
8316120720	83161-20720	Case, Combination Meter Mirror, No.1
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
00234-00158	Bulb, Position Indicator Lamp	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83101-14040	Socket, Indicator Lamp	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83101-20040	Socket, Bulb(For Map Lamp)	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83110-2B721	Speedometer Assy	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83128-20710	Knob, Trip Counter	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83132-2B421	Case, Combination Meter	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83134-2B400	Cover, Combination Meter, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83145-2B460	Lens, Meter, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83145-2B480	Lens, Meter, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83145-2D180	Lens, Meter, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83146-2B260	Lens, Meter, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83161-20080	Case, Combination Meter Mirror, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83161-20100	Case, Combination Meter Mirror, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83161-20440	Case, Combination Meter Mirror, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83161-20720	Case, Combination Meter Mirror, No.1	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83242-2B740	Tachometer Assy, Engine	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83243-2B740	Gauge Sub-Assy, Fuel Receiver	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83244-2B860	Gage Assy, Water Temperature Receiver	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
83247-2D520	Plate, Meter Circuit	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
90981-11018	Bulb, Position Indicator Lamp	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
93567-55016	Screw	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
93568-55016	Screw	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
99132-12034	Bulb, Position Indicator Lamp	Meter ([12.1987 - ] W(TACHOMETER) (8712- )RHD)
