ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

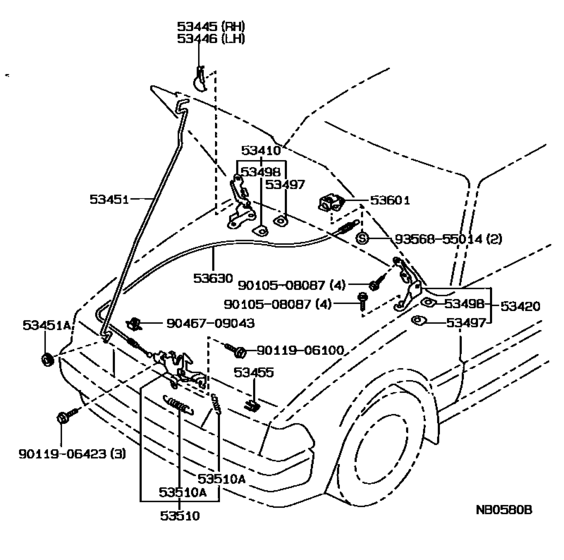

Hood Lock & Hinge ([12.1987 - ] (8712- )) 24

#	OEM	Part name
53410	53410-20100	Hinge Assy, Hood, Rh
53420	53420-20090	Hinge Assy, Hood, Lh
53445	53445-20010	Cover, Hood Hinge, Rh
53446	53446-20010	Cover, Hood Hinge, Lh
53451	53451-20070	Rod, Hood Support
53451	90480-15012	Grommet(For Hood Support)
53455	53455-14020	Clamp, Hood Support Rod
53497	53497-20020	Pad, Hood Hinge, No.1
53497	53497-12011	Pad, Hood Hinge, No.1
53498	53498-20010	Pad, Hood Hinge, No.2
53498	53498-12011	Pad, Hood Hinge, No.2
53510	53510-20240	Lock Assy, Hood
53510	90506-09029	Spring, Tension(For Hood Lock)
53510	90506-20008	Spring, Tension(For Hood Lock)
53601	53601-10020-16	Lever Sub-Assy, Hood Lock Control
53601	53601-10020-C0	Lever Sub-Assy, Hood Lock Control
53601	53601-10020-34	Lever Sub-Assy, Hood Lock Control
53601	53601-10020-B1	Lever Sub-Assy, Hood Lock Control
53630	53630-20250	Cable Assy, Hood Lock Control
9010508087	90105-08087	New Genuine Part
9011906100	90119-06100	BOLT
9011906423	90119-06423	BOLT WWASHER
9046709043	90467-09043	Clamp, Hood Lock Control Cable
9356855014	93568-55014	Screw

OEM	Part name	Category
53410-20100	Hinge Assy, Hood, Rh	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53420-20090	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53445-20010	Cover, Hood Hinge, Rh	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53446-20010	Cover, Hood Hinge, Lh	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53451-20070	Rod, Hood Support	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53455-14020	Clamp, Hood Support Rod	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53497-12011	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53497-20020	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53498-12011	Pad, Hood Hinge, No.2	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53498-20010	Pad, Hood Hinge, No.2	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53510-20240	Lock Assy, Hood	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53601-10020-16	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53601-10020-34	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53601-10020-B1	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53601-10020-C0	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([12.1987 - ] (8712- ))
53630-20250	Cable Assy, Hood Lock Control	Hood Lock & Hinge ([12.1987 - ] (8712- ))
90105-08087	New Genuine Part	Hood Lock & Hinge ([12.1987 - ] (8712- ))
90119-06100	BOLT	Hood Lock & Hinge ([12.1987 - ] (8712- ))
90119-06423	BOLT WWASHER	Hood Lock & Hinge ([12.1987 - ] (8712- ))
90467-09043	Clamp, Hood Lock Control Cable	Hood Lock & Hinge ([12.1987 - ] (8712- ))
90480-15012	Grommet(For Hood Support)	Hood Lock & Hinge ([12.1987 - ] (8712- ))
90506-09029	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([12.1987 - ] (8712- ))
90506-20008	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([12.1987 - ] (8712- ))
93568-55014	Screw	Hood Lock & Hinge ([12.1987 - ] (8712- ))

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 185
Collected: 2026-08-02
