Search › Model › ST171

ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

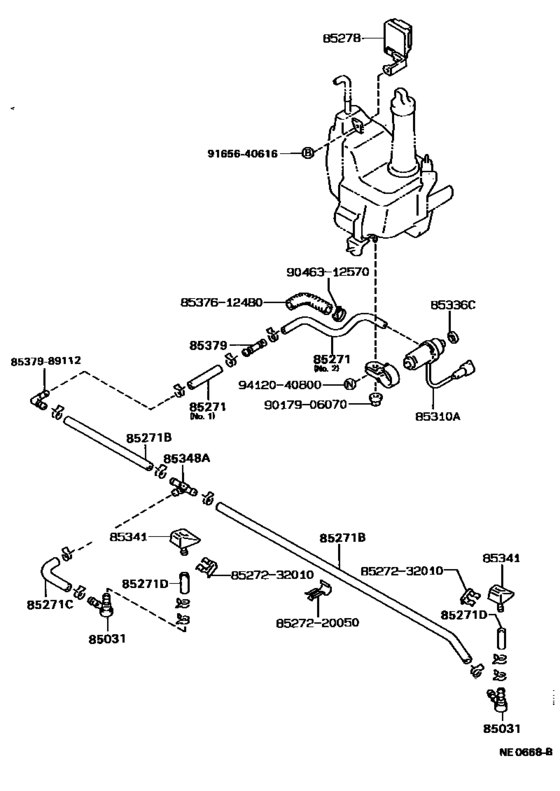

Headlamp Cleaner ([12.1987 - ] (8712- )) 23

#	OEM	Part name
85031	85031-30020	Valve, Headlamp Cleaner Washer Hose
85271	85375-20190	Hose, Headlamp Cleaner, No.2
85271	85375-22061	Hose, Headlamp Cleaner, No.1
85271	90445-14072	Hose, Headlamp Cleaner, No.1
85271	85343-95700	Hose, Headlamp Cleaner, No.3
85271	85375-16020	Hose, Headlamp Cleaner, No.5
85278	85276-20050	Relay Assy, Headlamp Cleaner Control
85310	85310-12190	Motor And Pump Assy, Headlamp Cleaner Washer
85310	85310-95J02	Motor And Pump Assy, Headlamp Cleaner Washer
85336	85336-10010	Bush, Windshield Washer Jar
85341	85035-20120	Nozzle, Headlamp Cleaner Washer
85348	85352-12010	Joint, Headlamp Cleaner Hose, No.1
8527220050	85272-20050	Clamp, Headlamp Cleaner, No.1
8527232010	85272-32010	Clamp, Headlamp Cleaner, No.1
8527232010	85272-20060	Clamp, Headlamp Cleaner, No.1
8537612480	85376-12480	Protector, Headlamp Cleaner Hose, No.1
8537989112	85379-89112	Joint
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9046312570	90463-12570	CLAMP
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)

OEM	Part name	Category
85031-30020	Valve, Headlamp Cleaner Washer Hose	Headlamp Cleaner ([12.1987 - ] (8712- ))
85035-20120	Nozzle, Headlamp Cleaner Washer	Headlamp Cleaner ([12.1987 - ] (8712- ))
85272-20050	Clamp, Headlamp Cleaner, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
85272-20060	Clamp, Headlamp Cleaner, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
85272-32010	Clamp, Headlamp Cleaner, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
85276-20050	Relay Assy, Headlamp Cleaner Control	Headlamp Cleaner ([12.1987 - ] (8712- ))
85310-12190	Motor And Pump Assy, Headlamp Cleaner Washer	Headlamp Cleaner ([12.1987 - ] (8712- ))
85310-95J02	Motor And Pump Assy, Headlamp Cleaner Washer	Headlamp Cleaner ([12.1987 - ] (8712- ))
85336-10010	Bush, Windshield Washer Jar	Headlamp Cleaner ([12.1987 - ] (8712- ))
85343-95700	Hose, Headlamp Cleaner, No.3	Headlamp Cleaner ([12.1987 - ] (8712- ))
85352-12010	Joint, Headlamp Cleaner Hose, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
85375-16020	Hose, Headlamp Cleaner, No.5	Headlamp Cleaner ([12.1987 - ] (8712- ))
85375-20190	Hose, Headlamp Cleaner, No.2	Headlamp Cleaner ([12.1987 - ] (8712- ))
85375-22061	Hose, Headlamp Cleaner, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
85376-12480	Protector, Headlamp Cleaner Hose, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
85379-89112	Joint	Headlamp Cleaner ([12.1987 - ] (8712- ))
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Headlamp Cleaner ([12.1987 - ] (8712- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
90445-14072	Hose, Headlamp Cleaner, No.1	Headlamp Cleaner ([12.1987 - ] (8712- ))
90463-12570	CLAMP	Headlamp Cleaner ([12.1987 - ] (8712- ))
91651-60614	Bolt	Headlamp Cleaner ([12.1987 - ] (8712- ))
91656-40616	Bolt	Headlamp Cleaner ([12.1987 - ] (8712- ))
94120-40800	Nut(For Clutch Pedal Stopper)	Headlamp Cleaner ([12.1987 - ] (8712- ))

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 185
Collected: 2026-08-02
