Search › Model › ST171

ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

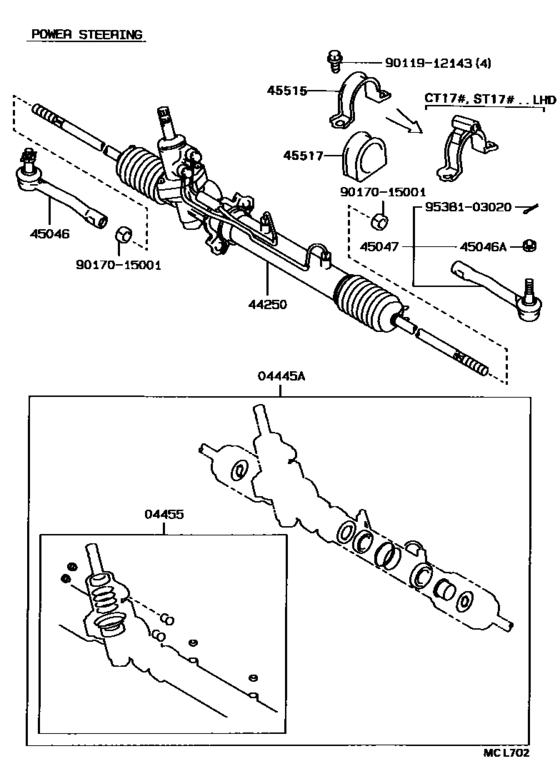

Front Steering Gear & Link ([12.1987 - ] (8712- )) 60

#	OEM	Part name
4445	04445-20080	Gasket Kit, Power Steering Gear(For Rack & Pinion)
4455	04455-20060	Gasket Kit, Power Steering Control Valve Overhole
44015	44015-22020	Nut Sub-Assy, Bearing Guide
44015	90301-43002	Ring, O(For Bearing Guide Nut)
44015	90310-25020	Seal, Oil(For Bearing Guide Nut)
44015	90310-25004	Seal, Oil(For Bearing Guide Nut)
44201	44201-20220	Valve Sub-Assy, Power Steering Control
44201	90562-33007	Ring(For Power Steering Control Valve)
44203	44203-20140	Housing Sub-Assy, Power Steering Rack
44203	44203-20370	Housing Sub-Assy, Power Steering Rack
44204	44204-20130	Rack Sub-Assy, Power Steering
44204	90301-36005	Ring(For Rack Steering Piston)
44204	90562-39001	Ring(For Rack Steering Piston)
44206	90310-25016	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90310-25017	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90310-25035	Seal, Oil, No.1(For Power Steering Cylinder Tube)
44206	90560-26012	Spacer, No.1(For Power Steering Cylinder Tube)
44210	44210-20260	Valve Assy, Power Steering Control
44210	90410-06005	Seat, Union(Pressure Control Valve Assy)
44210	90301-51001	Ring, O(For Adjuster Plug)
44210	90311-19002	Seal, Oil(For Adjuster Plug)
44210	90363-19003	Bearing(For Rear Steering Control Valve Housing)
44211	44211-20120	Housing, Control Valve
44250	44250-20340	Gear Assy, Power Steering(For Rack & Pinion)
44275	44275-20060	Stopper, Cylinder End
44275	90386-25002	Bush(For Cylinder End Stopper)
44277	44277-20010	Seat, Rack Guide
44277	44277-20050	Seat, Rack Guide
44418	44418-20130	Tube, Steering Right Turn Pressure
44418	90410-04002	Seat, Union(For Power Steering Rack Housing)
44419	44419-20121	Tube, Steering Left Turn Pressure
44419	90401-10032	Bolt, Union(For Steering Turn Pressure Tube)
44419	90430-10008	Gasket(For Steering Turn Pressure Tube)
45046	45046-29165	End Sub-Assy, Tie Rod, Rh
45046	90171-12028	Nut, Castle(For Pitman Arm)
45047	45047-29045	End Sub-Assy, Tie Rod, Lh
45222	45222-32010	Cover, Dust(For Power Steering Gear)
45503	45503-29165	End Sub-Assy, Steering Rack
45503	90214-14002	Washer, Claw(For Power Steering Rack End)
45514	45514-20040	Bracket, Steering Rack Housing, No.1
45515	45515-20050	Bracket, Steering Rack Housing, No.2
45516	45516-20020	Grommet, Steering Rack Housing, No.1
45517	45517-20050	Grommet, Steering Rack Housing, No.2
45523	45523-12010	Guide, Rack(For Power Steering)
45523	45523-20050	Guide, Rack(For Steering Gear)
45523	90501-23007	Spring(For Power Steering Rack Guide)
45524	45524-16010	Cap(For Power Steering Pinion)
45524	45524-20040	Cap, Rack Guide Spring(For Power Steering)
45524	90179-36002	Nut(For Power Steering Pinion Cap)
45535	45535-20040	Boot, Steering Rack No.1(For Power Steering)
45535	90460-53002	Clamp(For Power Steering Rack Boot)
45535	90467-18003	Clip Or Clamp(For Ventilation Hose)
9011912143	90119-12143	New Genuine Part
9011912143	90119-12288	Bolt
9014930004	90149-30004	Screw(For Steering Rack Boot Clamp)
9017015001	90170-15001	Nut, Rack End Lock
9020822002	90208-22002	LEXWASHERCONE SPRG
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
04445-20080	Gasket Kit, Power Steering Gear(For Rack & Pinion)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
04455-20060	Gasket Kit, Power Steering Control Valve Overhole	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44015-22020	Nut Sub-Assy, Bearing Guide	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44201-20220	Valve Sub-Assy, Power Steering Control	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44203-20140	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44203-20370	Housing Sub-Assy, Power Steering Rack	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44204-20130	Rack Sub-Assy, Power Steering	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44210-20260	Valve Assy, Power Steering Control	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44211-20120	Housing, Control Valve	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44250-20340	Gear Assy, Power Steering(For Rack & Pinion)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44275-20060	Stopper, Cylinder End	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44277-20010	Seat, Rack Guide	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44277-20050	Seat, Rack Guide	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44418-20130	Tube, Steering Right Turn Pressure	Front Steering Gear & Link ([12.1987 - ] (8712- ))
44419-20121	Tube, Steering Left Turn Pressure	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45046-29165	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45047-29045	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45222-32010	Cover, Dust(For Power Steering Gear)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45503-29165	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45514-20040	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45515-20050	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45516-20020	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45517-20050	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45523-12010	Guide, Rack(For Power Steering)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45523-20050	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45524-16010	Cap(For Power Steering Pinion)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45524-20040	Cap, Rack Guide Spring(For Power Steering)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
45535-20040	Boot, Steering Rack No.1(For Power Steering)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90119-12143	New Genuine Part	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90119-12288	Bolt	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90149-30004	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90170-15001	Nut, Rack End Lock	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90179-36002	Nut(For Power Steering Pinion Cap)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90208-22002	LEXWASHERCONE SPRG	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90301-36005	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90301-43002	Ring, O(For Bearing Guide Nut)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90301-51001	Ring, O(For Adjuster Plug)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90310-25004	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90310-25016	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90310-25017	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90310-25020	Seal, Oil(For Bearing Guide Nut)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90310-25035	Seal, Oil, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90311-19002	Seal, Oil(For Adjuster Plug)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90363-19003	Bearing(For Rear Steering Control Valve Housing)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90386-25002	Bush(For Cylinder End Stopper)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90401-10032	Bolt, Union(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90410-04002	Seat, Union(For Power Steering Rack Housing)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90410-06005	Seat, Union(Pressure Control Valve Assy)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90430-10008	Gasket(For Steering Turn Pressure Tube)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90460-53002	Clamp(For Power Steering Rack Boot)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90467-18003	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90501-23007	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90560-26012	Spacer, No.1(For Power Steering Cylinder Tube)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90562-33007	Ring(For Power Steering Control Valve)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
90562-39001	Ring(For Rack Steering Piston)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
91511-60825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
91511-B0825	Bolt (For Transfer Stiffener Plate)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([12.1987 - ] (8712- ))
