ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

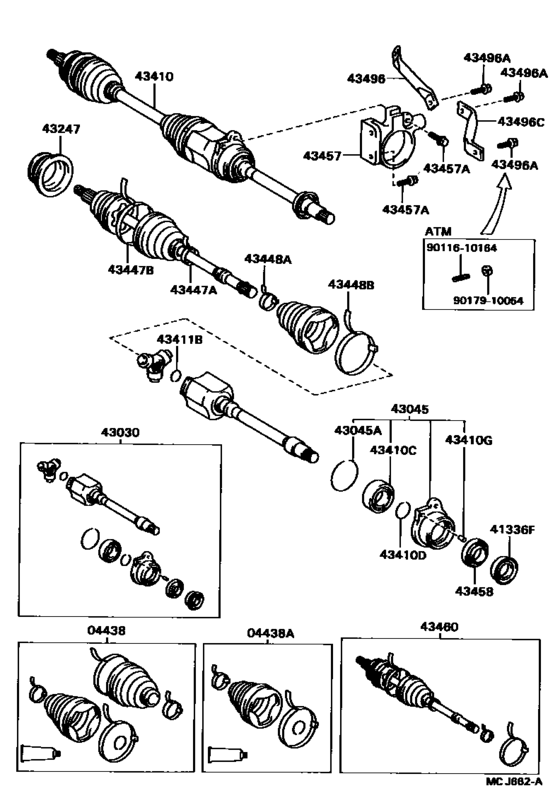

Front Drive Shaft ([11.1989 - ] (8911- )ST171) 45

#	OEM	Part name
4438	04438-12190	Boot Kit, Front Drive Shaft
4438	04438-12191	Boot Kit, Front Drive Shaft
4438	04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-12160	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-32290	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-12161	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-20011	Cover, Dust(For Front Drive Shaft)
41336	41336-20050	Cover, Front Drive Shaft Dust, Rh
41336	41336-32020	Cover, Dust(For Differential Side Gear Shaft)
43030	43030-20030	Joint Assy, Front Drive Inboard, Rh
43030	43030-32060	Joint Assy, Rear Drive Shaft Inboard, Rh
43045	43045-20010	Case Sub Assy, Drive Shaft Bearing
43045	96153-00680	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)
43247	43247-32011	Deflector, Front Wheel Bearing Dust, No.2
43247	43247-33010	Deflector, Front Wheel Bearing Dust, No.2
43410	43410-20350	Shaft Assy, Front Drive, Rh
43410	43410-20353	Shaft Assy, Front Drive, Rh
43410	43525-20030	Cap, Front Wheel Adjusting Lock
43410	90179-22020	Nut (For Rear Axle Shaft)
43410	90178-22001	Nut (For Axle Shaft)
43410	43410-20351	Shaft Assy, Front Drive, Rh
43410	90363-36001	Bearing
43410	90363-36004	Bearing(For Rear Drive Shaft)
43410	90363-36010	Bearing (For Front Drive Shaft)
43410	90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)
43410	90250-06003	Pin, Straight
43411	90520-22005	Ring, Snap (For Rear Drive Shaft)
43447	42345-14010	Clamp, Rear Drive Shaft Boot
43447	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43447	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43457	43457-20030	Bracket, Drive Shaft Bearing
43457	90105-10202	Bolt (For Front Differential Carrier Cover Setting)
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43458	43458-20011	Cover, Front Drive Shaft Dust
43460	43470-29225	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-80277	Shaft Assy, Front Drive Outboard Joint, Lh
43460	43470-29226	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-29227	Shaft Assy, Front Drive Outboard Joint, Rh
43496	43496-20010	Stay, Front Drive Shaft Bearing Braket, No.1
43496	90105-10263	Bolt (For Drive Shaft Bearing Bracket Stay)
43496	43496-20060	Stay, Front Drive Shaft Bearing Braket, No.1
43496	43496-20030	Stay, Front Drive Shaft Bearing Braket, No.1
9011610164	90116-10164	Bolt (For Drive Shaft Bearing Bracket Stay)
9017910054	90179-10054	Nut, No.1 (For Center Support Bearing)

OEM	Part name	Category
04438-12160	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
04438-12161	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
04438-12190	Boot Kit, Front Drive Shaft	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
04438-12191	Boot Kit, Front Drive Shaft	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
04438-32290	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
41336-20011	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
41336-20050	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
41336-32020	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43030-20030	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43030-32060	Joint Assy, Rear Drive Shaft Inboard, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43045-20010	Case Sub Assy, Drive Shaft Bearing	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43247-32011	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43247-33010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43410-20350	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43410-20351	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43410-20353	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43457-20030	Bracket, Drive Shaft Bearing	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43458-20011	Cover, Front Drive Shaft Dust	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43470-29225	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43470-29226	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43470-29227	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43470-80277	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43496-20010	Stay, Front Drive Shaft Bearing Braket, No.1	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43496-20030	Stay, Front Drive Shaft Bearing Braket, No.1	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43496-20060	Stay, Front Drive Shaft Bearing Braket, No.1	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
43525-20030	Cap, Front Wheel Adjusting Lock	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90105-10202	Bolt (For Front Differential Carrier Cover Setting)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90105-10263	Bolt (For Drive Shaft Bearing Bracket Stay)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90116-10164	Bolt (For Drive Shaft Bearing Bracket Stay)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90178-22001	Nut (For Axle Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90179-10054	Nut, No.1 (For Center Support Bearing)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90179-22020	Nut (For Rear Axle Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90250-06003	Pin, Straight	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90363-36001	Bearing	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90363-36004	Bearing(For Rear Drive Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90363-36010	Bearing (For Front Drive Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90520-22005	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
96153-00680	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)	Front Drive Shaft ([11.1989 - ] (8911- )ST171)
