Search › Model › ST171

ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

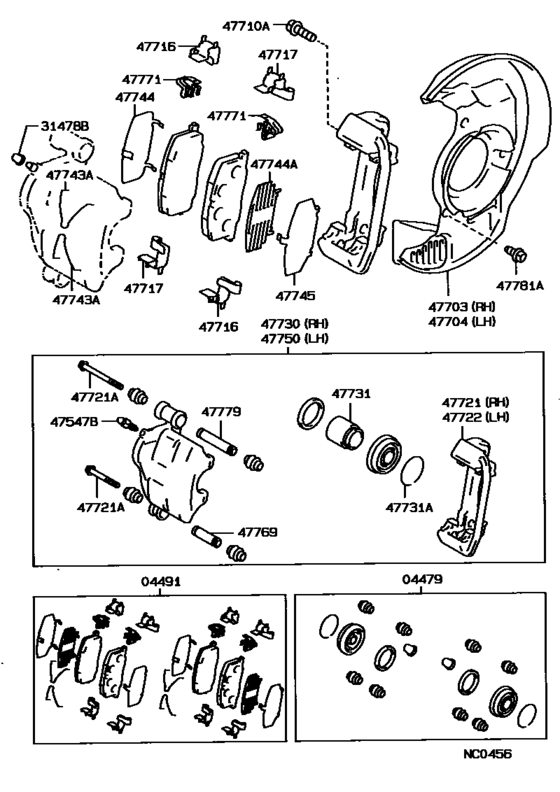

Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- )) 49

#	OEM	Part name
4479	04479-32021	Cylinder Kit, Disc Brake, Front
4479	04479-32030	Cylinder Kit, Disc Brake, Front
4491	04491-20580	Pad Kit, Disc Brake, Front
4491	04465-12490	Pad Kit, Disc Brake, Front
4491	04491-20581	Pad Kit, Disc Brake, Front
4491	04491-20590	Pad Kit, Disc Brake, Front
4491	04465-20170	Pad Kit, Disc Brake, Front
4491	04491-20591	Pad Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47703	47703-12121	Cover Sub-Assy, Disc Brake Dust, Front Rh
47703	47703-20051	Cover Sub-Assy, Disc Brake Dust, Front Rh
47703	47703-32021	Cover Sub-Assy, Disc Brake Dust, Front Rh
47703	47703-32040	Cover Sub-Assy, Disc Brake Dust, Front Rh
47704	47704-12121	Cover Sub-Assy, Disc Brake Dust, Front Lh
47704	47704-20051	Cover Sub-Assy, Disc Brake Dust, Front Lh
47704	47704-32021	Cover Sub-Assy, Disc Brake Dust, Front Lh
47704	47704-32040	Cover Sub-Assy, Disc Brake Dust, Front Lh
47710	90119-12040	Bolt, Hexagon(For Front Disc Brake Caliper)
47716	47716-20140	Plate, Pad Support, No.1(For Front Disc Brake)
47716	47716-32031	Plate, Pad Support, No.1(For Front Disc Brake)
47716	47716-32041	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-20140	Plate, Pad Support, No.2(For Front Disc Brake)
47717	47717-32031	Plate, Pad Support, No.2(For Front Disc Brake)
47717	47717-32041	Plate, Pad Support, No.2(For Front Disc Brake)
47721	47721-20200	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-20350	Mounting, Front Disc Brake Cylinder, Rh
47721	90119-09003	Bolt(For Front Disc Brake Cylinder Slide)
47721	90119-09004	Bolt(For Front Disc Brake Cylinder Slide)
47721	90119-10014	Bolt(For Front Disc Brake Cylinder Mounting)
47721	90119-10249	Bolt(For Front Disc Brake Cylinder Mounting)
47730	47730-20300	Cylinder Assy, Front Disc Brake, Rh
47730	47730-20460	Cylinder Assy, Front Disc Brake, Rh
47731	47731-12130	Piston, Front Disc Brake
47731	47731-32040	Piston, Front Disc Brake
47731	90522-64003	Ring, Set(For Front Disc Brake Piston)
47731	90522-66001	Ring, Set(For Front Disc Brake Piston)
47743	47743-32020	Spring, Anti-Rattle, No.2(For Front Disc Brake)
47744	47744-16011	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744	47744-32010	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744	47744-32041	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47750	47750-20300	Cylinder Assy, Disc Brake, Lh
47750	47750-20460	Cylinder Assy, Disc Brake, Lh
47769	47769-12030	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47769	47769-40010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-12050	Plate, Pad Wear Indicator, No.1
47779	47779-16010	Bush, Cylinder Slide, No.2(For Front Disc Brake)
47779	47779-40010	Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781	90109-06134	Bolt(For Dust Cover To Steering Knuckle Arm Setting)

OEM	Part name	Category
04465-12490	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
04465-20170	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
04479-32021	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
04479-32030	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
04491-20580	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
04491-20581	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
04491-20590	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
04491-20591	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47703-12121	Cover Sub-Assy, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47703-20051	Cover Sub-Assy, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47703-32021	Cover Sub-Assy, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47703-32040	Cover Sub-Assy, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47704-12121	Cover Sub-Assy, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47704-20051	Cover Sub-Assy, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47704-32021	Cover Sub-Assy, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47704-32040	Cover Sub-Assy, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47716-20140	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47716-32031	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47716-32041	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47717-20140	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47717-32031	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47717-32041	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47721-20200	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47721-20350	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47730-20300	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47730-20460	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47731-12130	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47731-32040	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47743-32020	Spring, Anti-Rattle, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47744-16011	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47744-32010	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47744-32041	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47750-20300	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47750-20460	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47769-12030	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47769-40010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47771-12050	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47779-16010	Bush, Cylinder Slide, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
47779-40010	Bush, Cylinder Slide, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90109-06134	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90119-09003	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90119-09004	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90119-10014	Bolt(For Front Disc Brake Cylinder Mounting)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90119-10249	Bolt(For Front Disc Brake Cylinder Mounting)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90119-12040	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90522-64003	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
90522-66001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([12.1987 - ] (8712- ))
