Search › Model › ST171

ST171

Toyota CARINA · 1987 · 4,749 parts · 185 categories

4,749 items

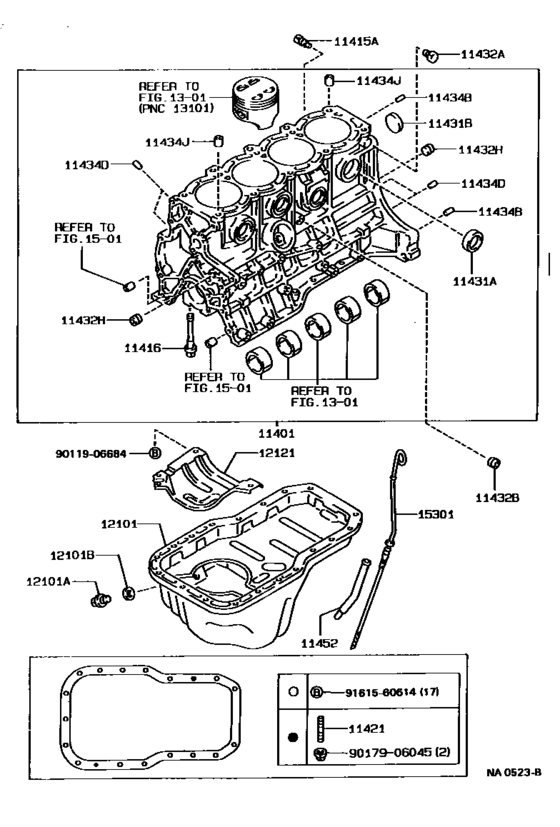

Cylinder Block ([12.1987 - ] (8712- )3SFE) 24

#	OEM	Part name
11401	11401-79307	Block Sub-Assy, Cylinder
11415	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11416	90105-10028	Bolt(For Crankshaft Bearing Cap Set)
11421	90116-06022	Bolt, Stud(For Valve Push Rod Cover)
11431	96411-43500	Plug, Tight, No.1
11431	96411-44000	Plug, Tight, No.1
11432	90344-52003	Plug, W/head Taper Screw, No.1
11432	90344-53006	Plug, Tight, No.1(For Timing Gear Cover)
11432	90344-53015	Plug, W/head Taper Screw, No.1
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11434	90250-06003	Pin, Straight
11434	90253-13017	Pin, Ring W/head
11452	11452-88360	Guide, Oil Level Gage
12101	12101-74050	Pan Sub-Assy, Oil
12101	90341-12012	Plug(For Oil Pan Drain)
12101	90341-12026	Plug, Drain
12101	90430-12027	Gasket(For Oil Pan Drain Plug)
12101	90430-12031	Gasket (For Oil Pan Drain Plug)
12121	12123-74040	Plate, Oil Pan Baffle, No.1
15301	15301-88362	Gage Sub-Assy, Oil Level
9011906684	90119-06684	New Genuine Part
9017906045	90179-06045	New Genuine Part
9161560614	91615-60614	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161560614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)

OEM	Part name	Category
11401-79307	Block Sub-Assy, Cylinder	Cylinder Block ([12.1987 - ] (8712- )3SFE)
11452-88360	Guide, Oil Level Gage	Cylinder Block ([12.1987 - ] (8712- )3SFE)
12101-74050	Pan Sub-Assy, Oil	Cylinder Block ([12.1987 - ] (8712- )3SFE)
12123-74040	Plate, Oil Pan Baffle, No.1	Cylinder Block ([12.1987 - ] (8712- )3SFE)
15301-88362	Gage Sub-Assy, Oil Level	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90105-10028	Bolt(For Crankshaft Bearing Cap Set)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90116-06022	Bolt, Stud(For Valve Push Rod Cover)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90119-06684	New Genuine Part	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90179-06045	New Genuine Part	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90250-06003	Pin, Straight	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90253-13017	Pin, Ring W/head	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90341-12012	Plug(For Oil Pan Drain)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90341-12026	Plug, Drain	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90344-52003	Plug, W/head Taper Screw, No.1	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90344-53006	Plug, Tight, No.1(For Timing Gear Cover)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90344-53015	Plug, W/head Taper Screw, No.1	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90430-12027	Gasket(For Oil Pan Drain Plug)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
90430-12031	Gasket (For Oil Pan Drain Plug)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
91615-60614	Screw Or Bolt(for Valve Rocker Shaft Lock)	Cylinder Block ([12.1987 - ] (8712- )3SFE)
96411-43500	Plug, Tight, No.1	Cylinder Block ([12.1987 - ] (8712- )3SFE)
96411-44000	Plug, Tight, No.1	Cylinder Block ([12.1987 - ] (8712- )3SFE)
