ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories
ST165 ×

← Back to categories

5,194 items

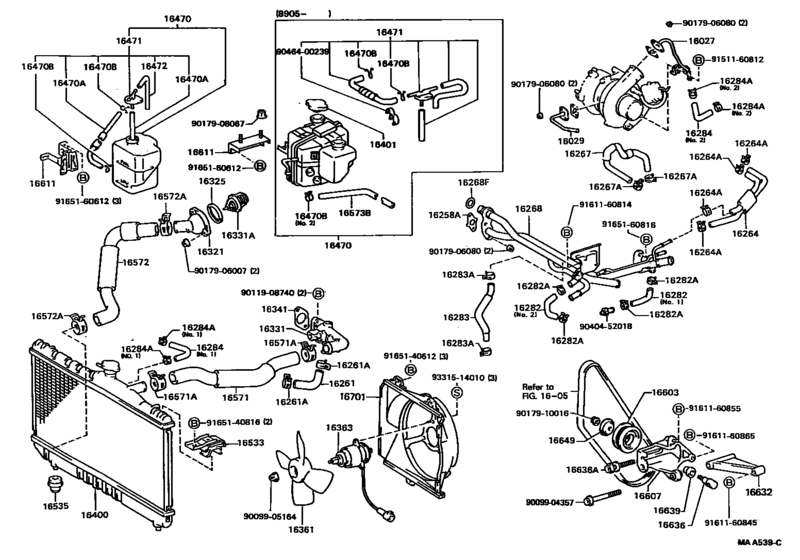

Radiator & Water Outlet ([10.1987 - ] (8710- )3SGTE) 94
#OEMPart name
16027 16027-88380 Pipe Sub-Assy, Turbo Water, No.1
16029 16029-88380 Pipe Sub-Assy, Turbo Water, No.3
16258 16258-88380 Gasket(For Heater Return)
16258 16258-74021 Gasket(For Heater Return)
16261 16261-88360 Hose, Water By-Pass
16261 90467-22003 Clip(For Ventilation Hose No.2)
16261 90467-21010 Clip(For Ventilation Hose No.2)
16264 16264-88381 Hose, Water By-Pass, No.2
16264 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 96135-51300 Clamp, Hose
16267 16267-88380 Hose, Water By-Pass, No.3
16267 16267-88381 Hose, Water By-Pass, No.3
16268 16268-88381 Pipe, Water By-Pass, No.1
16268 96761-24017 Ring, O(For Water By-Pass Pipe)
16282 16282-88380 Hose, Oil Cooler
16282 16295-88380 Hose, Water By-Pass, No.5
16282 90467-17005 Clamp Or Clip, Hose(For Oil Cooler Hose)
16282 90467-17013 Clamp Or Clip(For Water By-Pass Hose No.4)
16283 16283-88380 Hose, Water By-Pass, No.6
16284 16284-74010 Hose, Turbo Water, No.1
16284 16284-88380 Hose, Turbo Water, No.1
16284 90467-15004 Clip(For Ventilation Hose No.2)
16284 90467-15016 Clip Or Clamp(For Ventilation Hose)
16284 96135-41400 Clip(For Water By-Pass Hose No.1)
16321 16321-88380 Inlet, Water
16325 16325-63010 Gasket, Water Inlet Housing, No.1
16325 16325-63011 Gasket, Water Inlet Housing, No.1
16331 16304-88381 Outlet, Water
16331 90916-03060 Thermostat
16331 90916-03090 Thermostat
16341 16341-63010 Gasket, Cylinder Head Rear Cover
16341 16341-74020 Gasket, Water Outlet
16361 16361-63020 Fan
16361 16361-74070 Fan
16363 16363-16020 Motor, Cooling Fan
16400 16400-74170 Radiator Assy
16400 16400-74640 Radiator Assy
16400 16400-74171 Radiator Assy
16401 16401-63010 Cap Sub-Assy,
16401 16401-74170 Cap Sub-Assy, Radiator
16470 16470-74060 Tank Assy, Radiator Reserve
16470 16470-74170 Tank Assy, Radiator Reserve
16470 16470-74160 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-74050 Cap Sub-Assy, Reserve Tank
16471 16405-74150 Cap Sub-Assy, Reserve Tank
16471 16405-74140 Cap Sub-Assy, Reserve Tank
16472 85338-14030 Hose, Breather
16533 16533-74020 Support, Radiator, Upper
16535 16535-74020 Support, Radiator, Lower
16571 16571-74070 Hose, Radiator, Inlet
16571 90467-33002 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16572 16572-74070 Hose, Radiator, Outlet
16573 16573-74030 Hose, Radiator, No.3
16603 16603-88360 Pulley Sub-Assy, Idler, No.1
16607 16631-74020 Bracket Sub-Assy, Idler Pulley, No.1
16607 16631-74030 Bracket Sub-Assy, Idler Pulley, No.1
16611 16611-74010 Bracket(For Radiator Reserve Tank)
16611 16611-74100 Bracket, Radiator Reserve Tank
16632 16632-88360 Bracket Sub-Assy, Idler Pulley, No.2
16632 90560-08060 Bracket Sub-Assy, Idler Pulley, No.2
16636 16636-74020 Shaft, Idler Pully, No.1
16636 90109-08116 Bolt(For Idler Pully Tension)
16636 90109-08191 Bolt(For Idler Pully Tension)
16639 16639-88360 Spacer, Idler Pulley
16639 16639-88361 Spacer, Idler Pulley
16649 16649-88360 Plate, Idler Pulley Cover
16701 16711-74090 Shroud Sub-Assy, Fan
9009904357 90099-04357 New Genuine Part
9009905164 90099-05164 Nut
9011908740 90119-08740 New Genuine Part
9017906007 90179-06007 Nut
9017906080 90179-06080 NUT
9017908067 90179-08067 New Genuine Part
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9040452018 90404-52018 Union
9046400239 90464-00239 New Genuine Part
9151160812 91511-60812 BOLT
9151160812 91511-B0812 BOLT FLANGE
9161160814 91611-60814 Bolt
9161160845 91611-60845 Bolt(for Clutch Release Cylinder Setting)
9161160845 91611-B0845 Bolt(for Clutch Release Cylinder Setting)
9161160855 91611-60855 Bolt(For Rocker Support Set)
9161160865 91611-60865 Bolt(For Rocker Support Set)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140816 91651-40816 BOLT
9165160612 91651-60612 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9331514010 93315-14010 SCREW
