Search › Model › ST165

ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories

5,194 items

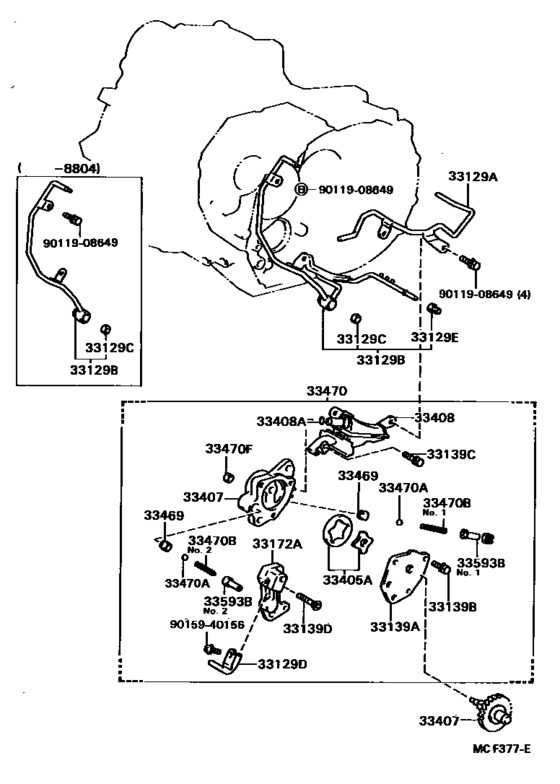

Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F) 44

#	OEM	Part name
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
33129	33129-20050	Pipe, Manual Transmission Oil, No.1
33129	33106-20031	Pipe, Manual Transmission Oil, No.2
33129	33106-20040	Pipe, Manual Transmission Oil, No.2
33129	33106-33010	Pipe, Manual Transmission Oil, No.2
33129	90430-09004	Gasket(For Manual Transmission Oil Pipe)
33129	33129-20040	Pipe, Transmission Oil, No.3
33129	90389-05012	Bush(For Manual Transmission Oil Pipe)
33139	33139-20020	Cover, Oil Pump(For Manual Transmission)
33139	90119-06199	Bolt(For Manual Transmission Oil Pump Cover)
33139	90119-06268	Bolt(For Transmission Oil Pump Cover)
33139	90149-60064	Screw(For Transmission Oil Pump Cover)
33172	33172-20020	By-Pass, Transmission Oil Pump
33405	33405-20010	Rotor Sub-Assy, Manual Transmission Oil Pump
33405	33405-20020	Rotor Sub-Assy, Manual Transmission Oil Pump
33407	33407-12011	Gear Sub-Assy, Manual Transmission Oil Pump Drive
33408	33408-20020	Strainer Sub-Assy, Manual Transmission Oil
33408	33408-20021	Strainer Sub-Assy, Manual Transmission Oil
33408	96721-19012	Ring, O (For Manual Transmission Oil Strainer)
33409	90407-16014	Elbow (For Manual Transmission Oil Cooler Tube)
33409	90407-16017	Elbow (For Manual Transmission Oil Cooler Tube)
33409	90301-10189	Ring, O(For Oil Cooler Tube Union)
33409	90301-11006	O Ring, Transaxle Case Elbow
33409	33409-20010	Tube Sub-Assy, Transmission Oil Cooler, No.2
33409	33409-20011	Tube Sub-Assy, Transmission Oil Cooler, No.2
33409	33409-20031	Tube Sub-Assy, Transmission Oil Cooler, No.3
33469	33469-20020	Seat, Relief Valve (For Manual Transmission Oil Pump)
33470	33470-20020	Pump Assy, Manual Transmission Oil
33470	33470-20031	Pump Assy, Manual Transmission Oil
33470	33470-20021	Pump Assy, Manual Transmission Oil
33470	90360-09001	Ball (For Manual Transmission Oil Pump)
33470	90501-07062	Spring, Compression (For Manual Transmission Oil Pump)
33470	90501-08094	Spring, Compression (For Manual Transmission Oil Pump)
33490	33490-20011	Cooler Assy, Manual Transmission Oil
33490	90404-16023	Union(For Oil Cooler Tube)
33491	90462-16066	Clamp, Manual Transmission Oil Cooler Tube, No.1
33495	33495-20010	Clamp, Manual Transmission Oil Cooler Tube, No.2
33593	33593-20020	Holder, Spring (For Manual Transmission Oil Pump)
33593	33593-20030	Holder, Spring (For Manual Transmission Oil Pump)
9011908649	90119-08649	Bolt(For Intake Manifold To Exhaust Manifold)
9011908649	91611-60822	Bolt
9015940156	90159-40156	New Genuine Part
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt

OEM	Part name	Category
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33106-20031	Pipe, Manual Transmission Oil, No.2	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33106-20040	Pipe, Manual Transmission Oil, No.2	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33106-33010	Pipe, Manual Transmission Oil, No.2	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33129-20040	Pipe, Transmission Oil, No.3	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33129-20050	Pipe, Manual Transmission Oil, No.1	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33139-20020	Cover, Oil Pump(For Manual Transmission)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33172-20020	By-Pass, Transmission Oil Pump	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33405-20010	Rotor Sub-Assy, Manual Transmission Oil Pump	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33405-20020	Rotor Sub-Assy, Manual Transmission Oil Pump	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33407-12011	Gear Sub-Assy, Manual Transmission Oil Pump Drive	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33408-20020	Strainer Sub-Assy, Manual Transmission Oil	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33408-20021	Strainer Sub-Assy, Manual Transmission Oil	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33409-20010	Tube Sub-Assy, Transmission Oil Cooler, No.2	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33409-20011	Tube Sub-Assy, Transmission Oil Cooler, No.2	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33409-20031	Tube Sub-Assy, Transmission Oil Cooler, No.3	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33469-20020	Seat, Relief Valve (For Manual Transmission Oil Pump)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33470-20020	Pump Assy, Manual Transmission Oil	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33470-20021	Pump Assy, Manual Transmission Oil	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33470-20031	Pump Assy, Manual Transmission Oil	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33490-20011	Cooler Assy, Manual Transmission Oil	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33495-20010	Clamp, Manual Transmission Oil Cooler Tube, No.2	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33593-20020	Holder, Spring (For Manual Transmission Oil Pump)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
33593-20030	Holder, Spring (For Manual Transmission Oil Pump)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90119-06199	Bolt(For Manual Transmission Oil Pump Cover)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90119-06268	Bolt(For Transmission Oil Pump Cover)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90119-08649	Bolt(For Intake Manifold To Exhaust Manifold)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90149-60064	Screw(For Transmission Oil Pump Cover)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90159-40156	New Genuine Part	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90301-11006	O Ring, Transaxle Case Elbow	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90360-09001	Ball (For Manual Transmission Oil Pump)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90389-05012	Bush(For Manual Transmission Oil Pipe)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90404-16023	Union(For Oil Cooler Tube)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90407-16014	Elbow (For Manual Transmission Oil Cooler Tube)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90407-16017	Elbow (For Manual Transmission Oil Cooler Tube)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90430-09004	Gasket(For Manual Transmission Oil Pipe)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90462-16066	Clamp, Manual Transmission Oil Cooler Tube, No.1	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90501-07062	Spring, Compression (For Manual Transmission Oil Pump)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
90501-08094	Spring, Compression (For Manual Transmission Oil Pump)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
91611-60822	Bolt	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
91611-B0812	Bolt	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
96721-19012	Ring, O (For Manual Transmission Oil Strainer)	Oil Pump, Oil Cooler & Pipe (Mtm) ([10.1987 - ] E50F2 (8710- )5F)
