Search › Model › ST165

ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories

5,194 items

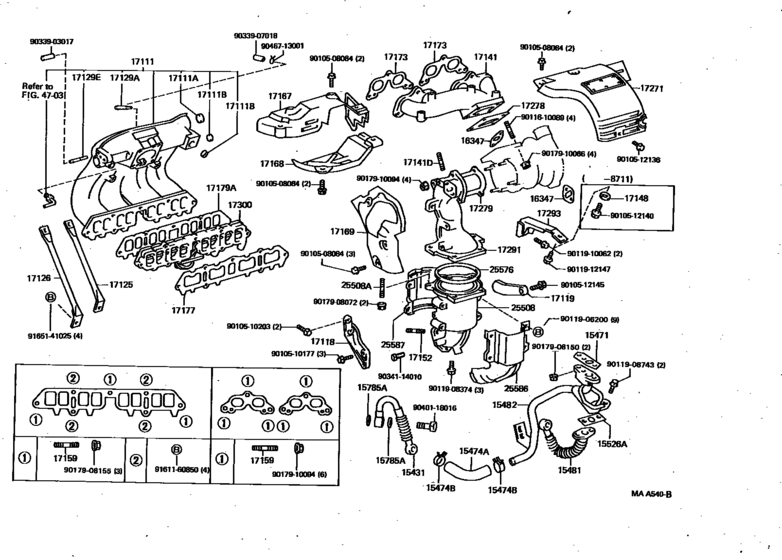

Manifold ([10.1987 - ] (8710- )3SGTE) 81

#	OEM	Part name
4175	04175-74010	Gasket Kit, Turbocharger
15431	15431-88380	Pipe, Oil Feed
15471	15471-88341	Gasket, Turbo Oil Inlet
15474	15491-88380	Hose, Turbo Oil Outlet
15474	90467-28003	Clamp Or Clip(For Turbo Oil Outlet Hose)
15474	90467-28007	Clip Or Clamp(For Ventilation Hose)
15481	15481-88380	Pipe, Turbo Oil, No.1
15482	15482-88380	Pipe, Turbo Oil, No.2
15526	15526-88380	Gasket, Joint(For Turbo Oil Pipe)
15785	15785-88380	Gasket(For Oil Cooler)
16347	16347-88340	Gasket, Water By-Pass
17021	90116-08158	Bolt, Stud(For Bearing Housing)
17025	90116-10125	Bolt, Stud(For Turbine Housing)
17111	17101-88383	Manifold, Intake
17111	96411-43000	Plug, Tight, No.1
17111	96411-41400	Plug, Tight, No.5(For Cylinder Block)
17111	17101-88381	Manifold, Intake
17118	17118-88381	Stay, Manifold
17119	17139-88380	Stay, Manifold, No.2
17125	17125-88380	Stay, Surge Tank, No.1
17126	17126-88381	Stay, Surge Tank, No.2
17129	90072-40625	Union(For Cylinder Head)
17129	90405-04002	Union, Vacuum Hose
17141	17141-88380	Manifold, Exhaust
17141	90116-08128	Bolt, Stud(For Manifold Stay)
17148	17148-88380	Plate, Exhaust Manifold(For Egr Inlet)
17148	90119-12207	Plate, Exhaust Manifold(for Egr Inlet)
17152	90116-10058	Bolt, Stud(For Manifold Extension)
17159	90116-08186	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10113	Bolt, Stud(For Manifold To Cylinder Head)
17167	17167-88380	Insulator, Exhaust Manifold Heat, No.1
17168	17168-88380	Insulator, Exhaust Manifold Heat, No.2
17169	17169-88380	Insulator, Exhaust Manifold Heat, No.3
17173	17173-88380	Gasket, Exhaust Manifold To Head
17177	17177-88380	Gasket, Intake Manifold To Head, No.1
17179	17171-88380	Gasket, Intake Manifold, No.2
17201	17201-74010	Turbocharger Sub-Assy
17271	17271-88380	Insulator, Turbo, No.1
17278	17278-88380	Gasket, Turbo To Exhaust Manifold
17279	17279-88380	Gasket, Turbine Outlet Elbow
17291	17291-88380	Elbow, Turbine Outlet
17293	17293-88380	Stay, Turbocharger
17294	17294-28010	Hose, Actuator
17294	96132-30600	Clip(For Actuator Hose)
17294	96132-51100	Clip (For Hose)
17294	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
17300	17300-88380	Valve Assy, Intake Air Control
17300	17300-88381	Valve Assy, Intake Air Control
25508	25508-74041	Converter Sub-Assy, Manifold
25508	90116-08171	Bolt, Stud(For Manifold Converter)
25576	25576-74010	Gasket, Manifold Converter
25576	25576-74030	Gasket, Manifold Converter
25586	25586-74020	Insulator, Manifold Converter, No.1
25587	25587-74020	Insulator, Manifold Converter, No.2
9010508084	90105-08084	Bolt
9010510177	90105-10177	New Genuine Part
9010510203	90105-10203	New Genuine Part
9010512136	90105-12136	New Genuine Part
9010512140	90105-12140	Plate, Exhaust Manifold(for Egr Inlet)
9010512145	90105-12145	New Genuine Part
9011610089	90116-10089	Bolt, Stud(For Turbocharger)
9011906200	90119-06200	New Genuine Part
9011908374	90119-08374	Bolt
9011908743	90119-08743	New Genuine Part
9011910062	90119-10062	New Genuine Part
9011910062	90119-10640	New Genuine Part
9011912147	90119-12147	Plate, Exhaust Manifold(for Egr Inlet)
9017908072	90179-08072	Nut(For Front Lower Arm Bracket Rh)
9017908150	90179-08150	NUT
9017908155	90179-08155	New Genuine Part
9017910066	90179-10066	NUT
9017910094	90179-10094	NUT
9033903017	90339-03017	Plug
9033907018	90339-07018	New Genuine Part
9034114010	90341-14010	New Genuine Part
9040118016	90401-18016	New Genuine Part
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001	96135-51300	Clamp, Hose
9161160850	91611-60850	Bolt(For Rocker Support Set)
9165141025	91651-41025	Bolt(For Transaxle Case & Engine Setting)
9165141025	91651-61025	Bolt with washer

OEM	Part name	Category
04175-74010	Gasket Kit, Turbocharger	Manifold ([10.1987 - ] (8710- )3SGTE)
15431-88380	Pipe, Oil Feed	Manifold ([10.1987 - ] (8710- )3SGTE)
15471-88341	Gasket, Turbo Oil Inlet	Manifold ([10.1987 - ] (8710- )3SGTE)
15481-88380	Pipe, Turbo Oil, No.1	Manifold ([10.1987 - ] (8710- )3SGTE)
15482-88380	Pipe, Turbo Oil, No.2	Manifold ([10.1987 - ] (8710- )3SGTE)
15491-88380	Hose, Turbo Oil Outlet	Manifold ([10.1987 - ] (8710- )3SGTE)
15526-88380	Gasket, Joint(For Turbo Oil Pipe)	Manifold ([10.1987 - ] (8710- )3SGTE)
15785-88380	Gasket(For Oil Cooler)	Manifold ([10.1987 - ] (8710- )3SGTE)
16347-88340	Gasket, Water By-Pass	Manifold ([10.1987 - ] (8710- )3SGTE)
17101-88381	Manifold, Intake	Manifold ([10.1987 - ] (8710- )3SGTE)
17101-88383	Manifold, Intake	Manifold ([10.1987 - ] (8710- )3SGTE)
17118-88381	Stay, Manifold	Manifold ([10.1987 - ] (8710- )3SGTE)
17125-88380	Stay, Surge Tank, No.1	Manifold ([10.1987 - ] (8710- )3SGTE)
17126-88381	Stay, Surge Tank, No.2	Manifold ([10.1987 - ] (8710- )3SGTE)
17139-88380	Stay, Manifold, No.2	Manifold ([10.1987 - ] (8710- )3SGTE)
17141-88380	Manifold, Exhaust	Manifold ([10.1987 - ] (8710- )3SGTE)
17148-88380	Plate, Exhaust Manifold(For Egr Inlet)	Manifold ([10.1987 - ] (8710- )3SGTE)
17167-88380	Insulator, Exhaust Manifold Heat, No.1	Manifold ([10.1987 - ] (8710- )3SGTE)
17168-88380	Insulator, Exhaust Manifold Heat, No.2	Manifold ([10.1987 - ] (8710- )3SGTE)
17169-88380	Insulator, Exhaust Manifold Heat, No.3	Manifold ([10.1987 - ] (8710- )3SGTE)
17171-88380	Gasket, Intake Manifold, No.2	Manifold ([10.1987 - ] (8710- )3SGTE)
17173-88380	Gasket, Exhaust Manifold To Head	Manifold ([10.1987 - ] (8710- )3SGTE)
17177-88380	Gasket, Intake Manifold To Head, No.1	Manifold ([10.1987 - ] (8710- )3SGTE)
17201-74010	Turbocharger Sub-Assy	Manifold ([10.1987 - ] (8710- )3SGTE)
17271-88380	Insulator, Turbo, No.1	Manifold ([10.1987 - ] (8710- )3SGTE)
17278-88380	Gasket, Turbo To Exhaust Manifold	Manifold ([10.1987 - ] (8710- )3SGTE)
17279-88380	Gasket, Turbine Outlet Elbow	Manifold ([10.1987 - ] (8710- )3SGTE)
17291-88380	Elbow, Turbine Outlet	Manifold ([10.1987 - ] (8710- )3SGTE)
17293-88380	Stay, Turbocharger	Manifold ([10.1987 - ] (8710- )3SGTE)
17294-28010	Hose, Actuator	Manifold ([10.1987 - ] (8710- )3SGTE)
17300-88380	Valve Assy, Intake Air Control	Manifold ([10.1987 - ] (8710- )3SGTE)
17300-88381	Valve Assy, Intake Air Control	Manifold ([10.1987 - ] (8710- )3SGTE)
25508-74041	Converter Sub-Assy, Manifold	Manifold ([10.1987 - ] (8710- )3SGTE)
25576-74010	Gasket, Manifold Converter	Manifold ([10.1987 - ] (8710- )3SGTE)
25576-74030	Gasket, Manifold Converter	Manifold ([10.1987 - ] (8710- )3SGTE)
25586-74020	Insulator, Manifold Converter, No.1	Manifold ([10.1987 - ] (8710- )3SGTE)
25587-74020	Insulator, Manifold Converter, No.2	Manifold ([10.1987 - ] (8710- )3SGTE)
90072-40625	Union(For Cylinder Head)	Manifold ([10.1987 - ] (8710- )3SGTE)
90105-08084	Bolt	Manifold ([10.1987 - ] (8710- )3SGTE)
90105-10177	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90105-10203	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90105-12136	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90105-12140	Plate, Exhaust Manifold(for Egr Inlet)	Manifold ([10.1987 - ] (8710- )3SGTE)
90105-12145	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-08128	Bolt, Stud(For Manifold Stay)	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-08158	Bolt, Stud(For Bearing Housing)	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-08171	Bolt, Stud(For Manifold Converter)	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-08186	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-10058	Bolt, Stud(For Manifold Extension)	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-10089	Bolt, Stud(For Turbocharger)	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-10113	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([10.1987 - ] (8710- )3SGTE)
90116-10125	Bolt, Stud(For Turbine Housing)	Manifold ([10.1987 - ] (8710- )3SGTE)
90119-06200	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90119-08374	Bolt	Manifold ([10.1987 - ] (8710- )3SGTE)
90119-08743	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90119-10062	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90119-10640	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90119-12147	Plate, Exhaust Manifold(for Egr Inlet)	Manifold ([10.1987 - ] (8710- )3SGTE)
90119-12207	Plate, Exhaust Manifold(for Egr Inlet)	Manifold ([10.1987 - ] (8710- )3SGTE)
90179-08072	Nut(For Front Lower Arm Bracket Rh)	Manifold ([10.1987 - ] (8710- )3SGTE)
90179-08150	NUT	Manifold ([10.1987 - ] (8710- )3SGTE)
90179-08155	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90179-10066	NUT	Manifold ([10.1987 - ] (8710- )3SGTE)
90179-10094	NUT	Manifold ([10.1987 - ] (8710- )3SGTE)
90339-03017	Plug	Manifold ([10.1987 - ] (8710- )3SGTE)
90339-07018	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90341-14010	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90401-18016	New Genuine Part	Manifold ([10.1987 - ] (8710- )3SGTE)
90405-04002	Union, Vacuum Hose	Manifold ([10.1987 - ] (8710- )3SGTE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Manifold ([10.1987 - ] (8710- )3SGTE)
90467-28003	Clamp Or Clip(For Turbo Oil Outlet Hose)	Manifold ([10.1987 - ] (8710- )3SGTE)
90467-28007	Clip Or Clamp(For Ventilation Hose)	Manifold ([10.1987 - ] (8710- )3SGTE)
91611-60850	Bolt(For Rocker Support Set)	Manifold ([10.1987 - ] (8710- )3SGTE)
91651-41025	Bolt(For Transaxle Case & Engine Setting)	Manifold ([10.1987 - ] (8710- )3SGTE)
91651-61025	Bolt with washer	Manifold ([10.1987 - ] (8710- )3SGTE)
96132-30600	Clip(For Actuator Hose)	Manifold ([10.1987 - ] (8710- )3SGTE)
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Manifold ([10.1987 - ] (8710- )3SGTE)
96132-51100	Clip (For Hose)	Manifold ([10.1987 - ] (8710- )3SGTE)
96135-51300	Clamp, Hose	Manifold ([10.1987 - ] (8710- )3SGTE)
96411-41400	Plug, Tight, No.5(For Cylinder Block)	Manifold ([10.1987 - ] (8710- )3SGTE)
96411-43000	Plug, Tight, No.1	Manifold ([10.1987 - ] (8710- )3SGTE)
