ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories
ST165 ×

← Back to categories

5,194 items

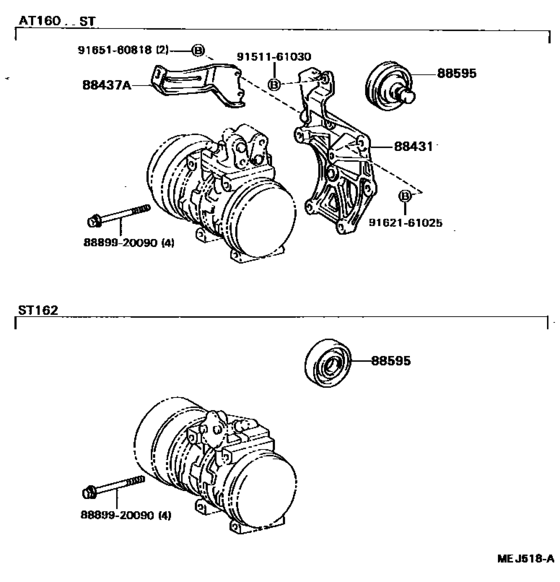

Heating & Air Conditioning - Compressor ([08.1987 - ] (8708- )) 23
#OEMPart name
88301 88412-20090 Rotor Sub-Assy, Magnet Clutch
88301 88412-33050 Rotor Sub-Assy, Magnet Clutch
88301 90099-07125 Ring, Snap
88302 88411-20150 Stator Sub-Assy, Magnet Clutch
88302 88411-20200 Stator Sub-Assy, Magnet Clutch
88320 88320-20590 Compressor Assy, Cooler
88320 88320-20591 Compressor Assy, Cooler
88330 88335-14020 Washer
88330 90099-07114 Ring, Snap (For Magnet Clutch)
88356 88356-12010 Plate, Caution
88403 88403-16011 Hub Sub-Assy, Magnet Clutch
88410 88410-20200 Clutch Assy, Magnet
88595 88440-20110 Pulley Assy, Idle
88595 88440-20120 Pulley Assy, Idle
8846932020 88469-32020 Switch, Pressure Control
8889920090 88899-20090 Cover, Evaporator
9009904349 90099-04349 Bolt, Magnet Clutch Setting
9151161030 91511-61030 Bolt (For Transaxle Case Upper Cover)
9151161030 91512-61030 Bolt (For Transaxle Case Upper Cover)
9162161025 91621-61025 New Genuine Part
9165160818 91651-60818 BOLTWWASHER
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
