ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories
ST165 ×

← Back to categories

5,194 items

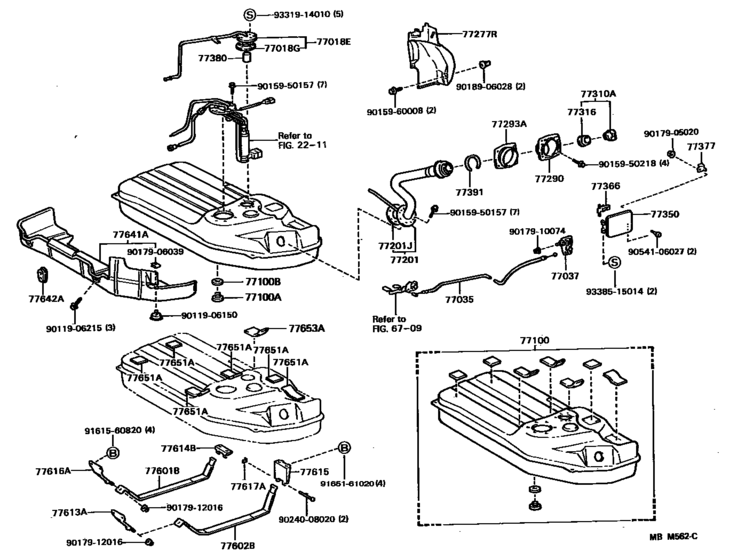

Fuel Tank & Tube ([10.1987 - ] (8710- )ST165) 99
#OEMPart name
77018 77018-20070 Tube Sub-Assy, Fuel Tank Evaporation Vent
77018 77018-20130 Tube Sub-Assy, Fuel Tank Evaporation Vent
77018 77179-16010 Gasket, Fuel Tank Evap/vent Tube
77035 77035-20160 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-20300 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-20140 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-14090 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-12040 Lock Sub-Assy, Fuel Tank Cap
77037 77037-38010 Lock Sub-Assy, Fuel Tank Cap
77100 77001-29266 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77201 77201-20240 Pipe Sub-Assy, Fuel Tank Inlet
77201 77169-14010 Gasket, Fuel Pump Bracket
77251 77251-20390 Tube, Fuel Main
77254 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95337-06020 Hose, Differential Pressure Control
77255 77255-20371 Tube, Fuel Return
77261 77261-20110 Tube, Fuel Emission, No.1
77261 77259-20060 Hose, Fuel, No.1 (For Emission Tube, No.1)
77261 77261-20100 Tube, Fuel Tank To Canister
77261 77259-20070 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266 77266-20080 Protector, Fuel Tube, No.1
77267 77267-20040 Protector, Fuel Tube, No.1
77273 77273-20020 Clamp, Fuel Tube W/grommet, No.6
77277 77277-20130 Protector, Fuel Tank Filler Pipe
77277 23271-74190 Hose, Fuel, No.1(For Return Tube, No.1)
77277 23271-74200 Hose, Fuel, No.1(For Return Tube, No.1)
77277 90447-12081 Hose, Fuel
77284 77284-20050 Protector, Fuel Tube, No.3
77285 77285-20050 Clamp, Fuel Tube W/grommet, No.1
77286 77286-20030 Clamp, Fuel Tube W/grommet, No.2
77289 77289-20010 Clamp, Fuel Tube W/grommet, No.3
77290 77290-20060 Shield Assy, Fuel Tank Filler Pipe
77293 77293-20020 Shield, Fuel Tank Filler Pipe, No.3
77295 77295-20010 Grommet, Fuel Tube
77298 77298-20020 Clamp, Fuel Tube W/grommet, No.4
77299 77299-20020 Clamp, Fuel Tube W/grommet, No.5
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-20090 Lid Assy, Fuel Filler Opening
77366 77360-20010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-20030 Retainer, Fuel Filler Opening Lid Lock
77380 77380-14020 Valve Assy, Fuel Cut Off
77391 77391-16011 Ring, Fuel Inlet Box
77391 77391-32010 Ring, Fuel Inlet Box
77466 77466-20010 Protector, Fuel Tube, No.4
77601 77601-20110 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-20130 Band Sub-Assy, Fuel Tank, No.1 Lh
77613 77613-20080 Bracket, Fuel Tank Band, No.1
77614 77614-20070 Bracket, Fuel Tank Band, No.2
77615 77615-20050 Bracket, Fuel Tank Band, No.3
77616 77616-20040 Bracket, Fuel Tank Band, No.4
77617 77617-12010 Union, Auxiliary Fuel Band
77641 77641-20050 Protector, Fuel Tank, No.1
77642 77642-20020 Protector, Fuel Tank, No.2
77651 77651-20060 Cushion, Fuel Tank, No.1
77651 77652-20090 Cushion, Fuel Tank, No.1
77653 77653-20040 Cushion, Fuel Tank, No.3
77740 77740-20210 Canister Assy, Charcoal
77740 77264-20040 Tube, Fuel, No.1(For Charcoal Canister)
8271122220 82711-22220 Clamp (For Speedometer Cable)
9011906110 90119-06110 New Genuine Part
9011906110 90119-06442 BOLT WWASHER
9011906150 90119-06150 New Genuine Part
9011906150 90109-06165 New Genuine Part
9011906215 90119-06215 New Genuine Part
9011906215 90119-06407 New Genuine Part
9011906374 90119-06374 BOLT
9011906374 91653-A0614 BOLT WWASHER
9011966374 90119-66374 New Genuine Part
9015950157 90159-50157 SCREW WWASHER
9015950218 90159-50218 New Genuine Part
9015950218 90159-50278 New Genuine Part
9015960008 90159-60008 SCREW
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017906039 90179-06039 New Genuine Part
9017910074 90179-10074 New Genuine Part
9017912016 90179-12016 NUT
9018906028 90189-06028 CLIP
9024008020 90240-08020 Pin (For Fuel Tank Band)
9046106055 90461-06055 Clamp, Brake Tube, No.1
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712011 90467-12011 Clip(For Actuator Hose)
9046712011 96132-51100 Clip (For Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9048017002 90480-17002 New Genuine Part
9054106027 90541-06027 Cushion(For Fuel Inlet Box Cover)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9161560820 91615-60820 Bolt (For Transmission Control Cable Bracket)
9161560820 91611-B0816 Bolt
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9331914010 93319-14010 SCREW
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9613230600 96132-30600 Clip(For Actuator Hose)
