Search › Model › ST165

ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories

5,194 items

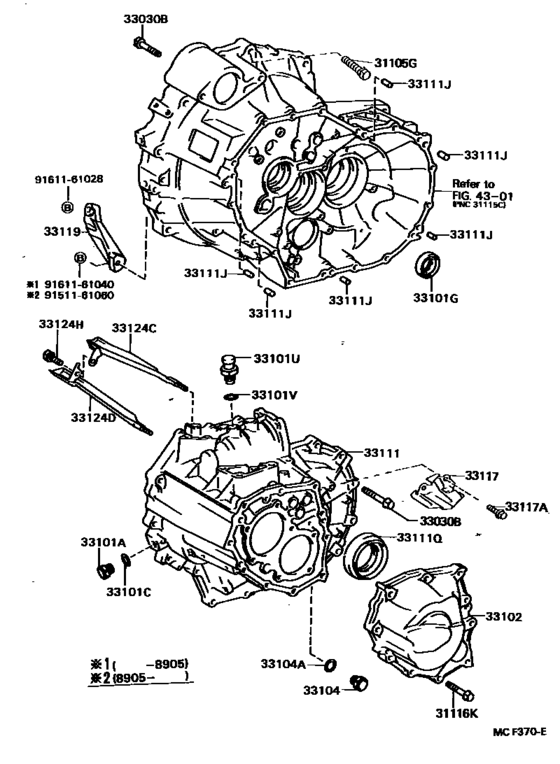

Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165) 45

#	OEM	Part name
31105	90105-08040	Bolt(For Plate Bolt Lock)
31105	91641-H0820	Bolt
31105	90105-10077	Bolt(For Transaxle Case Protector)
31105	90119-12168	Bolt(For Transaxle & Engine Setting)
31116	90105-08089	Bolt, Washer Based Head Hexagon
31116	90105-08273	Bolt, W/washer(For Transmission Case Cover)
33030	90105-08126	Bolt(For Transaxle Case & Transmission Case Setting)
33101	90341-18033	Plug(For Manual Transmission Filler)
33101	90430-18008	Gasket
33101	90430-T0021	Gasket(For Manual Transmission Filler Plug)
33101	90311-30006	Seal, Oil, No.1(For Front Transaxle Case)
33101	90311-30017	Seal, Oil, No.1(For Front Transaxle Case)
33101	90930-03111	Plug, Breather(For Manual Transmission)
33101	90930-03148	Plug, Breather(For Manual Transmission)
33102	33102-20040	Cover Sub-Assy, Manual Transmission Case
33102	33102-33012	Cover Sub-Assy, Manual Transmission Case
33104	90341-18006	Plug (No magnet)
33111	33101-20030	Case, Manual Transmission
33111	91512-B1016	New Genuine Part
33111	90560-10019	Spacer(For Pump Bracket, Front)
33111	33250-28052	Shaft Assy, Shift & Select Lever
33111	33261-12070	Shaft, 5th Shift Arm
33111	90364-15003	Bearing, Needle Roller (For Shift & Select Lever Shaft)
33111	90384-15002	Bush, Bimetal Formed(For Outer Select Lever)
33111	33101-33020	Case, Manual Transmission
33111	33250-28010	Shaft Assy, Shift & Select Lever
33111	33290-33020	Ball Assy, Lock, No.1
33111	33506-20320	Cover, Control Shaft
33111	33101-20040	Case, Manual Transmission
33111	90250-08054	Pin, Straight
33111	90311-50010	Seal, Oil(For Transmission Case)
33111	90311-50027	Oil Seal, Front Drive Shaft, Lh
33117	33117-20020	Protector, Manual Transmission Case
33119	33119-20080	Plate, Stiffener, Lh(Mtm)
33119	33119-20090	Plate, Stiffener, Lh(Mtm)
33124	33124-20020	Pipe, Oil Receiver, No.1(Mtm)
33124	33124-20030	Pipe, Oil Receiver, No.1(Mtm)
33124	90119-08648	Bolt(For Oil Receiver Pipe)
33124	90119-08830	Bolt(For Oil Receiver Pipe)
9151161060	91511-61060	Bolt(For Transaxle Case & Engine Setting)
9151161060	91512-61060	Bolt(For Transaxle Case & Engine Setting)
9161161028	91611-61028	Bolt(For Transaxle Case & Engine Setting)
9161161028	91612-61028	Bolt(For Transaxle Case & Engine Setting)
9161161040	91611-61040	Bolt(For Transaxle Case & Engine Setting)
9161161040	91612-61040	Bolt(For Transmission Case & Engine Setting)

OEM	Part name	Category
33101-20030	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33101-20040	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33101-33020	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33102-20040	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33102-33012	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33117-20020	Protector, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33119-20080	Plate, Stiffener, Lh(Mtm)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33119-20090	Plate, Stiffener, Lh(Mtm)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33124-20020	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33124-20030	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33250-28010	Shaft Assy, Shift & Select Lever	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33250-28052	Shaft Assy, Shift & Select Lever	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33261-12070	Shaft, 5th Shift Arm	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33290-33020	Ball Assy, Lock, No.1	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
33506-20320	Cover, Control Shaft	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90105-08040	Bolt(For Plate Bolt Lock)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90105-08089	Bolt, Washer Based Head Hexagon	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90105-08126	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90105-08273	Bolt, W/washer(For Transmission Case Cover)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90105-10077	Bolt(For Transaxle Case Protector)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90119-08648	Bolt(For Oil Receiver Pipe)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90119-08830	Bolt(For Oil Receiver Pipe)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90119-12168	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90250-08054	Pin, Straight	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90311-30006	Seal, Oil, No.1(For Front Transaxle Case)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90311-30017	Seal, Oil, No.1(For Front Transaxle Case)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90311-50010	Seal, Oil(For Transmission Case)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90311-50027	Oil Seal, Front Drive Shaft, Lh	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90364-15003	Bearing, Needle Roller (For Shift & Select Lever Shaft)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90384-15002	Bush, Bimetal Formed(For Outer Select Lever)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90430-18008	Gasket	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90560-10019	Spacer(For Pump Bracket, Front)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90930-03111	Plug, Breather(For Manual Transmission)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
90930-03148	Plug, Breather(For Manual Transmission)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91511-61060	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91512-61060	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91512-B1016	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91611-61028	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91611-61040	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91612-61040	Bolt(For Transmission Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
91641-H0820	Bolt	Clutch Housing & Transmission Case (Mtm) ([10.1987 - ] E50F2 (8710- )ST165)
