Search › Model › ST165

ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories

5,194 items

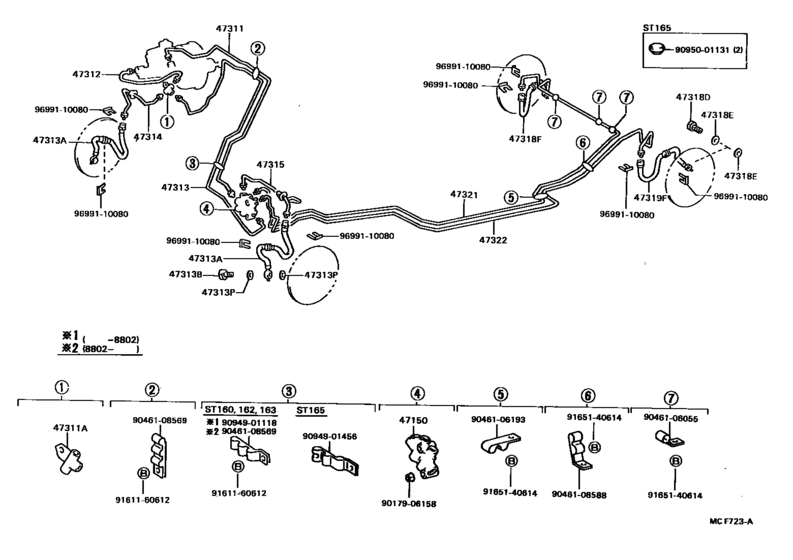

Brake Tube & Clamp ([08.1987 - ] (8708- )RHD) 37

#	OEM	Part name
47150	47150-32060	Valve Assy, Proportioning
47311	47311-20470	Tube, Front Brake, No.1
47311	47311-20630	Tube, Front Brake, No.1
47311	47311-20631	Tube, Front Brake, No.1
47311	90413-10208	Way(For Front Brake Tube)
47312	47312-20170	Tube, Front Brake, No.2
47313	47313-20280	Tube, Front Brake, No.3
47313	47313-20281	Tube, Front Brake, No.3
47313	47313-20290	Tube, Front Brake, No.3
47313	90947-02550	Hose, Flexible, No.1(For Front)
47313	90947-02940	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-20210	Tube, Front Brake, No.4
47314	47314-20220	Tube, Front Brake, No.4
47315	47315-20320	Tube, Front Brake, No.5
47315	47315-20360	Tube, Front Brake, No.5
47318	90947-02549	Hose, Flexible(For Rear Rh)
47318	90947-02503	Hose, Flexible(For Rear Rh)
47321	47321-20160	Tube, Rear Brake, No.1
47321	47322-20270	Tube, Rear Brake, No.1
47322	47321-20140	Tube, Rear Brake, No.1
47322	47322-20280	Tube, Rear Brake, No.2
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9046106055	90461-06055	Clamp, Brake Tube, No.1
9046106193	90461-06193	New Genuine Part
9046108569	90461-08569	New Genuine Part
9046108588	90461-08588	New Genuine Part
9094901118	90949-01118	New Genuine Part
9094901118	90949-01072	New Genuine Part
9094901456	90949-01456	New Genuine Part
9095001131	90950-01131	PLUG HOLE
9095001131	90950-01865	PLUG HOLE
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9165140614	91651-40614	Bolt
9699110080	96991-10080	CLIP

OEM	Part name	Category
47150-32060	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47311-20470	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47311-20630	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47311-20631	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47312-20170	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47313-20280	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47313-20281	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47313-20290	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47314-20210	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47314-20220	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47315-20320	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47315-20360	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47321-20140	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47321-20160	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47322-20270	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
47322-20280	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90413-10208	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90461-06055	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90461-06193	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90461-08569	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90461-08588	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90947-02503	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90947-02549	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90947-02550	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90947-02940	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90949-01072	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90949-01118	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90949-01456	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90950-01131	PLUG HOLE	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
90950-01865	PLUG HOLE	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
91611-G0612	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
91651-40614	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)
96991-10080	CLIP	Brake Tube & Clamp ([08.1987 - ] (8708- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 179
Collected: 2026-08-02
