Search › Model › ST165

ST165

Toyota CELICA · 1986 · 5,194 parts · 179 categories

5,194 items

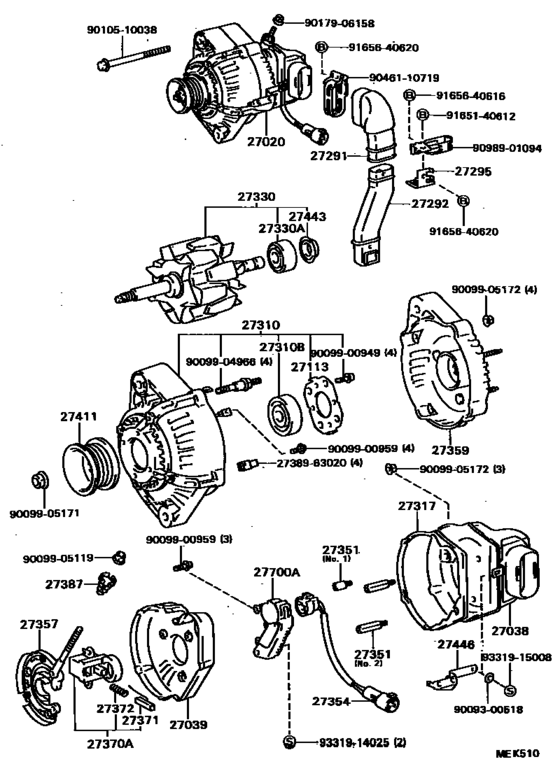

Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE) 51

#	OEM	Part name
27020	27060-74010	Alternator Assy
27038	27038-74010	Duct Sub-Assy, Alternator Air
27039	27039-72010	Cover, Alternator Rear End
27039	27039-15171	Cover, Alternator Rear End
27113	27312-72100	Plate, Bearing Retainer, Alternator
27291	27291-74010	Duct, Alternator, No.1
27292	27292-74010	Duct, Alternator, No.2
27295	27295-74010	Bracket, Alternator Duct
27310	27310-63021	Frame Assy, Drive End, Alternator
27310	90099-10159	Bearing(For Alternator Drive End Frame)
27310	90099-10199	Bearing(For Alternator Drive End Frame)
27317	27317-74010	Packing, Cover, Rear End
27330	27330-72101	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27351	27351-16130	Bush(For Alternator Rectifier End Frame)
27351	27351-74010	Bush(For Alternator Rectifier End Frame)
27354	27037-74010	Wire Sub-Assy, Alternator Lead
27357	27357-63020	Holder, Alternator, W/rectifier
27359	27359-63081	Frame, Alternator Rectifier End
27370	27370-63021	Holder Assy, Alternator Brush
27370	27370-35060	Holder Assy, Alternator Brush
27371	27371-63020	Brush, Alternator
27371	27371-70300	Brush, Alternator
27372	27372-72100	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27387	27387-70170	Insulator, Terminal
27411	27411-16180	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27446	27446-74010	Clip, Alternator Cord
27700	27700-63021	Regulator Assy, Generator
27700	27700-70030	Regulator Assy, Generator
2738963020	27389-63020	Insulator, Terminal
9009300518	90093-00518	New Genuine Part
9009900949	90099-00949	New Genuine Part
9009900959	90099-00959	New Genuine Part
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9010510038	90105-10038	Bolt(For Alternator)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9046110719	90461-10719	New Genuine Part
9098901094	90989-01094	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9165640620	91656-40620	Bolt(For Oil Receiver Pipe)
9165640620	91651-60618	Bolt(For Oil Receiver Pipe)
9331914025	93319-14025	Screw W Washer
9331915008	93319-15008	SCREW

OEM	Part name	Category
27037-74010	Wire Sub-Assy, Alternator Lead	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27038-74010	Duct Sub-Assy, Alternator Air	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27039-15171	Cover, Alternator Rear End	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27039-72010	Cover, Alternator Rear End	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27060-74010	Alternator Assy	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27291-74010	Duct, Alternator, No.1	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27292-74010	Duct, Alternator, No.2	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27295-74010	Bracket, Alternator Duct	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27310-63021	Frame Assy, Drive End, Alternator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27312-72100	Plate, Bearing Retainer, Alternator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27317-74010	Packing, Cover, Rear End	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27330-72101	Rotor Assy, Alternator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27351-16130	Bush(For Alternator Rectifier End Frame)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27351-74010	Bush(For Alternator Rectifier End Frame)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27357-63020	Holder, Alternator, W/rectifier	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27359-63081	Frame, Alternator Rectifier End	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27370-35060	Holder Assy, Alternator Brush	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27370-63021	Holder Assy, Alternator Brush	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27371-63020	Brush, Alternator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27371-70300	Brush, Alternator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27372-72100	Spring, Alternator Brush	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27372-87501	Spring, Alternator Brush	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27387-70170	Insulator, Terminal	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27389-63020	Insulator, Terminal	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27411-16180	Pulley, Alternator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27443-63020	Cover, Alternator Bearing	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27446-74010	Clip, Alternator Cord	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27700-63021	Regulator Assy, Generator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
27700-70030	Regulator Assy, Generator	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90080-11225	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90093-00518	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-00949	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-00959	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-05119	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-05171	Nut(For Alternator Pulley)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-05172	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-10159	Bearing(For Alternator Drive End Frame)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90099-10199	Bearing(For Alternator Drive End Frame)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90105-10038	Bolt(For Alternator)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90461-10719	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
90989-01094	New Genuine Part	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
91651-40612	BOLT	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
91651-60614	Bolt	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
91651-60618	Bolt(For Oil Receiver Pipe)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
91656-40616	Bolt	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
91656-40620	Bolt(For Oil Receiver Pipe)	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
93319-14025	Screw W Washer	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
93319-15008	SCREW	Alternator ([10.1987 - ] 12V 70A (8710- )3SGTE)
