ST163

Toyota CARINA · 1988 · 4,097 parts · 155 categories

← Back to categories

4,097 items

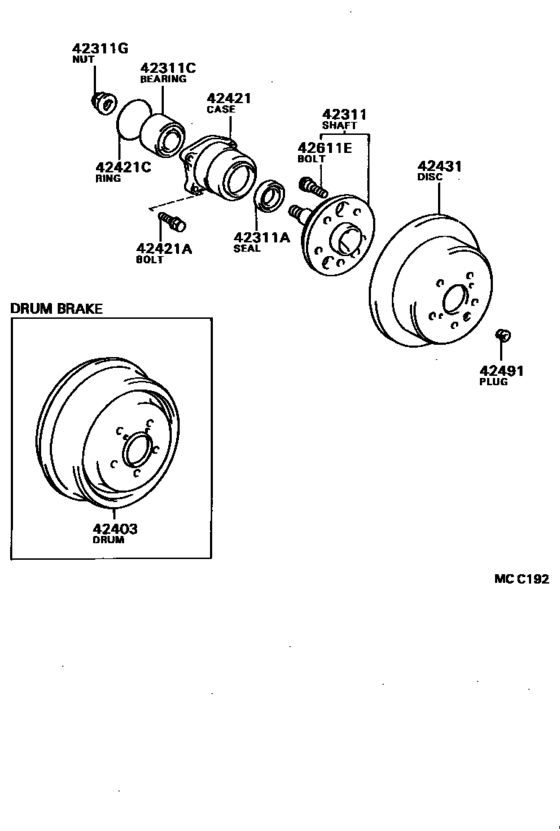

Rear Axle Shaft & Hub ([08.1987 - ] (8708- )) 13

#	OEM	Part name
42311	42301-20080	Shaft, Rear Axle
42311	42410-20130	Shaft, Rear Axle
42311	90311-42018	Seal, Oil (For Rear Axle Shaft)
42311	90369-30044	Bearing (For Rear Axle Shaft)
42311	90179-20003	Nut (For Rear Axle Shaft)
42311	90179-20017	Nut (For Rear Axle Shaft)
42403	42431-20080	Drum Sub-Assy, Rear Brake
42421	42421-20020	Case, Rear Axle Bearing
42421	42409-20010	Bearing Sub-Assy, Rear Axle, Rh
42421	90105-10124	Bolt (For Axle Bearing)
42421	90301-63003	Ring, O (For Rear Axle Bearing Rh)
42421	90301-63006	Ring, O (For Rear Axle Bearing Rh)
42611	90942-02047	Bolt, Hub

OEM	Part name	Category
42301-20080	Shaft, Rear Axle	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
42409-20010	Bearing Sub-Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
42410-20130	Shaft, Rear Axle	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
42421-20020	Case, Rear Axle Bearing	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
42431-20080	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90105-10124	Bolt (For Axle Bearing)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90179-20003	Nut (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90179-20017	Nut (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90301-63003	Ring, O (For Rear Axle Bearing Rh)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90301-63006	Ring, O (For Rear Axle Bearing Rh)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90311-42018	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90369-30044	Bearing (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([08.1987 - ] (8708- ))
