Search › Model › ST163

ST163

Toyota CARINA · 1988 · 4,097 parts · 155 categories

4,097 items

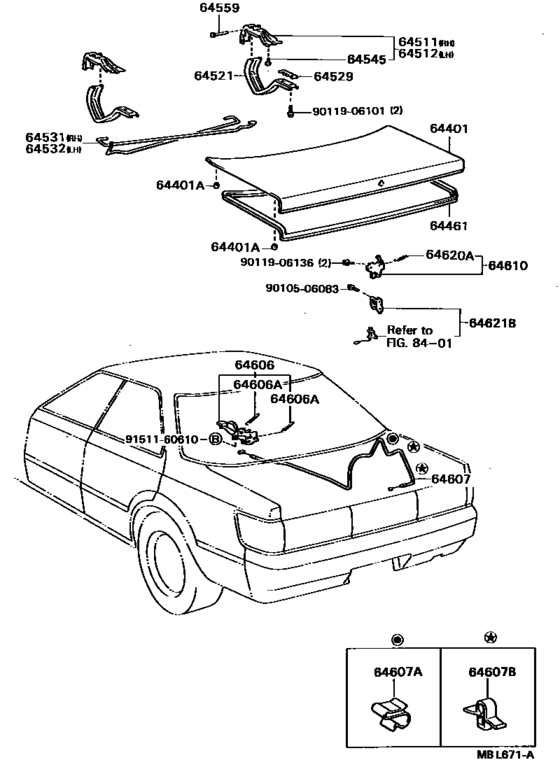

Luggage Compartment Door & Lock ([08.1987 - ] (8708- )) 34

#	OEM	Part name
64401	64401-2B030	Panel Sub-Assy, Luggage Compartment Door
64401	64401-2B040	Panel Sub-Assy, Luggage Compartment Door
64401	90541-06076	Cushion(For Luggage Compartment Door Panel)
64401	90541-06056	Cushion(For Luggage Compartment Door Panel)
64401	90541-09043	Cushion(For Luggage Compartment Door Panel)
64461	64461-20270	Weatherstrip, Luggage Compartment Door
64511	64511-20100	Support, Luggage Compartment Door Hinge, Rh
64512	64512-20100	Support, Luggage Compartment Door Hinge, Lh
64521	64521-20110	Arm, Luggage Compartment Door Hinge
64529	64529-20010	Spacer, Luggage Compartment Door Hinge
64531	64531-20161	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-20171	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-20180	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-20161	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-20171	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-20180	Bar, Luggage Door Hinge Torsion, Lh
64545	90541-07007	Cushion, Luggage Door Hinge
64559	64559-22010	Pin, Luggage Door Hinge
64606	64606-20070	Lever Sub-Assy, Luggage Door Lock Open
64606	90506-09004	Spring, Tension(For Luggage Door Lock Open Lever)
64607	64607-20260	Cable Sub-Assy, Luggage Door Lock Control
64607	90463-05005	Clamp, No.1(For Luggage Door Lock Control Cable)
64607	90959-01209	Clamp, No.1(For Luggage Door Lock Control Cable)
64610	64610-20090	Lock Assy, Luggage Compartment Door
64620	90506-08001	Spring, Tension(For Luggage Compartment Door Lock)
64621	64621-20050	Striker Sub-Assy, Luggage Compartment Door Lock
64621	64620-20040	Striker Sub-Assy, Luggage Compartment Door Lock
9010506083	90105-06083	New Genuine Part
9010506083	90105-06168	BOLT WASHER BASED
9011906101	90119-06101	New Genuine Part
9011906101	90119-06010	BOLT WWASHER
9011906136	90119-06136	New Genuine Part
9151160610	91511-60610	New Genuine Part
9151160610	91511-B0610	BOLT FLANGE

OEM	Part name	Category
64401-2B030	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64401-2B040	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64461-20270	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64511-20100	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64512-20100	Support, Luggage Compartment Door Hinge, Lh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64521-20110	Arm, Luggage Compartment Door Hinge	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64529-20010	Spacer, Luggage Compartment Door Hinge	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64531-20161	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64531-20171	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64531-20180	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64532-20161	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64532-20171	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64532-20180	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64559-22010	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64606-20070	Lever Sub-Assy, Luggage Door Lock Open	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64607-20260	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64610-20090	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64620-20040	Striker Sub-Assy, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
64621-20050	Striker Sub-Assy, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90105-06083	New Genuine Part	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90119-06010	BOLT WWASHER	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90119-06101	New Genuine Part	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90119-06136	New Genuine Part	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90463-05005	Clamp, No.1(For Luggage Door Lock Control Cable)	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90506-08001	Spring, Tension(For Luggage Compartment Door Lock)	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90506-09004	Spring, Tension(For Luggage Door Lock Open Lever)	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90541-06056	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90541-06076	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90541-07007	Cushion, Luggage Door Hinge	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90541-09043	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
90959-01209	Clamp, No.1(For Luggage Door Lock Control Cable)	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
91511-60610	New Genuine Part	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))
91511-B0610	BOLT FLANGE	Luggage Compartment Door & Lock ([08.1987 - ] (8708- ))

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 155
Collected: 2026-08-02
