Search › Model › ST163

ST163

Toyota CARINA · 1988 · 4,097 parts · 155 categories
ST163 ×

← Back to categories

4,097 items

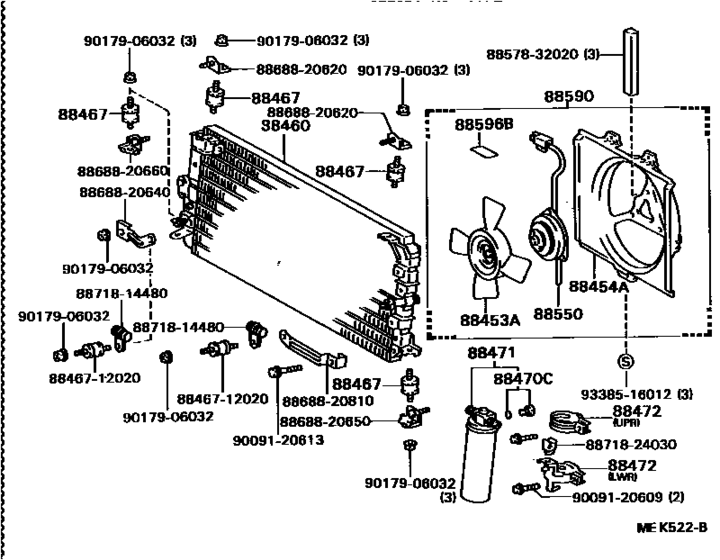

Heating & Air Conditioning - Cooler Piping ([08.1987 - ] (8708- )G ; (8708- )ST160,163) 56
#OEMPart name
88460 88460-20200 Condenser Assy, Cooler
88467 88467-14040 Cushion, Cooler Condenser, No.1
88470 88475-12020 Bolt, Fuse
88471 88470-14010 Receiver & Dryer Assy, Cooler
88471 04884-33110 New Genuine Part
88472 88472-22090 Bracket, Receiver Tank, No.1
88472 88473-20030 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88590 88590-20150 Blower Assy, W/shroud
88590 88590-20080 Blower Assy, W/shroud
88645 88645-10020 Switch, Pressure
88645 88645-32020 Switch, Pressure No.1
88645 88645-16050 Switch, Pressure No.1
88710 88710-20170 Tube Assy, Air Conditioner
88711 88711-20530 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-20710 Hose, Cooler Refrigerant Suction, No.1
88712 88720-20340 Hose & Accessory, Air Conditioner
88716 88716-2B080 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2B400 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2B390 Pipe, Cooler Refrigerant Liquid, E
88717 88717-20700 Pipe, Cooler Refrigerant Suction, A
88717 88717-20840 Pipe, Cooler Refrigerant Suction, B
88717 88717-20710 Pipe, Cooler Refrigerant Suction, C
88720 88720-20350 Hose & Accessory, Air Conditioner
8846712020 88467-12020 Cushion, Cooler Condenser, No.1
8846720060 88467-20060 Cushion, Cooler Condenser, No.1
8846720060 88467-12030 Cushion, Cooler Condenser, No.1
8857832020 88578-32020 Packing A (For Cooler)
8868820530 88688-20530 Bracket, Cooler Diaphragm
8868820550 88688-20550 Bracket, Cooler Diaphragm
8868820560 88688-20560 Bracket, Cooler Diaphragm
8868820620 88688-20620 Bracket, Cooler Condenser, No.3
8868820640 88688-20640 Bracket, Cooler Diaphragm
8868820650 88688-20650 Bracket, Cooler Condenser, No.1
8868820660 88688-20660 Bracket, Cooler Condenser, No.2
8868820810 88688-20810 Bracket, Cooler Diaphragm
8871487004 88714-87004 Insulator, Cooler Refrigerant Hose, No.1
8871487004 88714-24100 Insulator, Cooler Refrigerant Hose, No.2
8871814480 88718-14480 Clamp(For Cooler Refrigerant Pipe), No.5
8871820600 88718-20600 Pipe, Cooler Refrigerant Suction, No.2
8871820610 88718-20610 Pipe, Cooler Refrigerant Suction, No.2
8871820640 88718-20640 Pipe, Cooler Refrigerant Suction, No.2
8871820670 88718-20670 Pipe, Cooler Refrigerant Suction, No.2
8871824030 88718-24030 Clamp(For Cooler Refrigerant Pipe), No.2
8889720090 88897-20090 Valve, Cooler Magnet
9009120609 90091-20609 BOLT
9009120613 90091-20613 BOLT
9009120809 90091-20809 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338515012 93385-15012 SCREW
9338516012 93385-16012 New Genuine Part
9611110360 96111-10360 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)
