ST163

Toyota CARINA · 1988 · 4,097 parts · 155 categories

← Back to categories

4,097 items

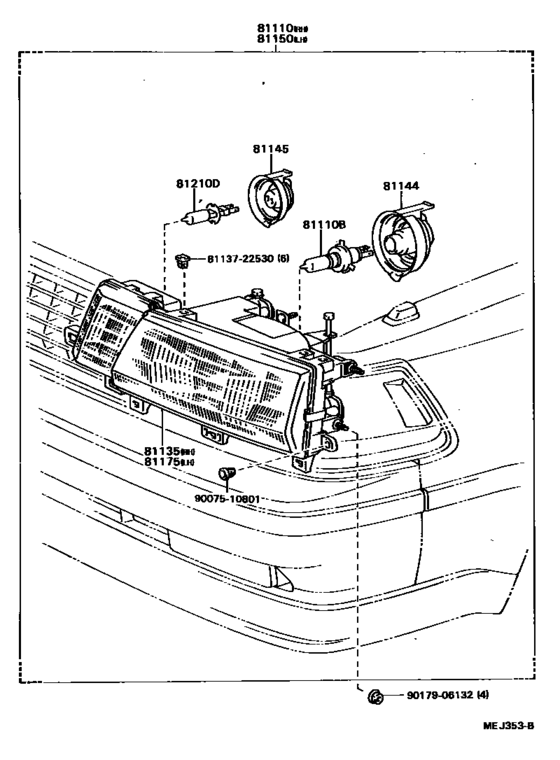

Headlamp ([08.1987 - ] (8708- )) 15

#	OEM	Part name
81110	81110-2B101	Headlamp Assy, Rh
81110	90981-13015	Bulb(For Headlamp, No.1)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81135	81130-2B101	Unit Assy, Headlamp, Rh
81144	81139-20730	Cover, Headlamp, No.1
81145	90075-99008	Cover, Headlamp, No.2
81150	81150-2B061	Headlamp Assy, Lh
81175	81170-2B061	Unit Assy, Headlamp, Lh
81210	90981-13027	Bulb(For Headlamp, No.2)
8113722530	81137-22530	Nut, Headlamp Self Locking
8113722530	90075-10004	Nut, Headlamp Self Locking
9007510801	90075-10801	New Genuine Part
9007510801	90189-06111	CLIP
9017906132	90179-06132	Clip(For Front Bumper), No.1
9017906132	90179-06274	Nut

OEM	Part name	Category
81110-2B101	Headlamp Assy, Rh	Headlamp ([08.1987 - ] (8708- ))
81130-2B101	Unit Assy, Headlamp, Rh	Headlamp ([08.1987 - ] (8708- ))
81137-22530	Nut, Headlamp Self Locking	Headlamp ([08.1987 - ] (8708- ))
81139-20730	Cover, Headlamp, No.1	Headlamp ([08.1987 - ] (8708- ))
81150-2B061	Headlamp Assy, Lh	Headlamp ([08.1987 - ] (8708- ))
81170-2B061	Unit Assy, Headlamp, Lh	Headlamp ([08.1987 - ] (8708- ))
90075-10004	Nut, Headlamp Self Locking	Headlamp ([08.1987 - ] (8708- ))
90075-10801	New Genuine Part	Headlamp ([08.1987 - ] (8708- ))
90075-99008	Cover, Headlamp, No.2	Headlamp ([08.1987 - ] (8708- ))
90179-06132	Clip(For Front Bumper), No.1	Headlamp ([08.1987 - ] (8708- ))
90179-06274	Nut	Headlamp ([08.1987 - ] (8708- ))
90189-06111	CLIP	Headlamp ([08.1987 - ] (8708- ))
90981-13015	Bulb(For Headlamp, No.1)	Headlamp ([08.1987 - ] (8708- ))
90981-13027	Bulb(For Headlamp, No.2)	Headlamp ([08.1987 - ] (8708- ))
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([08.1987 - ] (8708- ))
