Search › Model › ST163
ST163

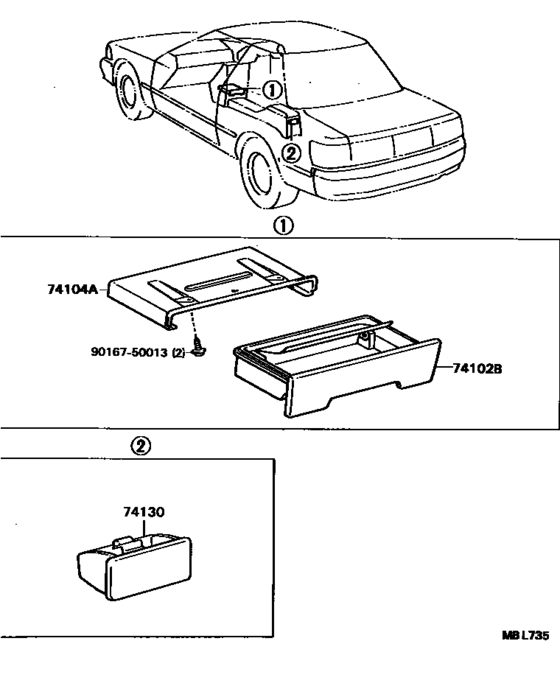

Ash Receptacle ([08.1987 - ] (8708- )) 13
| # | OEM | Part name |
|---|---|---|
| 74102 | 74102-20120-01 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-20130-01 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-20120-04 | Receptacle Assy, Front Ash |
| 74102 | 74102-20130-04 | Receptacle Assy, Front Ash - FRONT ASH RECEPTACLE |
| 74102 | 74102-20120-16 | Box Sub-Assy, Front Ash Receptacle |
| 74102 | 74102-20130-E0 | Box Sub-Assy, Front Ash Receptacle |
| 74104 | 74104-20170 | Retainer Sub-Assy, Ash Receptacle, No.1 |
| 74130 | 74109-32010-01 | Receptacle Assy, Rear Ash |
| 74130 | 74109-20080-22 | Receptacle Assy, Rear Ash (Black) |
| 74130 | 74109-32010-14 | Receptacle Assy, Rear Ash |
| 74130 | 74109-32010-26 | Receptacle Assy, Rear Ash |
| 9016750013 | 90167-50013 | New Genuine Part |
| 9016750013 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 74102-20120-01 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74102-20120-04 | Receptacle Assy, Front Ash | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74102-20120-16 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74102-20130-01 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74102-20130-04 | Receptacle Assy, Front Ash - FRONT ASH RECEPTACLE | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74102-20130-E0 | Box Sub-Assy, Front Ash Receptacle | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74104-20170 | Retainer Sub-Assy, Ash Receptacle, No.1 | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74109-20080-22 | Receptacle Assy, Rear Ash (Black) | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74109-32010-01 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74109-32010-14 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1987 - ] (8708- )) |
| 74109-32010-26 | Receptacle Assy, Rear Ash | Ash Receptacle ([08.1987 - ] (8708- )) |
| 90167-50013 | New Genuine Part | Ash Receptacle ([08.1987 - ] (8708- )) |
| 93568-55014 | Screw | Ash Receptacle ([08.1987 - ] (8708- )) |
