Search › Model › ST162

ST162

Toyota CARINA · 1985 · 5,215 parts · 184 categories

5,215 items

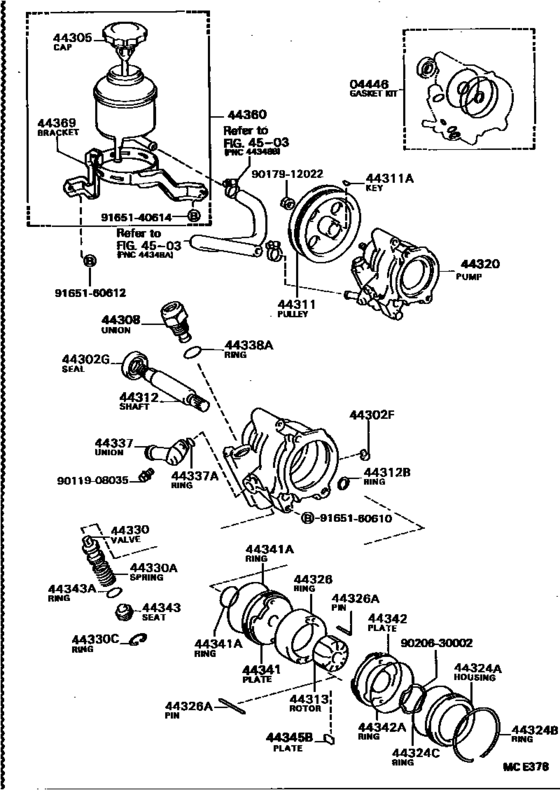

Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- )) 74

#	OEM	Part name
4446	04446-20030	Gasket Kit, Power Steering Pump
4446	04446-20031	Gasket Kit, Power Steering Pump
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-32010	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-20030	Union Sub-Assy, Pressure Port
44308	44308-20020	Union Sub-Assy, Pressure Port
44311	44311-20060	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-12010	Rotor, Vane Pump
44313	44313-22040	Rotor, Vane Pump
44313	44313-12020	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-12030	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-12040	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-12050	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-20120	Pump Assy, Vane
44320	44320-20121	Pump Assy, Vane
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-52001	Ring, O(For Pump Housing Rear)
44326	44325-12110	Ring, Fixed(For Vane Pump)
44326	44325-12120	Ring, Fixed(For Vane Pump)
44326	44325-12130	Ring, Fixed(For Vane Pump)
44326	44325-12140	Ring, Fixed(For Vane Pump)
44326	44325-12150	Ring, Fixed(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-12130	Valve Assy, Flow Control
44330	44330-32670	Valve Assy, Flow Control
44330	44330-12140	Valve Assy, Flow Control
44330	44330-32680	Valve Assy, Flow Control
44330	44330-12150	Valve Assy, Flow Control
44330	44330-32690	Valve Assy, Flow Control
44330	44330-12160	Valve Assy, Flow Control
44330	44330-32700	Valve Assy, Flow Control
44330	44330-12170	Valve Assy, Flow Control
44330	44330-32710	Valve Assy, Flow Control
44330	44330-12180	Valve Assy, Flow Control
44330	44330-32720	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44337	44337-12030	Union, Power Steering Suction Port
44337	90301-12003	Ring, O(For Power Steering Suction Port)
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-12030	Plate, Vane Pump Side, Front
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	44342-12021	Plate, Vane Pump Side, Rear
44342	44342-32010	Plate, Vane Pump Side, Rear
44343	44343-12010	Seat, Flow Control Spring
44343	96711-19014	O-Ring
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-20090	Reservoir Assy, Vane Pump Oil
44369	44369-20060	Bracket, Oil Reservoir, No.1
9011908035	90119-08035	New Genuine Part
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9165140614	91651-40614	Bolt
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER
9165160612	91651-60612	BOLT

OEM	Part name	Category
04446-20030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
04446-20031	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44305-32010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44308-20020	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44308-20030	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44311-20060	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-12010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-12020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-12030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-12040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-12050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44320-20120	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44320-20121	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-12130	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-12140	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-12150	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-12160	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-12170	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-12180	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-32670	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-32680	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-32690	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-32700	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-32710	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44330-32720	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44337-12030	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44341-12030	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44342-12021	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44343-12010	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44360-20090	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
44369-20060	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
91651-40614	Bolt	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
91651-60610	BOLT	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
91651-60612	BOLT	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
91651-B0610	BOLTWWASHER	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([08.1987 - ] (8708- ))
