ST162

Toyota CARINA · 1985 · 5,215 parts · 184 categories

5,215 items

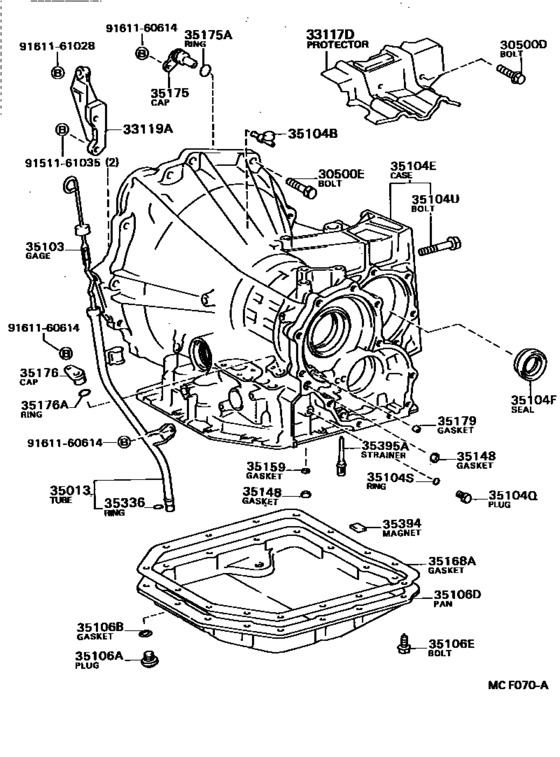

Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC) 58

#	OEM	Part name
30500	90105-08040	Bolt(For Plate Bolt Lock)
30500	91641-H0820	Bolt
30500	90105-10077	Bolt(For Transaxle Case Protector)
30500	91619-61245	Bolt(For Transaxle & Engine Setting)
33117	33117-32022	Protector, Transaxle Case
33119	33119-32030	Plate, Stiffener, Lh(Mtm)
33119	33119-32020	Plate, Stiffener, Lh(Mtm)
35013	35013-20240	Tube Sub-Assy, Transmission Oil Filler
35013	35013-20251	Tube Sub-Assy, Transmission Oil Filler
35103	35103-20120	Gage Sub-Assy, Transmission Oil Level
35103	35103-20130	Gage Sub-Assy, Transmission Oil Level
35103	35103-32060	Gage Sub-Assy, Transmission Oil Level
35104	90930-03089	Plug, Breather, No.1 (Atm)
35104	35104-32051	Case Sub-Assy, Automatic Transaxle
35104	35104-32112	Case Sub-Assy, Automatic Transaxle
35104	90501-18084	Spring, Compression (For C-1 Accumulator Piston)
35104	35424-20020	Piston, C-1 Accumulator
35104	35603-32030	Spring Sub-Assy, Forward Clutch Return
35104	90301-23194	Ring, O (For Low Speed Brake Accumulator Piston)
35104	90501-20118	Spring, Compression (For C-1 Accumulator Piston)
35104	90105-10203	New Genuine Part
35104	91642-H0822	New Genuine Part
35104	35104-32052	Case Sub-Assy, Automatic Transaxle
35104	35104-32053	Case Sub-Assy, Automatic Transaxle
35104	90311-35019	Seal, Oil, No.2(For Transaxle Case)
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90301-06196	O Ring, Transaxle Case, No.1
35104	90105-12052	Bolt (For Transaxle Case)
35104	90105-12263	Bolt (For Rear Axle Carrier)
35104	35104-20071	Case Sub-Assy, Automatic Transaxle
35104	35104-32102	Case Sub-Assy, Automatic Transaxle
35104	35104-20072	Case Sub-Assy, Automatic Transaxle
35104	35104-20073	Case Sub-Assy, Automatic Transaxle
35106	90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106	90430-18008	Gasket
35106	90430-T0021	Gasket(For Manual Transmission Filler Plug)
35106	35106-10021	Pan Sub-Assy, Automatic Transaxle Oil
35106	35106-10022	Pan Sub-Assy, Automatic Transaxle Oil
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35148	35148-16010	Gasket (For Automatic Transfer Case)
35159	35159-32011	Gasket, Brake Drum
35168	35168-32010	Gasket, Automatic Transaxle Oil Pan
35175	35175-32010	Cap, Transaxle Case, No.2
35175	90301-21002	Ring, O (For Transaxle Case Cap)
35176	35176-32010	Cap, Wire Harness
35176	96721-24013	Ring, O (For Wire Harness Cap)
35179	35179-32010	Gasket, Overdrive Brake
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-32011	Strainer, Governor Oil
35395	35395-32020	Strainer, Governor Oil
35395	35395-32030	Strainer, Governor Oil
9151161035	91511-61035	Bolt(For Transaxle Case & Engine Setting)
9151161035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161161028	91611-61028	Bolt(For Transaxle Case & Engine Setting)
9161161028	91612-61028	Bolt(For Transaxle Case & Engine Setting)

OEM	Part name	Category
33117-32022	Protector, Transaxle Case	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
33119-32020	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
33119-32030	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35013-20240	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35013-20251	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35103-20120	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35103-20130	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35103-32060	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-20071	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-20072	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-20073	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-32051	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-32052	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-32053	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-32102	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35104-32112	Case Sub-Assy, Automatic Transaxle	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35106-10021	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35106-10022	Pan Sub-Assy, Automatic Transaxle Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35148-16010	Gasket (For Automatic Transfer Case)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35159-32011	Gasket, Brake Drum	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35168-32010	Gasket, Automatic Transaxle Oil Pan	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35175-32010	Cap, Transaxle Case, No.2	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35176-32010	Cap, Wire Harness	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35179-32010	Gasket, Overdrive Brake	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35395-32011	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35395-32020	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35395-32030	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35424-20020	Piston, C-1 Accumulator	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35603-32030	Spring Sub-Assy, Forward Clutch Return	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-08040	Bolt(For Plate Bolt Lock)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-10077	Bolt(For Transaxle Case Protector)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-10203	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-12052	Bolt (For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-12263	Bolt (For Rear Axle Carrier)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90301-21002	Ring, O (For Transaxle Case Cap)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90301-23194	Ring, O (For Low Speed Brake Accumulator Piston)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90311-35019	Seal, Oil, No.2(For Transaxle Case)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90341-18016	Plug, W/head Straight Screw(For Transaxle Housing & Case)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90430-18008	Gasket	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90501-18084	Spring, Compression (For C-1 Accumulator Piston)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90501-20118	Spring, Compression (For C-1 Accumulator Piston)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90930-03089	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91511-61035	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91611-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91619-61245	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91641-H0820	Bolt	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
91642-H0822	New Genuine Part	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
96721-24013	Ring, O (For Wire Harness Cap)	Transmission Case & Oil Pan (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
