Search › Model › ST162

ST162

Toyota CARINA · 1985 · 5,215 parts · 184 categories

5,215 items

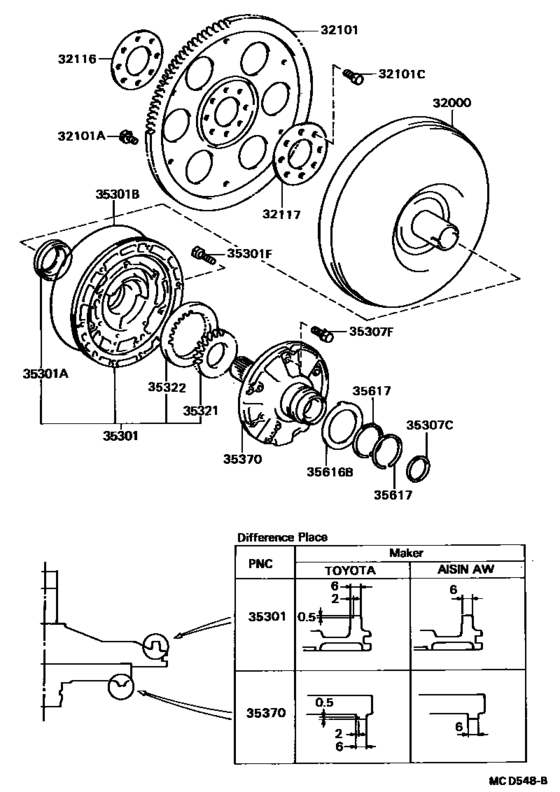

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC) 50

#	OEM	Part name
32000	32000-20140	Converter Assy, Torque
32000	32000-20141	Converter Assy, Torque
32000	32000-32020	Converter Assy, Torque
32000	32000-32080	Converter Assy, Torque
32000	32000-32040	Converter Assy, Torque
32101	32101-20100	Gear Sub-Assy, Drive Plate & Ring
32101	32101-32021	Gear Sub-Assy, Drive Plate & Ring
32101	90109-08113	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-08498	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-12184	Bolt, Flywheel Setting
32101	90105-12384	Bolt, Flywheel Setting
32101	90109-10054	Bolt(For Drive Plate & Torque Converter Setting)
32101	32101-32040	Gear Sub-Assy, Drive Plate & Ring
32101	32101-32041	Gear Sub-Assy, Drive Plate & Ring
32101	32101-32050	Gear Sub-Assy, Drive Plate & Ring
32101	32101-32051	Gear Sub-Assy, Drive Plate & Ring
32116	32116-20040	Spacer, Drive Plate, Front
32116	32116-32011	Spacer, Drive Plate, Front
32116	32116-14020	Spacer, Drive Plate, Front
32117	32117-20050	Spacer, Drive Plate, Rear
32117	32117-32010	Spacer, Drive Plate, Rear
32117	32117-14030	Spacer, Drive Plate, Rear
35301	35035-32010	Body Sub-Assy, Front Oil Pump
35301	35035-32020	Body Sub-Assy, Front Oil Pump
35301	35035-32H00	Body Sub-Assy, Front Oil Pump
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99024	Ring, O (For Front Oil Pump Body)
35301	90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)
35307	35789-32020	Race, Thrust Bearing (For Stator Shaft)
35307	35789-32030	Race, Thrust Bearing (For Stator Shaft)
35307	90119-06180	Bolt (For Stator Shaft)
35321	35321-32040	Gear, Front Oil Pump Drive
35321	35321-12070	Gear, Front Oil Pump Drive
35321	35321-32050	Gear, Front Oil Pump Drive
35321	35321-12090	Gear, Front Oil Pump Drive
35321	35321-32060	Gear, Front Oil Pump Drive
35321	35321-12110	Gear, Front Oil Pump Drive
35322	35322-32040	Gear, Front Oil Pump Driven
35322	35322-12060	Gear, Front Oil Pump Driven
35322	35322-32050	Gear, Front Oil Pump Driven
35322	35322-12080	Gear, Front Oil Pump Driven
35322	35322-32060	Gear, Front Oil Pump Driven
35322	35322-12100	Gear, Front Oil Pump Driven
35370	35370-32022	Shaft Sub-Assy, Stator
35370	35370-20H00	Shaft Assy, Stator
35370	35370-32H01	Shaft Assy, Stator
35370	35370-32031	Shaft Sub-Assy, Stator
35370	35370-32H02	Shaft Assy, Stator
35616	35616-32010	Washer, Clutch Drum Thrust (For Stator Shaft)
35617	35617-32011	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
32000-20140	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32000-20141	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32000-32020	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32000-32040	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32000-32080	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32101-20100	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32101-32021	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32101-32040	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32101-32041	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32101-32050	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32101-32051	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32116-14020	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32116-20040	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32116-32011	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32117-14030	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32117-20050	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
32117-32010	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35035-32010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35035-32020	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35035-32H00	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35321-12070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35321-12090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35321-12110	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35321-32040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35321-32050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35321-32060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35322-12060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35322-12080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35322-12100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35322-32040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35322-32050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35322-32060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35370-20H00	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35370-32022	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35370-32031	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35370-32H01	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35370-32H02	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35616-32010	Washer, Clutch Drum Thrust (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35617-32011	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35789-32020	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
35789-32030	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-08050	Bolt (For Overdrive Case & Transaxle Case Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-12184	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90105-12384	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90109-08113	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90109-10054	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90119-06180	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90119-08498	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90301-99024	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([08.1987 - ] A140L,A140E (8708- )4FC)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 184
Collected: 2026-08-02
