ST162

Toyota CARINA · 1985 · 5,215 parts · 184 categories
ST162 ×

← Back to categories

5,215 items

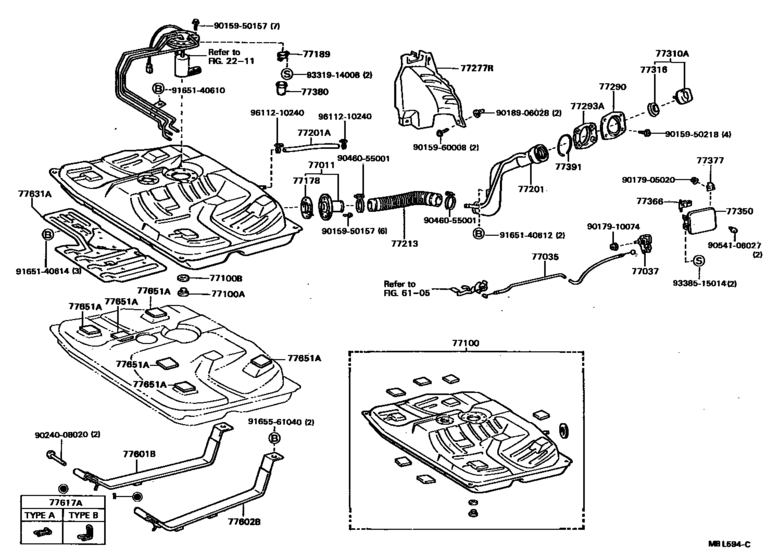

Fuel Tank & Tube ([08.1987 - ] (8708- )) 85
#OEMPart name
77011 77011-20020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77035 77035-20110 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-32060 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-90K00 Lock Sub-Assy, Fuel Tank Cap
77100 77001-29256 Tank Assy, Fuel
77100 77001-29257 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77178 77178-20010 Gasket, Fuel Tank Filler Pipe, Lower
77189 77189-20010 Retainer, Fuel Check Valve
77201 77201-20270 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-20290 Pipe Sub-Assy, Fuel Tank Inlet
77201 95311-13024 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-20080 Hose, Fuel Tank Sub Inlet
77251 77251-20530 Tube, Fuel Main
77251 77251-20330 Tube, Fuel Main
77254 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77254 95337-06020 Hose, Differential Pressure Control
77255 77255-20400 Tube, Fuel Return
77255 77251-20200 Tube, Fuel Return - FUEL MAIN, NO.1
77261 77261-20160 Tube, Fuel Tank To Canister
77261 77259-20060 Hose, Fuel, No.1 (For Emission Tube, No.1)
77266 77266-20070 Protector, Fuel Tube, No.1
77267 77267-20010 Protector, Fuel Tube, No.2
77277 77277-20090 Protector, Fuel Tank Filler Pipe
77277 90447-12085 Hose, Fuel, No.1(For Return Tube, No.1)
77277 90447-12113 Hose, Fuel, No.1(For Return Tube, No.1)
77284 77284-20031 Protector, Fuel Tube, No.3
77285 77285-20041 Clamp, Fuel Tube W/grommet, No.1
77290 77290-20070 Shield Assy, Fuel Tank Filler Pipe
77293 77293-20010 Shield, Fuel Tank Filler Pipe, No.3
77295 77295-20010 Grommet, Fuel Tube
77298 77298-20010 Clamp, Fuel Tube W/grommet, No.4
77299 77299-20010 Clamp, Fuel Tube W/grommet, No.5
77310 77310-12100 Cap Assy, Fuel Tank
77316 77316-12050 Gasket (For Fuel Tank Cap)
77350 77350-20070 Lid Assy, Fuel Filler Opening
77366 77360-20020 Spring, Fuel Filler Opening Lid Hinge
77377 77377-20030 Retainer, Fuel Filler Opening Lid Lock
77380 77380-14020 Valve Assy, Fuel Cut Off
77391 77391-32010 Ring, Fuel Inlet Box
77601 77601-20080 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-20110 Band Sub-Assy, Fuel Tank, No.1 Lh
77617 77617-12010 Union, Auxiliary Fuel Band
77617 90468-14004 Union, Auxiliary Fuel Band
77631 77631-20040 Protector, Fuel Tank, Lower Center
77651 77651-20050 Cushion, Fuel Tank, No.1
77740 77704-20230 Canister Assy, Charcoal
77740 77264-20050 Tube, Fuel, No.1(For Charcoal Canister)
77754 77754-12020 Hose, Charcoal Canister Outlet, No.1
8271122220 82711-22220 Clamp (For Speedometer Cable)
9011906374 90119-06374 BOLT
9011906374 91653-A0614 BOLT WWASHER
9015950157 90159-50157 SCREW WWASHER
9015950218 90159-50218 New Genuine Part
9015950218 90159-50278 New Genuine Part
9015960008 90159-60008 SCREW
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017910074 90179-10074 New Genuine Part
9018906028 90189-06028 CLIP
9024008020 90240-08020 Pin (For Fuel Tank Band)
9046055001 90460-55001 New Genuine Part
9046055001 96111-20550 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9046400107 90464-00107 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9048001062 90480-01062 New Genuine Part
9048017002 90480-17002 New Genuine Part
9054106027 90541-06027 Cushion(For Fuel Inlet Box Cover)
9095901148 90959-01148 New Genuine Part
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9165140610 91651-40610 RIVET
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140614 91651-40614 Bolt
9165561040 91655-61040 New Genuine Part
9165561040 91651-61035 BOLT
9331914008 93319-14008 SCREW
9338515014 93385-15014 Screw(For Steering Tilt Lever)
9611210240 96112-10240 Clamp Or Clip, Hose(For Oil Cooler Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
