Search › Model › ST161
ST161

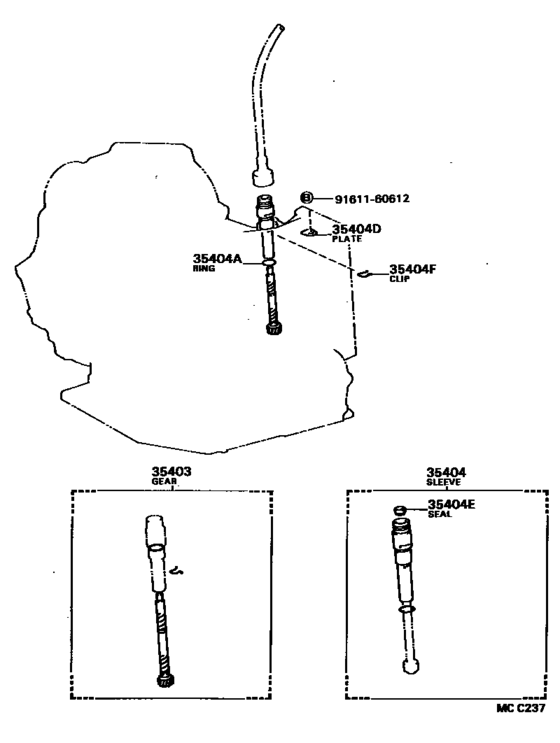

Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) 8
| # | OEM | Part name |
|---|---|---|
| 35403 | 33403-39106 | Gear Sub-Assy, Speedometer Driven (Atm) |
| 35404 | 33404-32010 | Sleeve Sub-Assy, Speedometer Shaft (Atm) |
| 35404 | 96711-24018 | Ring, O |
| 35404 | 33485-14010 | Plate, Speedometer Sleeve Lock (Mtm) |
| 35404 | 90310-09001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) |
| 35404 | 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) |
| 9161160612 | 91611-60612 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
| 9161160612 | 91611-G0612 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 33403-39106 | Gear Sub-Assy, Speedometer Driven (Atm) | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
| 33404-32010 | Sleeve Sub-Assy, Speedometer Shaft (Atm) | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
| 33485-14010 | Plate, Speedometer Sleeve Lock (Mtm) | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
| 90310-09001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
| 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
| 91611-60612 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
| 91611-G0612 | Bolt | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
| 96711-24018 | Ring, O | Speedometer Driven Gear (Atm) ([08.1985 - ] (8508- )4FC) |
