Search › Model › ST151

ST151

Toyota CORONA · 1985 · 4,600 parts · 179 categories

4,600 items

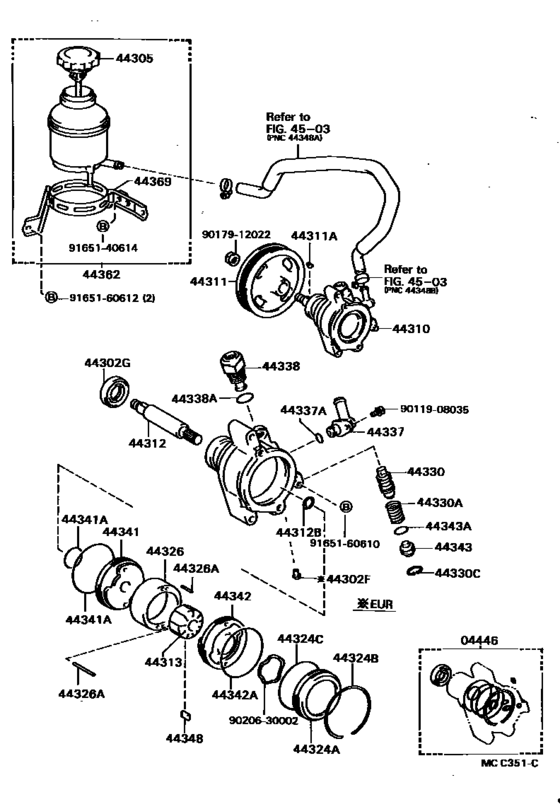

Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A) 73

#	OEM	Part name
4446	04446-20030	Gasket Kit, Power Steering Pump
4446	04446-20031	Gasket Kit, Power Steering Pump
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-32010	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	44320-20040	Pump Assy, Vane
44310	44320-20042	Pump Assy, Vane
44311	44311-20060	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-12010	Rotor, Vane Pump
44313	44313-22040	Rotor, Vane Pump
44313	44313-12020	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-12030	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-12040	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-12050	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-52001	Ring, O(For Pump Housing Rear)
44326	44325-12110	Ring, Fixed(For Vane Pump)
44326	44325-12120	Ring, Fixed(For Vane Pump)
44326	44325-12130	Ring, Fixed(For Vane Pump)
44326	44325-12140	Ring, Fixed(For Vane Pump)
44326	44325-12150	Ring, Fixed(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-14010	Valve Assy, Flow Control
44330	44330-35191	Valve Assy, Flow Control
44330	44330-14020	Valve Assy, Flow Control
44330	44330-35201	Valve Assy, Flow Control
44330	44330-14030	Valve Assy, Flow Control
44330	44330-35211	Valve Assy, Flow Control
44330	44330-14040	Valve Assy, Flow Control
44330	44330-35221	Valve Assy, Flow Control
44330	44330-14050	Valve Assy, Flow Control
44330	44330-35231	Valve Assy, Flow Control
44330	44330-14060	Valve Assy, Flow Control
44330	44330-35241	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44337	44337-20010	Union, Power Steering Suction Port
44337	90301-12003	Ring, O(For Power Steering Suction Port)
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	44308-20020	Union Sub-Assy, Pressure Port
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-12030	Plate, Vane Pump Side, Front
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44342	44342-12021	Plate, Vane Pump Side, Rear
44342	44342-32010	Plate, Vane Pump Side, Rear
44343	44343-12010	Seat, Flow Control Spring
44343	96711-19014	O-Ring
44348	44345-12010	Plate, Vane Pump
44348	44345-12020	Plate, Vane Pump
44348	44345-12030	Plate, Vane Pump
44348	44345-12040	Plate, Vane Pump
44348	44345-12050	Plate, Vane Pump
44362	44360-20050	Reservoir, Oil(For Vane Pump)
44369	44369-20030	Bracket, Oil Reservoir, No.1
9011908035	90119-08035	New Genuine Part
9017912022	90179-12022	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9165140614	91651-40614	Bolt
9165160610	91651-60610	BOLT
9165160610	91651-B0610	BOLTWWASHER
9165160612	91651-60612	BOLT

OEM	Part name	Category
04446-20030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
04446-20031	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44305-32010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44308-20020	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44311-20060	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-12010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-12020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-12030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-12040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-12050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44320-20040	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44320-20042	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-14010	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-14020	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-14030	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-14040	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-14050	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-14060	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-35191	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-35201	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-35211	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-35221	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-35231	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44330-35241	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44337-20010	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44341-12030	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44342-12021	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44343-12010	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44360-20050	Reservoir, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
44369-20030	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
91651-40614	Bolt	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
91651-60610	BOLT	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
91651-60612	BOLT	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
91651-B0610	BOLTWWASHER	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([08.1985 - ] (8508- )GL..TH ; (8508- )ST15#..EUR,GEN,SA A)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 179
Collected: 2026-08-02
