Search › Model › ST150

ST150

Toyota CARINA · 1984 · 4,907 parts · 174 categories
ST150 ×

← Back to categories

4,907 items

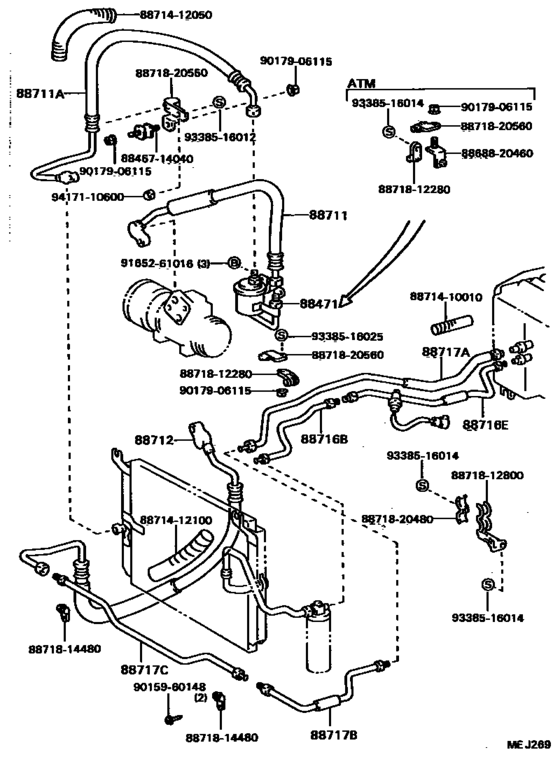

Heating & Air Conditioning - Cooler Piping ([05.1985 - ] (8505- )ST150) 31
#OEMPart name
88471 88471-20020 Tank, Receiver Air Conditioner
88711 88711-20490 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-20470 Hose, Cooler Refrigerant Discharge, No.2
88712 88712-20610 Hose, Cooler Refrigerant Suction, No.1
88716 88716-20700 Pipe, Cooler Refrigerant Liquid, B
88716 88710-20060 Pipe, Cooler Refrigerant Liquid, E
88716 88716-20690 Pipe, Cooler Refrigerant Liquid, E
88716 88716-20740 Pipe, Cooler Refrigerant Liquid, B
88717 88717-20450 Pipe, Cooler Refrigerant Suction, A
88717 88717-20550 Pipe, Cooler Refrigerant Suction, B
88717 88717-20560 Pipe, Cooler Refrigerant Suction, C
8846714040 88467-14040 Cushion, Cooler Condenser, No.1
8868820460 88688-20460 Bracket, Cooler Diaphragm
8871410010 88714-10010 Insulator(For Water By-Pass Hose)
8871412050 88714-12050 Insulator, Cooler Refrigerant Hose, No.1
8871412100 88714-12100 Insulator, Cooler Refrigerant Hose, No.1
8871412100 88714-95402 Insulator, Cooler Refrigerant Hose, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871812800 88718-12800 Pipe, Cooler Refrigerant Suction, No.2
8871814480 88718-14480 Clamp(For Cooler Refrigerant Pipe), No.5
8871820480 88718-20480 Pipe, Cooler Refrigerant Suction, No.2
8871820550 88718-20550 Pipe, Cooler Refrigerant Suction, No.2
8871820560 88718-20560 Pipe, Cooler Refrigerant Suction, No.2
9015960148 90159-60148 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165261016 91652-61016 New Genuine Part
9165261016 91651-61016 Bolt
9338516012 93385-16012 New Genuine Part
9338516014 93385-16014 New Genuine Part
9338516025 93385-16025 New Genuine Part
9417110600 94171-10600 New Genuine Part
