Search › Model › SS80V
SS80V

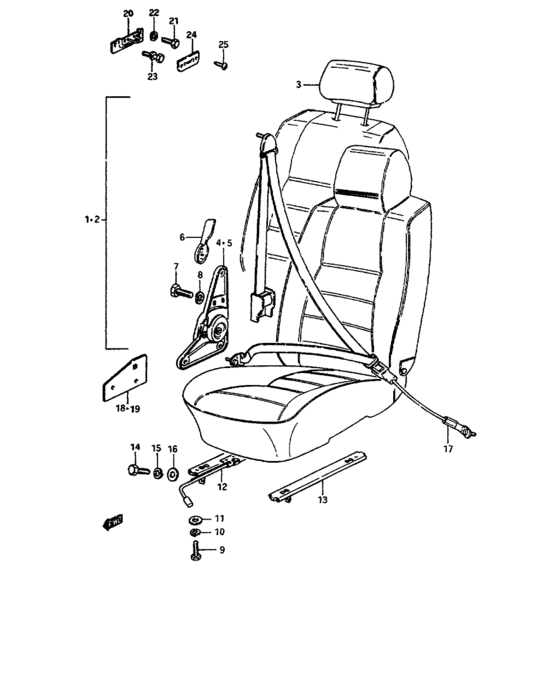

Seat (SEAT) 36
| # | OEM | Part name |
|---|---|---|
| 1 | 80001-78051-70L | Seat assy, rh - Mustard |
| 1 | 80001-78052-89U | Seat assy, rh - Beige |
| 1 | 80001-78061-95R | Seat assy, rh - Beige |
| 2 | 80002-78051-70L | Seat assy, lh - Mustard |
| 2 | 80002-78052-89U | Seat assy, lh - Beige |
| 2 | 80002-78061-95R | Seat assy, lh - Beige |
| 3 | 82110-75010-50S | Headlest |
| 4 | 82601-74020-281 | Reclining assy, rh |
| 4 | 82601-74020-17B | Reclining, rh - Beige |
| 5 | 82603-74020-281 | Reclining assy, lh |
| 5 | 82603-74020-17B | Reclining, lh |
| 6 | 82631-74020-000 | LEVER,RCLNG |
| 7 | 01107-08168-000 | Bolt |
| 7 | 01500-0816B-000 | Bolt |
| 8 | 08321-21088-000 | Lock washer |
| 8 | 08321-01087-000 | WASHER,LOCK - Washer, lock |
| 9 | 01107-06168-000 | Bolt |
| 9 | 01500-06167-000 | Bolt - Bolt, fuel cooler |
| 10 | 08321-21068-000 | Lock washer |
| 10 | 08321-01067-000 | WASHER,LOCK |
| 11 | 08322-21068-000 | Washer |
| 11 | 08322-01067-000 | WASHER |
| 12 | 82410-78011-000 | Rail, seat slide rh |
| 13 | 82510-78010-000 | Rail, seat slide lh |
| 16 | 08322-11088-000 | Washer |
| 16 | 08322-01087-000 | WASHER - Lock washer |
| 17 | 87301-78231-382 | Seat belt assy, front |
| 18 | 87315-78200-000 | Bracket, retract rh |
| 19 | 87325-78200-000 | Bracket, retract lh |
| 20 | 84351-78200-000 | Striker, seat back lock |
| 21 | 01107-06128-000 | Bolt, earth lead |
| 21 | 01500-06127-000 | Bolt |
| 22 | 08321-31068-000 | Lock washer |
| 23 | 09119-06045-000 | Bolt |
| 24 | 84352-78200-000 | Cover, striker |
| 25 | 09131-04005-000 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 01107-06128-000 | Bolt, earth lead | Seat (SEAT) |
| 01107-06168-000 | Bolt | Seat (SEAT) |
| 01107-08168-000 | Bolt | Seat (SEAT) |
| 01500-06127-000 | Bolt | Seat (SEAT) |
| 01500-06167-000 | Bolt - Bolt, fuel cooler | Seat (SEAT) |
| 01500-0816B-000 | Bolt | Seat (SEAT) |
| 08321-01067-000 | WASHER,LOCK | Seat (SEAT) |
| 08321-01087-000 | WASHER,LOCK - Washer, lock | Seat (SEAT) |
| 08321-21068-000 | Lock washer | Seat (SEAT) |
| 08321-21088-000 | Lock washer | Seat (SEAT) |
| 08321-31068-000 | Lock washer | Seat (SEAT) |
| 08322-01067-000 | WASHER | Seat (SEAT) |
| 08322-01087-000 | WASHER - Lock washer | Seat (SEAT) |
| 08322-11088-000 | Washer | Seat (SEAT) |
| 08322-21068-000 | Washer | Seat (SEAT) |
| 09119-06045-000 | Bolt | Seat (SEAT) |
| 09131-04005-000 | Screw | Seat (SEAT) |
| 80001-78051-70L | Seat assy, rh - Mustard | Seat (SEAT) |
| 80001-78052-89U | Seat assy, rh - Beige | Seat (SEAT) |
| 80001-78061-95R | Seat assy, rh - Beige | Seat (SEAT) |
| 80002-78051-70L | Seat assy, lh - Mustard | Seat (SEAT) |
| 80002-78052-89U | Seat assy, lh - Beige | Seat (SEAT) |
| 80002-78061-95R | Seat assy, lh - Beige | Seat (SEAT) |
| 82110-75010-50S | Headlest | Seat (SEAT) |
| 82410-78011-000 | Rail, seat slide rh | Seat (SEAT) |
| 82510-78010-000 | Rail, seat slide lh | Seat (SEAT) |
| 82601-74020-17B | Reclining, rh - Beige | Seat (SEAT) |
| 82601-74020-281 | Reclining assy, rh | Seat (SEAT) |
| 82603-74020-17B | Reclining, lh | Seat (SEAT) |
| 82603-74020-281 | Reclining assy, lh | Seat (SEAT) |
| 82631-74020-000 | LEVER,RCLNG | Seat (SEAT) |
| 84351-78200-000 | Striker, seat back lock | Seat (SEAT) |
| 84352-78200-000 | Cover, striker | Seat (SEAT) |
| 87301-78231-382 | Seat belt assy, front | Seat (SEAT) |
| 87315-78200-000 | Bracket, retract rh | Seat (SEAT) |
| 87325-78200-000 | Bracket, retract lh | Seat (SEAT) |
