SS80V

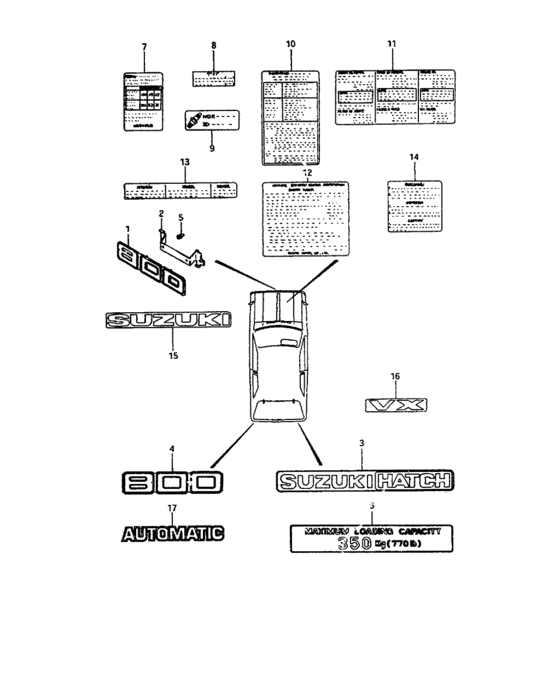

Emblem (EMBLEM) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 86712-78400-000 | Emblem, front grille |
| 1 | 86712-78410-000 | Emblem, "800" |
| 2 | 86716-78400-000 | Retainer, front grille emblem |
| 3 | 86773-78311-000 | Emblem hatch |
| 4 | 86842-78400-000 | Emblem, "800" |
| 5 | 09148-03008-000 | NUT |
| 6 | 86961-63501-000 | Emblen, load indicator |
| 7 | 86922-78407-000 | Emblem, air pressuer |
| 8 | 11951-78460-000 | Emblem, ignition fiming |
| 9 | 11952-75101-000 | Emblem, spark plug |
| 10 | 11954-79200-000 | Indicater, air cleaner |
| 11 | 11957-75102-000 | Emblem, engine oil & filler |
| 12 | 11955-78480-000 | Label, emission control |
| 13 | 17991-75101-000 | LABEL,ENGINE COOLING FAN |
| 14 | 17999-75101-000 | Label, reserve tank |
| 14 | 17998-82012-000 | LABEL,RESERVOIR LEVEL |
| 15 | 86711-78401-000 | Emblem, front grille |
| 16 | 86834-78400-000 | Emblem, "vx" |
| 17 | 86842-78200-000 | Emblem, automatic |
| OEM | Part name | Category |
|---|---|---|
| 09148-03008-000 | NUT | Emblem (EMBLEM) |
| 11951-78460-000 | Emblem, ignition fiming | Emblem (EMBLEM) |
| 11952-75101-000 | Emblem, spark plug | Emblem (EMBLEM) |
| 11954-79200-000 | Indicater, air cleaner | Emblem (EMBLEM) |
| 11955-78480-000 | Label, emission control | Emblem (EMBLEM) |
| 11957-75102-000 | Emblem, engine oil & filler | Emblem (EMBLEM) |
| 17991-75101-000 | LABEL,ENGINE COOLING FAN | Emblem (EMBLEM) |
| 17998-82012-000 | LABEL,RESERVOIR LEVEL | Emblem (EMBLEM) |
| 17999-75101-000 | Label, reserve tank | Emblem (EMBLEM) |
| 86711-78401-000 | Emblem, front grille | Emblem (EMBLEM) |
| 86712-78400-000 | Emblem, front grille | Emblem (EMBLEM) |
| 86712-78410-000 | Emblem, "800" | Emblem (EMBLEM) |
| 86716-78400-000 | Retainer, front grille emblem | Emblem (EMBLEM) |
| 86773-78311-000 | Emblem hatch | Emblem (EMBLEM) |
| 86834-78400-000 | Emblem, "vx" | Emblem (EMBLEM) |
| 86842-78200-000 | Emblem, automatic | Emblem (EMBLEM) |
| 86842-78400-000 | Emblem, "800" | Emblem (EMBLEM) |
| 86922-78407-000 | Emblem, air pressuer | Emblem (EMBLEM) |
| 86961-63501-000 | Emblen, load indicator | Emblem (EMBLEM) |
