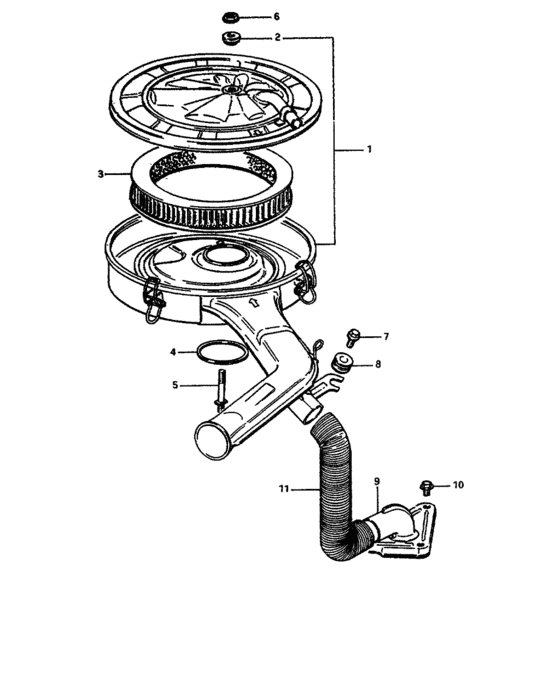

Air cleaner (TYPE 1/2)
17
| # | OEM | Part name |
|---|
| 1 |
13701-78401-000 |
Case assy, air cleaner |
| 1 |
13700-81X52-000 |
CLEANER ASSY,AIR |
| 2 |
13878-78100-000 |
GROMMET,AIR CLEANER |
| 3 |
13780-78100-000 |
ELEMENT,AIR CLEANER |
| 4 |
13879-78100-000 |
Gasket, air cleaner |
| 4 |
13879-81050-000 |
GASKET,CARB UPR |
| 5 |
09108-06036-000 |
BOLT,STUD |
| 6 |
08316-16066-000 |
Nut |
| 6 |
08316-1006B-000 |
NUT |
| 7 |
01517-06168-000 |
Bolt |
| 7 |
01550-06167-000 |
Bolt |
| 8 |
09320-06013-000 |
Cushion |
| 9 |
13830-78400-000 |
Cover, warm air |
| 9 |
13830-84300-000 |
COVER,WARM AIR |
| 10 |
01517-06108-000 |
Bolt 6x10 hexagon |
| 10 |
01550-06107-000 |
Bolt |
| 11 |
13841-60050-000 |
HOSE,WARM AIR |
| OEM |
Part name |
Category |
| 01517-06108-000 |
Bolt 6x10 hexagon |
Air cleaner (TYPE 1/2) |
| 01517-06168-000 |
Bolt |
Air cleaner (TYPE 1/2) |
| 01550-06107-000 |
Bolt |
Air cleaner (TYPE 1/2) |
| 01550-06167-000 |
Bolt |
Air cleaner (TYPE 1/2) |
| 08316-1006B-000 |
NUT |
Air cleaner (TYPE 1/2) |
| 08316-16066-000 |
Nut |
Air cleaner (TYPE 1/2) |
| 09108-06036-000 |
BOLT,STUD |
Air cleaner (TYPE 1/2) |
| 09320-06013-000 |
Cushion |
Air cleaner (TYPE 1/2) |
| 13700-81X52-000 |
CLEANER ASSY,AIR |
Air cleaner (TYPE 1/2) |
| 13701-78401-000 |
Case assy, air cleaner |
Air cleaner (TYPE 1/2) |
| 13780-78100-000 |
ELEMENT,AIR CLEANER |
Air cleaner (TYPE 1/2) |
| 13830-78400-000 |
Cover, warm air |
Air cleaner (TYPE 1/2) |
| 13830-84300-000 |
COVER,WARM AIR |
Air cleaner (TYPE 1/2) |
| 13841-60050-000 |
HOSE,WARM AIR |
Air cleaner (TYPE 1/2) |
| 13878-78100-000 |
GROMMET,AIR CLEANER |
Air cleaner (TYPE 1/2) |
| 13879-78100-000 |
Gasket, air cleaner |
Air cleaner (TYPE 1/2) |
| 13879-81050-000 |
GASKET,CARB UPR |
Air cleaner (TYPE 1/2) |
