Search › Model › SS80G

SS80G

Suzuki ALTO-A-STAR-CELERIO · 3,387 parts · 106 categories

3,387 items

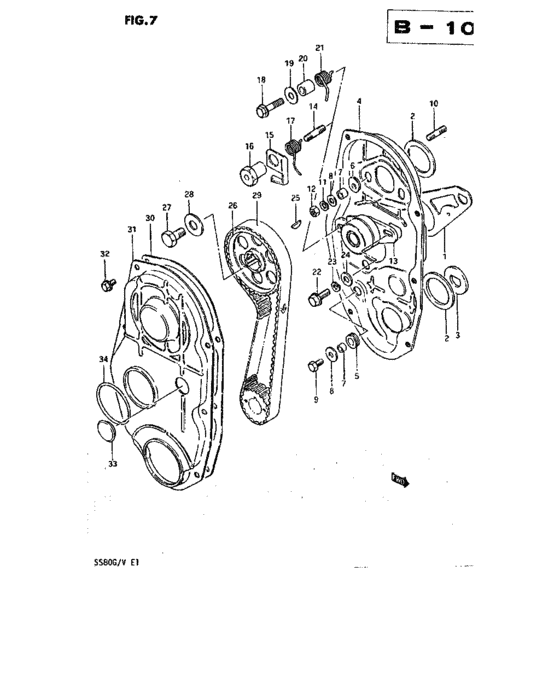

Timing belt (TIMING BELT) 58

#	OEM	Part name
1	11482-73002-000	Cushion seal, no.2
1	11482-73004-000	クッション,シールNO.2
2	11483-73001-000	シール,タイミングベルト,NO.3
2	11480-78110-000	SEAL SET,TIMING COVER INSIDE
2	11300-53831-000	SEAL SET,TIMING BELT COVER
3	11485-73000-000	シール,タイミングカバーインサイド
4	11380-78101-000	Cover, timing belt inside
4	11360-78100-000	COVER,TIMING BELT INSIDE
5	09308-10004-000	GROMMET
6	11398-73000-000	GROMMET,COVER
7	09180-06106-000	SPACER(6.8X10X7)
8	09160-06027-000	Washer (6.5x20x1.2)
8	09160-06077-000	WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)
9	01107-06208-000	Bolt
9	01500-06207-000	Bolt
10	01411-06208-000	Stud bolt
10	01411-0620A-000	BOLT,STUD
11	08321-31068-000	Lock washer
11	08321-01067-000	WASHER,LOCK
12	08310-11068-000	Nut
12	08310-00067-000	NUT
13	12810-73003-000	Tensioner assy, timing belt
13	12810-53A00-000	TENSIONER ASSY,TIMING BELT
14	01421-08208-000	8 x 20 stud bol - Stud bolt
14	01421-0820A-000	BOLT,STUD
15	12823-73000-000	BRACKET,TENSIONER
16	12822-73000-000	NUT,TENSIONER
17	12821-73000-000	Spring,tensioner
18	01517-08406-000	Bolt
18	01550-0840B-000	Bolt
18	01550-0840A-000	Bolt
19	09160-08075-000	ワッシャ,8.2X26X1.6
19	09160-08151-000	WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6)
20	09180-08111-000	SPACER(8.1X16X17) - Spacer, front
21	12821-78100-000	SPRING,TENSIONER
22	01517-08256-000	Bolt
22	01550-0825B-000	Bolt
22	01550-0825A-000	Bolt
23	08321-31088-000	Lock washer
23	08321-01087-000	WASHER,LOCK - Washer, lock
24	09160-08033-000	Cl rel arm washer rh
24	09160-08126-000	WASHER(8.5X20X2.6)
25	08341-31059-000	KEY
26	12741-78400-000	Pulley, cam shaft timing belt
26	12741-78403-000	PULLEY,CAMSHAFT TIMING BELT
27	01107-12256-000	Bolt
27	01500-1225A-000	Bolt
28	09160-12043-000	Washer (12.5x32x4.5)
28	09160-12094-000	WASHER(12.5X32X4.5) - Washer (12.5x32x4.5)
29	12761-78400-000	BELT,TIMING
30	11399-73010-000	GASKET,TIMING BELT COVER
31	11391-73001-000	Cover, timing belt outside
31	11391-78113-000	COVER,TIMING BELT OUTSIDE
32	01517-06108-000	Bolt 6x10 hexagon
32	01550-06107-000	Bolt
33	09250-26003-000	CAP(OD:32) - Plug, clutch hole
33	09250-26006-000	Cap(Od:32)
34	11484-73000-000	GROMMET,COVER OUTSIDE

OEM	Part name	Category
01107-06208-000	Bolt	Timing belt (TIMING BELT)
01107-12256-000	Bolt	Timing belt (TIMING BELT)
01411-06208-000	Stud bolt	Timing belt (TIMING BELT)
01411-0620A-000	BOLT,STUD	Timing belt (TIMING BELT)
01421-08208-000	8 x 20 stud bol - Stud bolt	Timing belt (TIMING BELT)
01421-0820A-000	BOLT,STUD	Timing belt (TIMING BELT)
01500-06207-000	Bolt	Timing belt (TIMING BELT)
01500-1225A-000	Bolt	Timing belt (TIMING BELT)
01517-06108-000	Bolt 6x10 hexagon	Timing belt (TIMING BELT)
01517-08256-000	Bolt	Timing belt (TIMING BELT)
01517-08406-000	Bolt	Timing belt (TIMING BELT)
01550-06107-000	Bolt	Timing belt (TIMING BELT)
01550-0825A-000	Bolt	Timing belt (TIMING BELT)
01550-0825B-000	Bolt	Timing belt (TIMING BELT)
01550-0840A-000	Bolt	Timing belt (TIMING BELT)
01550-0840B-000	Bolt	Timing belt (TIMING BELT)
08310-00067-000	NUT	Timing belt (TIMING BELT)
08310-11068-000	Nut	Timing belt (TIMING BELT)
08321-01067-000	WASHER,LOCK	Timing belt (TIMING BELT)
08321-01087-000	WASHER,LOCK - Washer, lock	Timing belt (TIMING BELT)
08321-31068-000	Lock washer	Timing belt (TIMING BELT)
08321-31088-000	Lock washer	Timing belt (TIMING BELT)
08341-31059-000	KEY	Timing belt (TIMING BELT)
09160-06027-000	Washer (6.5x20x1.2)	Timing belt (TIMING BELT)
09160-06077-000	WASHER(6.5X20X1.2) - Washer (6.5x20x1.2)	Timing belt (TIMING BELT)
09160-08033-000	Cl rel arm washer rh	Timing belt (TIMING BELT)
09160-08075-000	ワッシャ,8.2X26X1.6	Timing belt (TIMING BELT)
09160-08126-000	WASHER(8.5X20X2.6)	Timing belt (TIMING BELT)
09160-08151-000	WASHER(8.5X26X1.6) - Washer, shift rod (8.5x26x1.6)	Timing belt (TIMING BELT)
09160-12043-000	Washer (12.5x32x4.5)	Timing belt (TIMING BELT)
09160-12094-000	WASHER(12.5X32X4.5) - Washer (12.5x32x4.5)	Timing belt (TIMING BELT)
09180-06106-000	SPACER(6.8X10X7)	Timing belt (TIMING BELT)
09180-08111-000	SPACER(8.1X16X17) - Spacer, front	Timing belt (TIMING BELT)
09250-26003-000	CAP(OD:32) - Plug, clutch hole	Timing belt (TIMING BELT)
09250-26006-000	Cap(Od:32)	Timing belt (TIMING BELT)
09308-10004-000	GROMMET	Timing belt (TIMING BELT)
11300-53831-000	SEAL SET,TIMING BELT COVER	Timing belt (TIMING BELT)
11360-78100-000	COVER,TIMING BELT INSIDE	Timing belt (TIMING BELT)
11380-78101-000	Cover, timing belt inside	Timing belt (TIMING BELT)
11391-73001-000	Cover, timing belt outside	Timing belt (TIMING BELT)
11391-78113-000	COVER,TIMING BELT OUTSIDE	Timing belt (TIMING BELT)
11398-73000-000	GROMMET,COVER	Timing belt (TIMING BELT)
11399-73010-000	GASKET,TIMING BELT COVER	Timing belt (TIMING BELT)
11480-78110-000	SEAL SET,TIMING COVER INSIDE	Timing belt (TIMING BELT)
11482-73002-000	Cushion seal, no.2	Timing belt (TIMING BELT)
11482-73004-000	クッション,シールNO.2	Timing belt (TIMING BELT)
11483-73001-000	シール,タイミングベルト,NO.3	Timing belt (TIMING BELT)
11484-73000-000	GROMMET,COVER OUTSIDE	Timing belt (TIMING BELT)
11485-73000-000	シール,タイミングカバーインサイド	Timing belt (TIMING BELT)
12741-78400-000	Pulley, cam shaft timing belt	Timing belt (TIMING BELT)
12741-78403-000	PULLEY,CAMSHAFT TIMING BELT	Timing belt (TIMING BELT)
12761-78400-000	BELT,TIMING	Timing belt (TIMING BELT)
12810-53A00-000	TENSIONER ASSY,TIMING BELT	Timing belt (TIMING BELT)
12810-73003-000	Tensioner assy, timing belt	Timing belt (TIMING BELT)
12821-73000-000	Spring,tensioner	Timing belt (TIMING BELT)
12821-78100-000	SPRING,TENSIONER	Timing belt (TIMING BELT)
12822-73000-000	NUT,TENSIONER	Timing belt (TIMING BELT)
12823-73000-000	BRACKET,TENSIONER	Timing belt (TIMING BELT)
