| 02112-05087-000 |
SCREW |

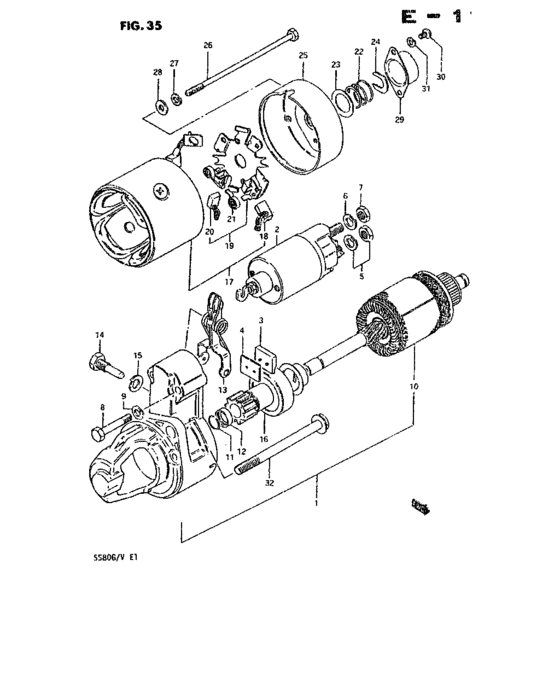

Starting motor (TYPE 1,TYPE 2:MT) |
| 02112-05088-000 |
Screw |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08310-00087-000 |
NUT |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08310-12088-000 |
Nut |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08321-0105A-000 |
WASHER,LOCK |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08321-01067-000 |
WASHER,LOCK |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08321-01087-000 |
WASHER,LOCK - Washer, lock |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08321-21058-000 |
Lock washer |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08321-21068-000 |
Lock washer |
Starting motor (TYPE 1,TYPE 2:MT) |
| 08321-21088-000 |
Lock washer |
Starting motor (TYPE 1,TYPE 2:MT) |
| 09103-08024-000 |
Bolt, engine mounting no.3 |
Starting motor (TYPE 1,TYPE 2:MT) |
| 09103-08134-000 |
BOLT(8X110) - Bolt, collector no.1 |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31100-78010-000 |
Motor assy, starting |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31110-74010-000 |
Yoke assy |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31131-55011-000 |
Brush |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31135-55010-000 |
Spring, brush |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31170-55012-000 |
Housing assy, end |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31170-72031-000 |
Housing, commutator end |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31173-63210-000 |
Holder, brush |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31174-56010-000 |
Cap, end |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31191-56010-000 |
Lever, pinion drive |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31191-80090-000 |
Lever |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31192-76010-000 |
Pin |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31220-73010-000 |
Switch assy |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31254-56010-000 |
Seal, switch rubber |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31255-56010-000 |
Plate, switch |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31255-63210-000 |
Screw, switch |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31263-55010-000 |
Washer |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31266-51011-000 |
Nut, terminal |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31281-63210-000 |
Bolt, housing |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31311-74010-000 |
Armature |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31312-55010-000 |
RING,SNAP |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31313-55010-000 |
RING,SNAP |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31320-76010-000 |
Clutch assy |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31363-55010-000 |
Thrust washer |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31371-56010-000 |
Spring |
Starting motor (TYPE 1,TYPE 2:MT) |
| 31372-56010-000 |
Plate |
Starting motor (TYPE 1,TYPE 2:MT) |
