SS80F

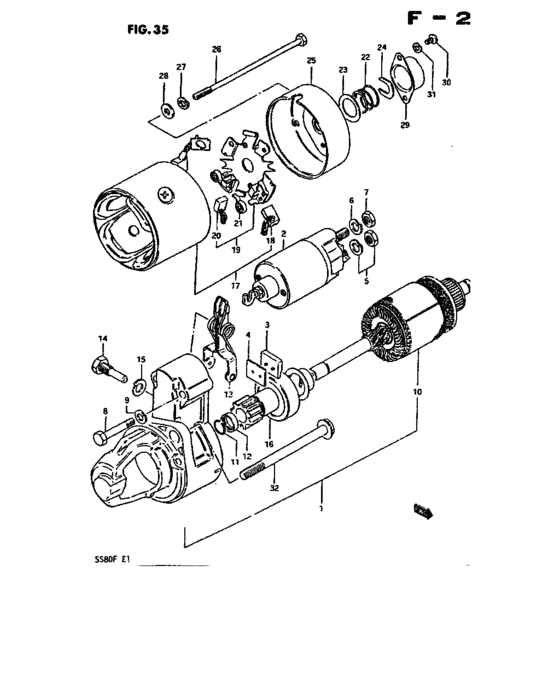

Starting motor (MT) 36
| # | OEM | Part name |
|---|---|---|
| 1 | 31100-78010-000 | Motor assy, starting |
| 2 | 31220-73010-000 | Switch assy |
| 3 | 31254-56010-000 | Seal, switch rubber |
| 4 | 31255-56010-000 | Plate, switch |
| 5 | 31266-51011-000 | Nut, terminal |
| 6 | 08321-21088-000 | Lock washer |
| 6 | 08321-01087-000 | WASHER,LOCK - Washer, lock |
| 7 | 08310-12088-000 | Nut |
| 7 | 08310-00087-000 | NUT |
| 8 | 31255-63210-000 | Screw, switch |
| 9 | 08321-21068-000 | Lock washer |
| 9 | 08321-01067-000 | WASHER,LOCK |
| 10 | 31311-74010-000 | Armature |
| 11 | 31312-55010-000 | RING,SNAP |
| 12 | 31313-55010-000 | RING,SNAP |
| 13 | 31191-56010-000 | Lever, pinion drive |
| 13 | 31191-80090-000 | Lever |
| 14 | 31192-76010-000 | Pin |
| 16 | 31320-76010-000 | Clutch assy |
| 17 | 31110-74010-000 | Yoke assy |
| 18 | 31131-55011-000 | Brush |
| 19 | 31173-63210-000 | Holder, brush |
| 21 | 31135-55010-000 | Spring, brush |
| 22 | 31371-56010-000 | Spring |
| 23 | 31363-55010-000 | Thrust washer |
| 24 | 31372-56010-000 | Plate |
| 25 | 31170-55012-000 | Housing assy, end |
| 25 | 31170-72031-000 | Housing, commutator end |
| 26 | 31281-63210-000 | Bolt, housing |
| 27 | 08321-21058-000 | Lock washer |
| 27 | 08321-0105A-000 | WASHER,LOCK |
| 28 | 31263-55010-000 | Washer |
| 29 | 31174-56010-000 | Cap, end |
| 30 | 02112-05088-000 | Screw |
| 30 | 02112-05087-000 | SCREW |
| 32 | 09103-08122-000 | BOLT(8X110) - Bolt (8*110) |
| OEM | Part name | Category |
|---|---|---|
| 02112-05087-000 | SCREW | Starting motor (MT) |
| 02112-05088-000 | Screw | Starting motor (MT) |
| 08310-00087-000 | NUT | Starting motor (MT) |
| 08310-12088-000 | Nut | Starting motor (MT) |
| 08321-0105A-000 | WASHER,LOCK | Starting motor (MT) |
| 08321-01067-000 | WASHER,LOCK | Starting motor (MT) |
| 08321-01087-000 | WASHER,LOCK - Washer, lock | Starting motor (MT) |
| 08321-21058-000 | Lock washer | Starting motor (MT) |
| 08321-21068-000 | Lock washer | Starting motor (MT) |
| 08321-21088-000 | Lock washer | Starting motor (MT) |
| 09103-08122-000 | BOLT(8X110) - Bolt (8*110) | Starting motor (MT) |
| 31100-78010-000 | Motor assy, starting | Starting motor (MT) |
| 31110-74010-000 | Yoke assy | Starting motor (MT) |
| 31131-55011-000 | Brush | Starting motor (MT) |
| 31135-55010-000 | Spring, brush | Starting motor (MT) |
| 31170-55012-000 | Housing assy, end | Starting motor (MT) |
| 31170-72031-000 | Housing, commutator end | Starting motor (MT) |
| 31173-63210-000 | Holder, brush | Starting motor (MT) |
| 31174-56010-000 | Cap, end | Starting motor (MT) |
| 31191-56010-000 | Lever, pinion drive | Starting motor (MT) |
| 31191-80090-000 | Lever | Starting motor (MT) |
| 31192-76010-000 | Pin | Starting motor (MT) |
| 31220-73010-000 | Switch assy | Starting motor (MT) |
| 31254-56010-000 | Seal, switch rubber | Starting motor (MT) |
| 31255-56010-000 | Plate, switch | Starting motor (MT) |
| 31255-63210-000 | Screw, switch | Starting motor (MT) |
| 31263-55010-000 | Washer | Starting motor (MT) |
| 31266-51011-000 | Nut, terminal | Starting motor (MT) |
| 31281-63210-000 | Bolt, housing | Starting motor (MT) |
| 31311-74010-000 | Armature | Starting motor (MT) |
| 31312-55010-000 | RING,SNAP | Starting motor (MT) |
| 31313-55010-000 | RING,SNAP | Starting motor (MT) |
| 31320-76010-000 | Clutch assy | Starting motor (MT) |
| 31363-55010-000 | Thrust washer | Starting motor (MT) |
| 31371-56010-000 | Spring | Starting motor (MT) |
| 31372-56010-000 | Plate | Starting motor (MT) |
