SS80F

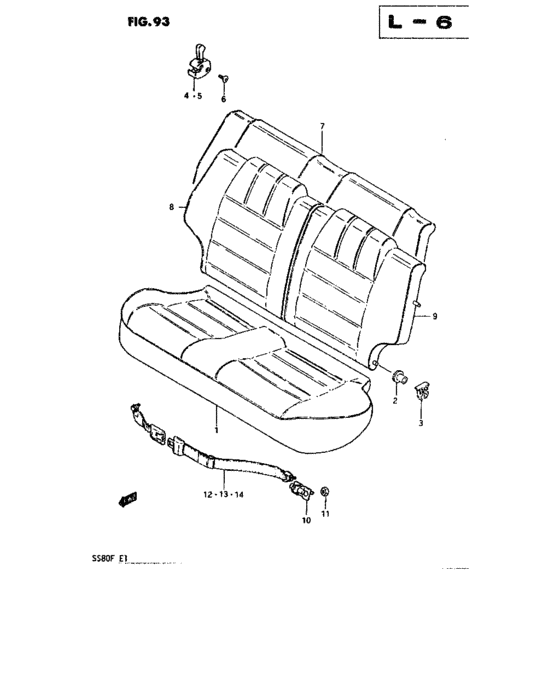

Rear seat (REAR SEAT) 32
| # | OEM | Part name |
|---|---|---|
| 1 | 83001-78000-69B | Cushion assy, rear seat black |
| 1 | 83001-78000-80M | Cushion assy, rear seat brown |
| 1 | 83001-78030-69B | Cushion assy, rear seat |
| 1 | 83001-78010-93G | Cushion assy, rear |
| 1 | 83001-78000-93G | Cushion assy, rear |
| 1 | 83001-78030-93G | Cushion assy, rear |
| 2 | 09306-08011-000 | Bush |
| 3 | 84378-78001-000 | Clamp, seat back hinge |
| 4 | 84330-78001-281 | Lock assy,rr seat rh |
| 5 | 84340-78001-281 | LOCK ASSY,RR SEAT BACK,L |
| 6 | 09127-06004-000 | Screw |
| 7 | 83004-78010-93G | Back assy, rear seat |
| 8 | 83004-78000-69B | Back assy, rear seat rh |
| 8 | 83004-78000-80M | Back assy, rear seat rh |
| 8 | 83004-78030-69B | Back assy, rear seat rh |
| 8 | 83004-78000-93G | Back assy, rear seat rh |
| 8 | 83004-78030-93G | Back assy, rear seat rh |
| 9 | 83005-78000-69B | Back assy, rear seat lh |
| 9 | 83005-78000-80M | Back assy, rear seat lh |
| 9 | 83005-78030-69B | Back assy, rear seat lh |
| 9 | 83005-78000-93G | Back assy, rear seat, lh |
| 9 | 83005-78030-93G | Back assy, rear seat, lh |
| 10 | 84350-78000-000 | Bracket, center hinge |
| 10 | 87860-84000-000 | HINGE,RR BACK,CTR |
| 11 | 08316-26068-000 | Nut |
| 11 | 08316-2006A-000 | NUT |
| 12 | 87304-78020-382 | Seat belt, rear |
| 12 | 87304-78021-48N | Seat belt, rear |
| 13 | 87304-78400-382 | Seat belt, rear |
| 13 | 87304-78400-48N | Seat belt, rear |
| 14 | 87304-78410-382 | Seat belt, rear |
| 14 | 87304-78410-48N | Seat belt, rear |
| OEM | Part name | Category |
|---|---|---|
| 08316-2006A-000 | NUT | Rear seat (REAR SEAT) |
| 08316-26068-000 | Nut | Rear seat (REAR SEAT) |
| 09127-06004-000 | Screw | Rear seat (REAR SEAT) |
| 09306-08011-000 | Bush | Rear seat (REAR SEAT) |
| 83001-78000-69B | Cushion assy, rear seat black | Rear seat (REAR SEAT) |
| 83001-78000-80M | Cushion assy, rear seat brown | Rear seat (REAR SEAT) |
| 83001-78000-93G | Cushion assy, rear | Rear seat (REAR SEAT) |
| 83001-78010-93G | Cushion assy, rear | Rear seat (REAR SEAT) |
| 83001-78030-69B | Cushion assy, rear seat | Rear seat (REAR SEAT) |
| 83001-78030-93G | Cushion assy, rear | Rear seat (REAR SEAT) |
| 83004-78000-69B | Back assy, rear seat rh | Rear seat (REAR SEAT) |
| 83004-78000-80M | Back assy, rear seat rh | Rear seat (REAR SEAT) |
| 83004-78000-93G | Back assy, rear seat rh | Rear seat (REAR SEAT) |
| 83004-78010-93G | Back assy, rear seat | Rear seat (REAR SEAT) |
| 83004-78030-69B | Back assy, rear seat rh | Rear seat (REAR SEAT) |
| 83004-78030-93G | Back assy, rear seat rh | Rear seat (REAR SEAT) |
| 83005-78000-69B | Back assy, rear seat lh | Rear seat (REAR SEAT) |
| 83005-78000-80M | Back assy, rear seat lh | Rear seat (REAR SEAT) |
| 83005-78000-93G | Back assy, rear seat, lh | Rear seat (REAR SEAT) |
| 83005-78030-69B | Back assy, rear seat lh | Rear seat (REAR SEAT) |
| 83005-78030-93G | Back assy, rear seat, lh | Rear seat (REAR SEAT) |
| 84330-78001-281 | Lock assy,rr seat rh | Rear seat (REAR SEAT) |
| 84340-78001-281 | LOCK ASSY,RR SEAT BACK,L | Rear seat (REAR SEAT) |
| 84350-78000-000 | Bracket, center hinge | Rear seat (REAR SEAT) |
| 84378-78001-000 | Clamp, seat back hinge | Rear seat (REAR SEAT) |
| 87304-78020-382 | Seat belt, rear | Rear seat (REAR SEAT) |
| 87304-78021-48N | Seat belt, rear | Rear seat (REAR SEAT) |
| 87304-78400-382 | Seat belt, rear | Rear seat (REAR SEAT) |
| 87304-78400-48N | Seat belt, rear | Rear seat (REAR SEAT) |
| 87304-78410-382 | Seat belt, rear | Rear seat (REAR SEAT) |
| 87304-78410-48N | Seat belt, rear | Rear seat (REAR SEAT) |
| 87860-84000-000 | HINGE,RR BACK,CTR | Rear seat (REAR SEAT) |
