Search › Model › SS80F

SS80F

Suzuki ALTO-A-STAR-CELERIO · 3,125 parts · 104 categories

3,125 items

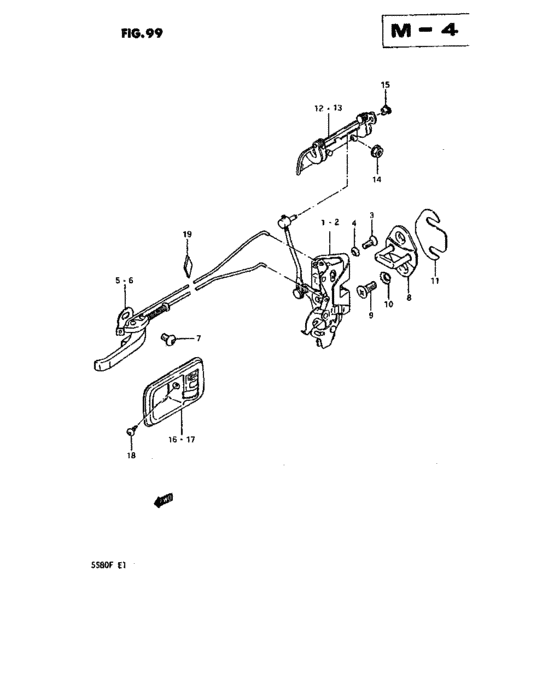

Rear door lock (REAR DOOR LOCK) 34

#	OEM	Part name
1	77103-78010-000	Lock assy, rear door rh
1	77103-78100-000	Lock assy, rear door rh
2	77104-78010-000	Lock assy, rear door lh
2	77104-78100-000	Lock assy, rear door lh
3	02122-06168-000	Screw
3	02122-06167-000	SCREW
4	08323-31068-000	Lock washer
4	08323-3106A-000	WASHER,LOCK
5	77640-78000-281	Handle, lock inside rh
5	77640-78000-49F	Handle, lock inside rh
5	77640-78400-281	Handle, lock inside rh
5	77640-78400-49F	Handle, lock inside rh
6	77660-78000-281	Handle, lock inside lh
6	77660-78000-49F	Handle, lock inside lh
6	77660-78400-281	Handle, lock inside lh
6	77660-78400-49F	Handle, lock inside lh
7	02142-06108-000	6 x 10 screw
7	02142-06107-000	SCREW
8	78110-78000-000	STRIKER,DOOR LOCK
9	09128-08002-000	Bolt - Screw
9	09137-08002-000	BOLT(8X27)
10	08323-31088-000	Washer,lock
10	09163-08002-000	WASHER,LOCK - Rondelle
11	78199-78000-000	SPACER,DOOR LOCK STRIKER
12	78310-78001-000	Handle,fr door outside rh
13	78320-78001-000	HANDLE,OUTSIDE,L
14	08316-26068-000	Nut
14	08316-2006A-000	NUT
15	78391-78000-000	SNAP.JOINT
16	78471-78000-281	CASE,INSIDE HANDLE,R
17	78481-78000-281	CASE,INSIDE HANDLE,L
18	03141-04085-000	New Genuine Part
18	03141-0408A-000	SCREW
19	77591-75000-000	PAD

OEM	Part name	Category
02122-06167-000	SCREW	Rear door lock (REAR DOOR LOCK)
02122-06168-000	Screw	Rear door lock (REAR DOOR LOCK)
02142-06107-000	SCREW	Rear door lock (REAR DOOR LOCK)
02142-06108-000	6 x 10 screw	Rear door lock (REAR DOOR LOCK)
03141-04085-000	New Genuine Part	Rear door lock (REAR DOOR LOCK)
03141-0408A-000	SCREW	Rear door lock (REAR DOOR LOCK)
08316-2006A-000	NUT	Rear door lock (REAR DOOR LOCK)
08316-26068-000	Nut	Rear door lock (REAR DOOR LOCK)
08323-31068-000	Lock washer	Rear door lock (REAR DOOR LOCK)
08323-3106A-000	WASHER,LOCK	Rear door lock (REAR DOOR LOCK)
08323-31088-000	Washer,lock	Rear door lock (REAR DOOR LOCK)
09128-08002-000	Bolt - Screw	Rear door lock (REAR DOOR LOCK)
09137-08002-000	BOLT(8X27)	Rear door lock (REAR DOOR LOCK)
09163-08002-000	WASHER,LOCK - Rondelle	Rear door lock (REAR DOOR LOCK)
77103-78010-000	Lock assy, rear door rh	Rear door lock (REAR DOOR LOCK)
77103-78100-000	Lock assy, rear door rh	Rear door lock (REAR DOOR LOCK)
77104-78010-000	Lock assy, rear door lh	Rear door lock (REAR DOOR LOCK)
77104-78100-000	Lock assy, rear door lh	Rear door lock (REAR DOOR LOCK)
77591-75000-000	PAD	Rear door lock (REAR DOOR LOCK)
77640-78000-281	Handle, lock inside rh	Rear door lock (REAR DOOR LOCK)
77640-78000-49F	Handle, lock inside rh	Rear door lock (REAR DOOR LOCK)
77640-78400-281	Handle, lock inside rh	Rear door lock (REAR DOOR LOCK)
77640-78400-49F	Handle, lock inside rh	Rear door lock (REAR DOOR LOCK)
77660-78000-281	Handle, lock inside lh	Rear door lock (REAR DOOR LOCK)
77660-78000-49F	Handle, lock inside lh	Rear door lock (REAR DOOR LOCK)
77660-78400-281	Handle, lock inside lh	Rear door lock (REAR DOOR LOCK)
77660-78400-49F	Handle, lock inside lh	Rear door lock (REAR DOOR LOCK)
78110-78000-000	STRIKER,DOOR LOCK	Rear door lock (REAR DOOR LOCK)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Rear door lock (REAR DOOR LOCK)
78310-78001-000	Handle,fr door outside rh	Rear door lock (REAR DOOR LOCK)
78320-78001-000	HANDLE,OUTSIDE,L	Rear door lock (REAR DOOR LOCK)
78391-78000-000	SNAP.JOINT	Rear door lock (REAR DOOR LOCK)
78471-78000-281	CASE,INSIDE HANDLE,R	Rear door lock (REAR DOOR LOCK)
78481-78000-281	CASE,INSIDE HANDLE,L	Rear door lock (REAR DOOR LOCK)
