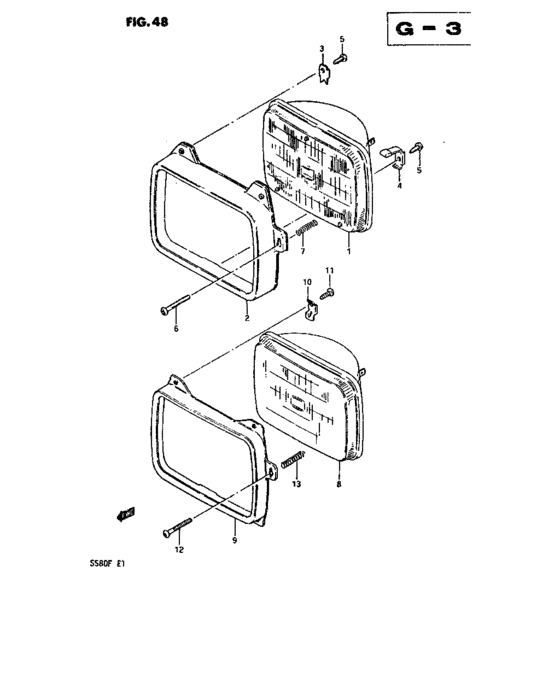

Headlamp (TYPE 3)
25
| # | OEM | Part name |
|---|
| 1 |
35121-81010-000 |
ユニット,ヘッドランプ |
| 1 |
35121-77301-000 |
UNIT,LAMP KOITO |
| 2 |
35131-78010-000 |
Rim,head lamp unit |
| 3 |
35136-78010-000 |
Plate,head lamp unit |
| 4 |
35137-78010-000 |
PLATE |
| 5 |
03212-04109-000 |
Screw 4x10 |
| 5 |
03211-0410B-000 |
SCREW |
| 6 |
35151-67020-000 |
Screw |
| 6 |
09136-05031-000 |
SCREW(5X35) |
| 7 |
35154-67020-000 |
Spring |
| 7 |
09440-09020-000 |
SPRING |
| 8 |
35121-78000-000 |
Headlamp |
| 8 |
35121-78020-000 |
Unit |
| 8 |
35121-82021-000 |
UNIT,LAMP |
| 8 |
35121-78030-000 |
Unit assy,head lamp |
| 8 |
35121-78040-000 |
UNIT ASSY,HEADLAMP |
| 8 |
35121-78050-000 |
UNIT ASSY,HEADLAMP |
| 9 |
35131-78020-000 |
Rim |
| 10 |
35132-78020-000 |
RETAINER |
| 11 |
02112-04088-000 |
Screw |
| 11 |
02112-04087-000 |
SCREW |
| 12 |
35151-78020-000 |
スクリュ,ヘッドランプ |
| 12 |
09122-45001-000 |
SCREW(5X45) |
| 13 |
35154-51030-000 |
スプリング |
| 13 |
35154-80C01-000 |
SPRING,HEADLAMP |
| OEM |
Part name |
Category |
| 02112-04087-000 |
SCREW |
Headlamp (TYPE 3) |
| 02112-04088-000 |
Screw |
Headlamp (TYPE 3) |
| 03211-0410B-000 |
SCREW |
Headlamp (TYPE 3) |
| 03212-04109-000 |
Screw 4x10 |
Headlamp (TYPE 3) |
| 09122-45001-000 |
SCREW(5X45) |
Headlamp (TYPE 3) |
| 09136-05031-000 |
SCREW(5X35) |
Headlamp (TYPE 3) |
| 09440-09020-000 |
SPRING |
Headlamp (TYPE 3) |
| 35121-77301-000 |
UNIT,LAMP KOITO |
Headlamp (TYPE 3) |
| 35121-78000-000 |
Headlamp |
Headlamp (TYPE 3) |
| 35121-78020-000 |
Unit |
Headlamp (TYPE 3) |
| 35121-78030-000 |
Unit assy,head lamp |
Headlamp (TYPE 3) |
| 35121-78040-000 |
UNIT ASSY,HEADLAMP |
Headlamp (TYPE 3) |
| 35121-78050-000 |
UNIT ASSY,HEADLAMP |
Headlamp (TYPE 3) |
| 35121-81010-000 |
ユニット,ヘッドランプ |
Headlamp (TYPE 3) |
| 35121-82021-000 |
UNIT,LAMP |
Headlamp (TYPE 3) |
| 35131-78010-000 |
Rim,head lamp unit |
Headlamp (TYPE 3) |
| 35131-78020-000 |
Rim |
Headlamp (TYPE 3) |
| 35132-78020-000 |
RETAINER |
Headlamp (TYPE 3) |
| 35136-78010-000 |
Plate,head lamp unit |
Headlamp (TYPE 3) |
| 35137-78010-000 |
PLATE |
Headlamp (TYPE 3) |
| 35151-67020-000 |
Screw |
Headlamp (TYPE 3) |
| 35151-78020-000 |
スクリュ,ヘッドランプ |
Headlamp (TYPE 3) |
| 35154-51030-000 |
スプリング |
Headlamp (TYPE 3) |
| 35154-67020-000 |
Spring |
Headlamp (TYPE 3) |
| 35154-80C01-000 |
SPRING,HEADLAMP |
Headlamp (TYPE 3) |
