SS80F

Suzuki ALTO-A-STAR-CELERIO · 3,125 parts · 104 categories
SS80F ×

← Back to categories

3,125 items

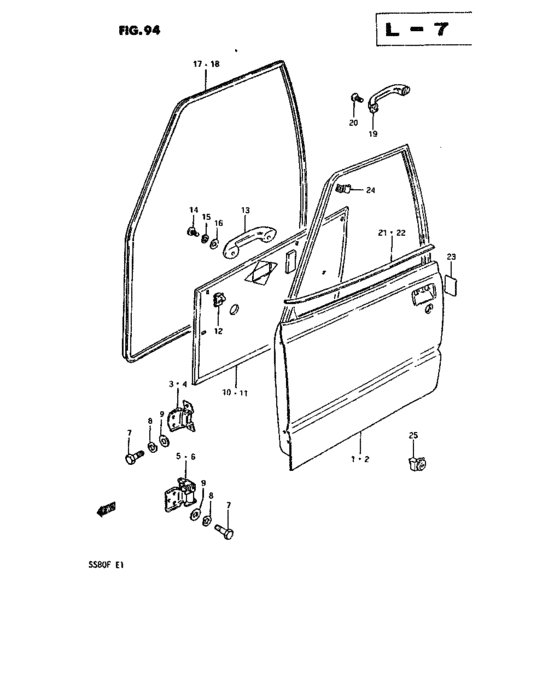

Front door panel (FRONT DOOR PANEL) 50
#OEMPart name
1 75001-78021-000 Panel, front door rh
1 75001-78120-000 Panel, front door rh
1 75001-78001-000 Panel, front door rh
1 09409-05307-5ES CLIP(BLACK)
1 09409-05306-000 Clip
1 75001-78100-000 Panel, front door rh
1 75001-78030-000 Panel, front door rh
1 75001-78130-000 Panel, front door rh
2 75002-78001-000 Panel, front door lh
2 75002-78100-000 Panel, front door lh
2 75002-78021-000 Panel, front door lh
2 75002-78120-000 Panel, front door lh
2 75002-78030-000 Panel, front door lh
2 75002-78130-000 Panel, front door lh
3 76110-78000-000 Hinge,door upper rh
4 76160-78000-000 Hinge, door upper lh
5 76120-78010-000 HINGE,DOOR LWR,R
6 76170-78010-000 Hinge, door lower lh
7 01107-08208-000 Bolt
7 01500-08207-000 Bolt
8 08321-21088-000 Lock washer
8 08321-01087-000 WASHER,LOCK - Washer, lock
9 08322-11088-000 Washer
9 08322-01087-000 WASHER - Lock washer
10 79210-78999-42A Trim, front door rh
10 79210-78999-46E Trim, front door rh
10 79210-78100-50M Trim, front door rh
11 79220-78999-42A Trim, front door lh
11 79220-78999-46E Trim, front door lh
11 79220-78100-50M Trim, front door lh
12 09409-08303-000 CLIP
13 86311-58300-281 アームレスト,ドア(ブラック)
13 86311-58300-5ES ARMREST,FR DR
13 86311-58300-49F Armrest - Beige
14 02112-06168-000 Screw, earth
14 02112-06167-000 SCREW
15 08321-21068-000 Lock washer
15 08321-01067-000 WASHER,LOCK
16 08322-21068-000 Washer
16 08322-01067-000 WASHER
17 79821-78000-000 Weatherstrip, door rh
18 79831-78000-000 Weatherstrip, door lh
19 86200-66811-281 Grip, assistant - Black
19 86200-6681V-5ES GRIP SET,ASSISTANT
20 09125-06041-000 SCREW(6X20)
21 86610-78000-000 Moul, door outside rh
22 86620-78000-000 Moul, door outside lh
23 86922-78005-000 Label, air pressure indicator
24 78861-78400-000 GUIDE,DR WINDOW GLASS
25 99000-79449-000 PLUG,KEY HOLE BLIND
