Search › Model › SS80AV
SS80AV

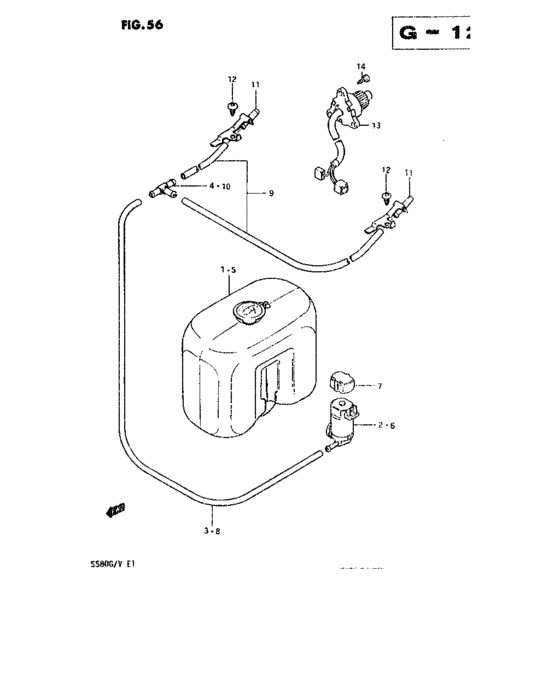

Washer (WASHER) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 38401-78012-000 | Tank assy, washer |
| 1 | 38450-67011-000 | TANK ASSY,WASHER |
| 2 | 38402-63000-000 | Pump assy |
| 2 | 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
| 2 | 38410-66112-000 | Pump assy, washer |
| 2 | 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer |
| 3 | 38490-78011-000 | Hose assy |
| 3 | 38490-78000-000 | Hose assy |
| 3 | 38490-78001-000 | Hose assy |
| 4 | 38496-58110-000 | JOINT |
| 5 | 38450-75001-000 | Tank assy,washer |
| 7 | 38837-79500-000 | CAP,WASHER MOTOR |
| 8 | 38491-69010-000 | Hose |
| 11 | 38480-78002-000 | Nozzle, window washer |
| 12 | 02112-05086-000 | Screw |
| 12 | 02112-0508A-000 | SCREW |
| 13 | 37310-71314-000 | Switch, front wiper & washer |
| 14 | 03211-05128-000 | Screw |
| 14 | 03212-0512B-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02112-05086-000 | Screw | Washer (WASHER) |
| 02112-0508A-000 | SCREW | Washer (WASHER) |
| 03211-05128-000 | Screw | Washer (WASHER) |
| 03212-0512B-000 | SCREW | Washer (WASHER) |
| 37310-71314-000 | Switch, front wiper & washer | Washer (WASHER) |
| 38401-78012-000 | Tank assy, washer | Washer (WASHER) |
| 38402-63000-000 | Pump assy | Washer (WASHER) |
| 38410-66112-000 | Pump assy, washer | Washer (WASHER) |
| 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer | Washer (WASHER) |
| 38450-67011-000 | TANK ASSY,WASHER | Washer (WASHER) |
| 38450-75001-000 | Tank assy,washer | Washer (WASHER) |
| 38480-78002-000 | Nozzle, window washer | Washer (WASHER) |
| 38490-78000-000 | Hose assy | Washer (WASHER) |
| 38490-78001-000 | Hose assy | Washer (WASHER) |
| 38490-78011-000 | Hose assy | Washer (WASHER) |
| 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) | Washer (WASHER) |
| 38491-69010-000 | Hose | Washer (WASHER) |
| 38496-58110-000 | JOINT | Washer (WASHER) |
| 38837-79500-000 | CAP,WASHER MOTOR | Washer (WASHER) |
