Search › Model › SS80AV
SS80AV

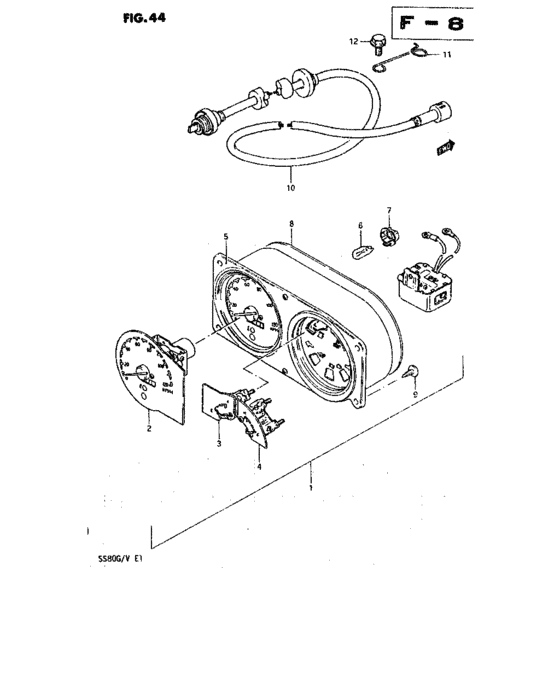

Speedometer (TYPE 3:RHD) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 34100-78540-000 | Speedometer assy - Kilo |
| 1 | 34100-78590-000 | Speedometer assy - Mile |
| 2 | 34120-78540-000 | Body, speedometer - Kilo |
| 2 | 34120-78590-000 | Body, speedometer - Mile |
| 3 | 34320-78500-000 | Body assy, fuel meter |
| 4 | 34420-78500-000 | Body assy, thermometer |
| 5 | 34152-78210-000 | Plate, meter print |
| 6 | 09471-12028-000 | BULB(12V3.4W,T10) |
| 7 | 34173-64010-000 | ソケット |
| 7 | 34172-50E10-000 | SOCKET |
| 8 | 34112-78200-000 | Plate, window |
| 9 | 03141-04208-000 | Screws |
| 9 | 03141-0420A-000 | SCREW |
| 10 | 34910-78002-000 | Cable assy, speedometer |
| 10 | 34910-78601-000 | CABLE ASSY,SPEEDOMETER |
| 11 | 09403-12403-000 | Clamp |
| 12 | 01517-06108-000 | Bolt 6x10 hexagon |
| 12 | 01550-06107-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01517-06108-000 | Bolt 6x10 hexagon | Speedometer (TYPE 3:RHD) |
| 01550-06107-000 | Bolt | Speedometer (TYPE 3:RHD) |
| 03141-04208-000 | Screws | Speedometer (TYPE 3:RHD) |
| 03141-0420A-000 | SCREW | Speedometer (TYPE 3:RHD) |
| 09403-12403-000 | Clamp | Speedometer (TYPE 3:RHD) |
| 09471-12028-000 | BULB(12V3.4W,T10) | Speedometer (TYPE 3:RHD) |
| 34100-78540-000 | Speedometer assy - Kilo | Speedometer (TYPE 3:RHD) |
| 34100-78590-000 | Speedometer assy - Mile | Speedometer (TYPE 3:RHD) |
| 34112-78200-000 | Plate, window | Speedometer (TYPE 3:RHD) |
| 34120-78540-000 | Body, speedometer - Kilo | Speedometer (TYPE 3:RHD) |
| 34120-78590-000 | Body, speedometer - Mile | Speedometer (TYPE 3:RHD) |
| 34152-78210-000 | Plate, meter print | Speedometer (TYPE 3:RHD) |
| 34172-50E10-000 | SOCKET | Speedometer (TYPE 3:RHD) |
| 34173-64010-000 | ソケット | Speedometer (TYPE 3:RHD) |
| 34320-78500-000 | Body assy, fuel meter | Speedometer (TYPE 3:RHD) |
| 34420-78500-000 | Body assy, thermometer | Speedometer (TYPE 3:RHD) |
| 34910-78002-000 | Cable assy, speedometer | Speedometer (TYPE 3:RHD) |
| 34910-78601-000 | CABLE ASSY,SPEEDOMETER | Speedometer (TYPE 3:RHD) |
