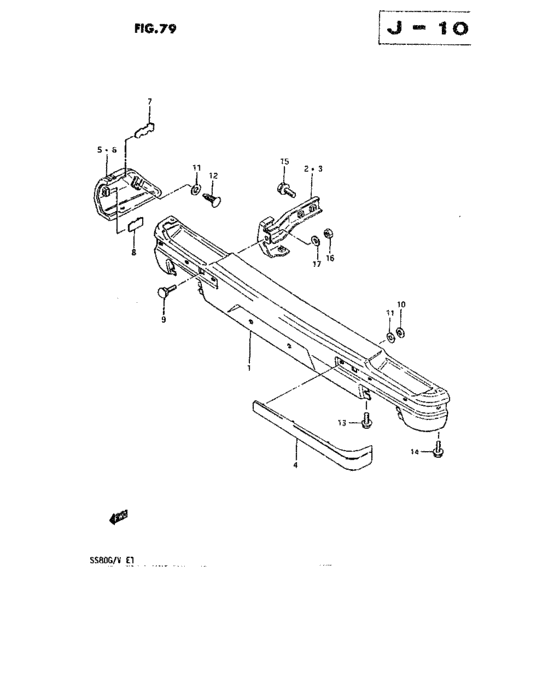

Front bumper (STEEL)
23
| # | OEM | Part name |
|---|
| 1 |
57410-78400-09D |
BUMPER,FR |
| 1 |
57410-78410-09D |
Bumper, front |
| 1 |
09148-05006-000 |
NUT |
| 1 |
57471-78000-281 |
PROTECTOR,FR BUMPER SIDE |
| 2 |
57440-78400-000 |
Stay, bumper rh |
| 3 |
57450-78400-000 |
Stay, bumper lh |
| 5 |
57481-78400-281 |
PAD,FRONT BUMPER SIDE,R |
| 6 |
57486-78400-281 |
PAD,FRONT BUMPER SIDE,L |
| 7 |
57584-78400-000 |
Clip |
| 8 |
57422-70400-000 |
CLIP |
| 9 |
57435-58000-000 |
Bolt, bumper |
| 9 |
57439-79003-000 |
BOLT,FR BUMPER |
| 11 |
09161-05007-000 |
WASHER(5.6X14X3) |
| 12 |
09409-10302-000 |
Clip - Black |
| 12 |
09409-10302-5PK |
CLIP(BLACK) |
| 13 |
01517-06128-000 |
Bolt |
| 13 |
01550-06127-000 |
Bolt - Bolt, rect |
| 15 |
01517-08128-000 |
Bolt |
| 15 |
01550-08127-000 |
Bolt - Bolt, clamp |
| 16 |
08310-11068-000 |
Nut |
| 16 |
08310-00067-000 |
NUT |
| 17 |
08322-11088-000 |
Washer |
| 17 |
08322-01087-000 |
WASHER - Lock washer |
| OEM |
Part name |
Category |
| 01517-06128-000 |
Bolt |
Front bumper (STEEL) |
| 01517-08128-000 |
Bolt |
Front bumper (STEEL) |
| 01550-06127-000 |
Bolt - Bolt, rect |
Front bumper (STEEL) |
| 01550-08127-000 |
Bolt - Bolt, clamp |
Front bumper (STEEL) |
| 08310-00067-000 |
NUT |
Front bumper (STEEL) |
| 08310-11068-000 |
Nut |
Front bumper (STEEL) |
| 08322-01087-000 |
WASHER - Lock washer |
Front bumper (STEEL) |
| 08322-11088-000 |
Washer |
Front bumper (STEEL) |
| 09148-05006-000 |
NUT |
Front bumper (STEEL) |
| 09161-05007-000 |
WASHER(5.6X14X3) |
Front bumper (STEEL) |
| 09409-10302-000 |
Clip - Black |
Front bumper (STEEL) |
| 09409-10302-5PK |
CLIP(BLACK) |
Front bumper (STEEL) |
| 57410-78400-09D |
BUMPER,FR |
Front bumper (STEEL) |
| 57410-78410-09D |
Bumper, front |
Front bumper (STEEL) |
| 57422-70400-000 |
CLIP |
Front bumper (STEEL) |
| 57435-58000-000 |
Bolt, bumper |
Front bumper (STEEL) |
| 57439-79003-000 |
BOLT,FR BUMPER |
Front bumper (STEEL) |
| 57440-78400-000 |
Stay, bumper rh |
Front bumper (STEEL) |
| 57450-78400-000 |
Stay, bumper lh |
Front bumper (STEEL) |
| 57471-78000-281 |
PROTECTOR,FR BUMPER SIDE |
Front bumper (STEEL) |
| 57481-78400-281 |
PAD,FRONT BUMPER SIDE,R |
Front bumper (STEEL) |
| 57486-78400-281 |
PAD,FRONT BUMPER SIDE,L |
Front bumper (STEEL) |
| 57584-78400-000 |
Clip |
Front bumper (STEEL) |
