Search › Model › SS80AG

SS80AG

Suzuki ALTO-A-STAR-CELERIO · 3,016 parts · 94 categories

3,016 items

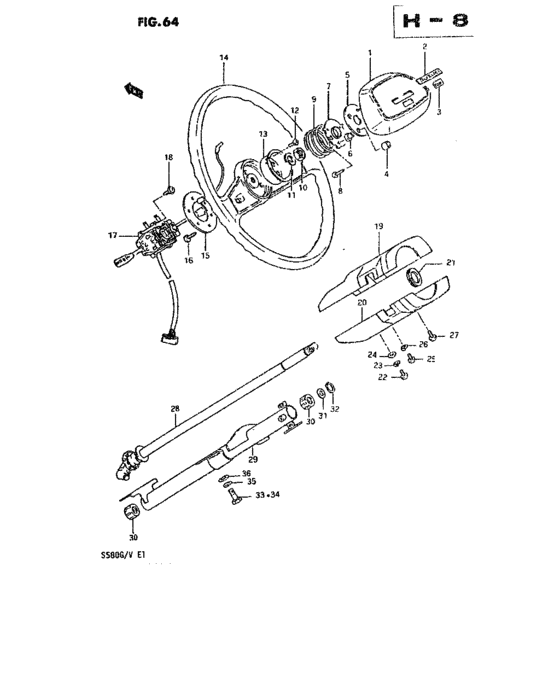

Steering wheel (TYPE 2) 62

#	OEM	Part name
1	48120-78000-281	Horn pad - Black
2	48131-78030-000	Emblem, horn pad
3	48131-67001-000	EMBLEM,HORN PAD
4	48145-60000-000	CUSHION,HORN CONTACT
5	48143-60000-000	PLATE,HORN CONTACT
6	48144-60000-000	INSULATOR,CONTACT PLATE
7	48142-60000-000	PLATE,HORN BUTTON SET
8	09131-03004-000	Screw
8	09132-03006-000	SCREW(3X20)
9	48151-70010-000	SPRING,HORN CONTACT
10	09140-12022-000	ナット
10	09159-12025-000	NUT
11	09162-12004-000	Lock washer
11	08321-0112A-000	WASHER,LOCK
12	02112-03068-000	Screw
12	02112-0306B-000	SCREW
13	48141-78100-000	CUP,HORN CONTACT
14	48110-78141-281	Wheel, steering
14	48100-79X00-281	Wheel assy,steering
14	48119-79000-281	ORNAMENT,STRG WHEEL
15	48152-78100-000	RING,HORN BUTTON SLIP
16	09131-03005-000	Screw
16	09132-03005-000	SCREW(3X10) - Screw, pan head (3x10)
17	37400-78302-000	Switch assy, combination
17	37400-80022-000	Switch assy, combination
17	37400-78521-000	SWITCH ASSY,COMB
17	37400-78402-000	Switch assy, combination
18	03141-04088-000	Screw, no.2
18	03141-0408A-000	SCREW
19	48411-78070-10C	Cover, steering upper
19	48411-78170-10C	Cover, steering upper
20	48421-78060-10C	Cover, steering lower
20	48421-78160-10C	Cover, steering lower
21	48419-75000-000	SEAL,STEERING COVER
22	02112-05128-000	Screw
22	02112-05127-000	SCREW - Screw, vacuum sw valve
23	08321-21058-000	Lock washer
23	08321-0105A-000	WASHER,LOCK
24	08322-21058-000	Washer
24	08322-01057-000	WASHER - Washer, front hook holder
27	03211-05168-000	Screw
27	03212-0516B-000	SCREW
27	13765-48GV0-000	Screw
28	48210-78360-000	Shaft, steering
28	48210-78370-000	Shaft, steering
29	48310-78360-000	Column, steering
29	48310-78340-000	Column, steering
29	48310-78370-000	Column, steering
30	48381-51040-000	BUSHING STEERING
30	48381-51041-000	BUSHING,STRG COLUMN
31	09160-17021-000	Washer
31	09160-17501-XC0	WASHER(17.5X34X2)
32	08331-31178-000	Circlip
32	08331-31179-000	CIRCLIP
33	01107-08258-000	Bolt
33	01500-08257-000	Bolt
34	01107-08308-000	Bolt
34	01500-08307-000	Bolt
35	08321-21088-000	Lock washer
35	08321-01087-000	WASHER,LOCK - Washer, lock
36	08322-11088-000	Washer
36	08322-01087-000	WASHER - Lock washer

OEM	Part name	Category
01107-08258-000	Bolt	Steering wheel (TYPE 2)
01107-08308-000	Bolt	Steering wheel (TYPE 2)
01500-08257-000	Bolt	Steering wheel (TYPE 2)
01500-08307-000	Bolt	Steering wheel (TYPE 2)
02112-03068-000	Screw	Steering wheel (TYPE 2)
02112-0306B-000	SCREW	Steering wheel (TYPE 2)
02112-05127-000	SCREW - Screw, vacuum sw valve	Steering wheel (TYPE 2)
02112-05128-000	Screw	Steering wheel (TYPE 2)
03141-04088-000	Screw, no.2	Steering wheel (TYPE 2)
03141-0408A-000	SCREW	Steering wheel (TYPE 2)
03211-05168-000	Screw	Steering wheel (TYPE 2)
03212-0516B-000	SCREW	Steering wheel (TYPE 2)
08321-0105A-000	WASHER,LOCK	Steering wheel (TYPE 2)
08321-01087-000	WASHER,LOCK - Washer, lock	Steering wheel (TYPE 2)
08321-0112A-000	WASHER,LOCK	Steering wheel (TYPE 2)
08321-21058-000	Lock washer	Steering wheel (TYPE 2)
08321-21088-000	Lock washer	Steering wheel (TYPE 2)
08322-01057-000	WASHER - Washer, front hook holder	Steering wheel (TYPE 2)
08322-01087-000	WASHER - Lock washer	Steering wheel (TYPE 2)
08322-11088-000	Washer	Steering wheel (TYPE 2)
08322-21058-000	Washer	Steering wheel (TYPE 2)
08331-31178-000	Circlip	Steering wheel (TYPE 2)
08331-31179-000	CIRCLIP	Steering wheel (TYPE 2)
09131-03004-000	Screw	Steering wheel (TYPE 2)
09131-03005-000	Screw	Steering wheel (TYPE 2)
09132-03005-000	SCREW(3X10) - Screw, pan head (3x10)	Steering wheel (TYPE 2)
09132-03006-000	SCREW(3X20)	Steering wheel (TYPE 2)
09140-12022-000	ナット	Steering wheel (TYPE 2)
09159-12025-000	NUT	Steering wheel (TYPE 2)
09160-17021-000	Washer	Steering wheel (TYPE 2)
09160-17501-XC0	WASHER(17.5X34X2)	Steering wheel (TYPE 2)
09162-12004-000	Lock washer	Steering wheel (TYPE 2)
13765-48GV0-000	Screw	Steering wheel (TYPE 2)
37400-78302-000	Switch assy, combination	Steering wheel (TYPE 2)
37400-78402-000	Switch assy, combination	Steering wheel (TYPE 2)
37400-78521-000	SWITCH ASSY,COMB	Steering wheel (TYPE 2)
37400-80022-000	Switch assy, combination	Steering wheel (TYPE 2)
48100-79X00-281	Wheel assy,steering	Steering wheel (TYPE 2)
48110-78141-281	Wheel, steering	Steering wheel (TYPE 2)
48119-79000-281	ORNAMENT,STRG WHEEL	Steering wheel (TYPE 2)
48120-78000-281	Horn pad - Black	Steering wheel (TYPE 2)
48131-67001-000	EMBLEM,HORN PAD	Steering wheel (TYPE 2)
48131-78030-000	Emblem, horn pad	Steering wheel (TYPE 2)
48141-78100-000	CUP,HORN CONTACT	Steering wheel (TYPE 2)
48142-60000-000	PLATE,HORN BUTTON SET	Steering wheel (TYPE 2)
48143-60000-000	PLATE,HORN CONTACT	Steering wheel (TYPE 2)
48144-60000-000	INSULATOR,CONTACT PLATE	Steering wheel (TYPE 2)
48145-60000-000	CUSHION,HORN CONTACT	Steering wheel (TYPE 2)
48151-70010-000	SPRING,HORN CONTACT	Steering wheel (TYPE 2)
48152-78100-000	RING,HORN BUTTON SLIP	Steering wheel (TYPE 2)
48210-78360-000	Shaft, steering	Steering wheel (TYPE 2)
48210-78370-000	Shaft, steering	Steering wheel (TYPE 2)
48310-78340-000	Column, steering	Steering wheel (TYPE 2)
48310-78360-000	Column, steering	Steering wheel (TYPE 2)
48310-78370-000	Column, steering	Steering wheel (TYPE 2)
48381-51040-000	BUSHING STEERING	Steering wheel (TYPE 2)
48381-51041-000	BUSHING,STRG COLUMN	Steering wheel (TYPE 2)
48411-78070-10C	Cover, steering upper	Steering wheel (TYPE 2)
48411-78170-10C	Cover, steering upper	Steering wheel (TYPE 2)
48419-75000-000	SEAL,STEERING COVER	Steering wheel (TYPE 2)
48421-78060-10C	Cover, steering lower	Steering wheel (TYPE 2)
48421-78160-10C	Cover, steering lower	Steering wheel (TYPE 2)
