SS80AF

Suzuki ALTO-A-STAR-CELERIO · 3,125 parts · 104 categories
SS80AF ×

← Back to categories

3,125 items

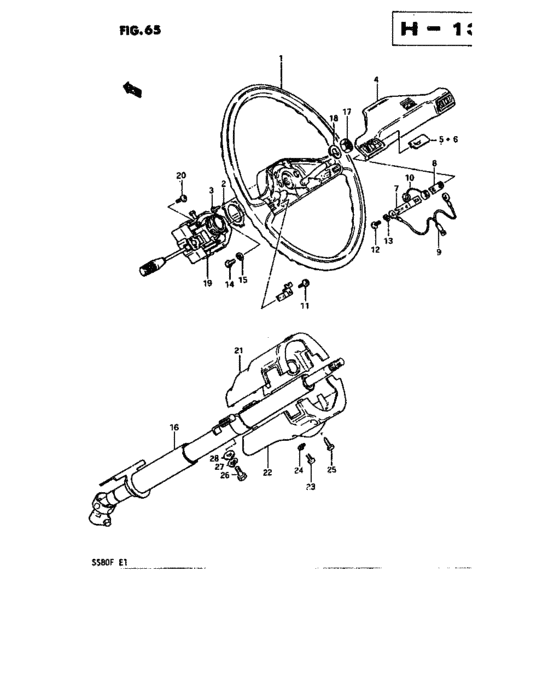

Steering wheel (Finland,Switzerland,Belgium,2,5,6,Austria,Morocco,South Sea Islands,Israel) 50
#OEMPart name
1 48110-78430-281 Wheel, steering
1 48110-78430-49N Wheel, steering
1 48130-84300-4BS COVER,STRG WHEEL
2 48152-78030-000 RING,HORN CONTACT
3 03111-03088-000 Screw
4 48121-78430-281 Pad, steering wheel
4 48121-78430-49N Pad, steering wheel
5 48123-78030-000 BUTTON,HORN,R
6 48124-78030-000 BUTTON,HORN,L
7 48125-78030-000 SPRING,CONTACT
8 48126-78030-000 SEAT ASSY
9 48127-78030-000 CORD
10 48128-78030-000 SEAT,CONTACT
12 02112-05128-000 Screw
12 02112-05127-000 SCREW - Screw, vacuum sw valve
13 08321-21058-000 Lock washer
13 08321-0105A-000 WASHER,LOCK
14 02112-05168-000 Screw
14 02112-05167-000 SCREW
16 48200-78440-000 Column assy, steering
16 48200-78460-000 Column assy, steering
16 48200-78270-000 Column assy, steering
17 09140-12024-000 Nut, spare tire
18 09162-12004-000 Lock washer
18 08321-0112A-000 WASHER,LOCK
19 37400-80042-000 Switch assy, combination
19 37400-78521-000 SWITCH ASSY,COMB
19 37400-78460-000 Switch assy, combination
19 37400-78530-000 Switch assy, combination
19 37400-80052-000 Switch assy, combination
19 37400-78542-000 Switch assy,comb
19 37400-78480-000 Switch assy, combintaion
19 37400-78550-000 Switch assy, combination
21 48411-78050-000 Cover, steering upper
21 09250-12004-000 CAP(OD:17)
21 48411-78051-49N Cover, steering upper
21 48411-78151-000 Cover, steering upper
21 48411-78151-49N Cover, steering upper
22 48421-78040-281 Cover, steering lower
22 48421-78141-000 Cover, steering lower
22 48421-78141-49N Cover, steering lower
25 03212-05169-000 Screw
25 03212-0516B-000 SCREW
25 13765-48GV0-000 Screw
26 01107-08258-000 Bolt
26 01500-08257-000 Bolt
27 08321-21088-000 Lock washer
27 08321-01087-000 WASHER,LOCK - Washer, lock
28 08322-11088-000 Washer
28 08322-01087-000 WASHER - Lock washer
