| 01107-06128-000 |
Bolt, earth lead |

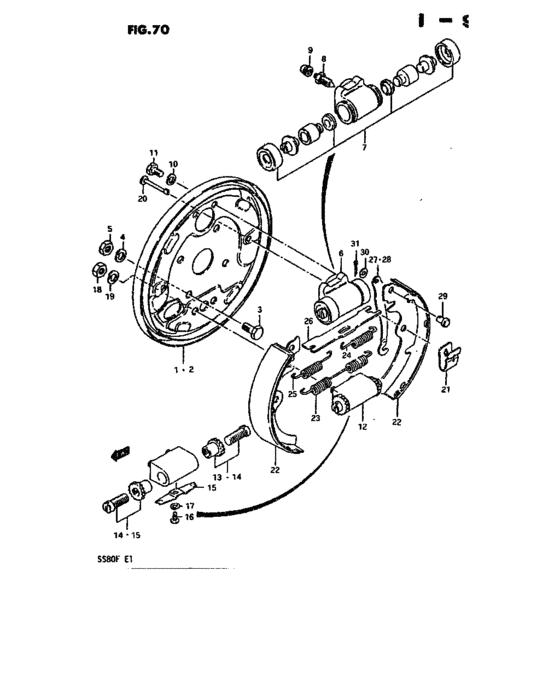

Rear wheel brake (TYPE 1,TYPE 2) |
| 01107-08208-000 |
Bolt |
Rear wheel brake (TYPE 1,TYPE 2) |
| 01500-06127-000 |
Bolt |
Rear wheel brake (TYPE 1,TYPE 2) |
| 01500-08207-000 |
Bolt |
Rear wheel brake (TYPE 1,TYPE 2) |
| 02112-04068-000 |
Screw |
Rear wheel brake (TYPE 1,TYPE 2) |
| 02112-0406B-000 |
SCREW |
Rear wheel brake (TYPE 1,TYPE 2) |
| 04111-25158-000 |
Pin 25x15 - Cotter pin |
Rear wheel brake (TYPE 1,TYPE 2) |
| 04111-2515A-000 |
PIN |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08310-00087-000 |
NUT |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08310-12088-000 |
Nut |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08321-0104A-000 |
WASHER,LOCK |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08321-01067-000 |
WASHER,LOCK |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08321-01087-000 |
WASHER,LOCK - Washer, lock |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08321-21048-000 |
Lock washer |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08321-31068-000 |
Lock washer |
Rear wheel brake (TYPE 1,TYPE 2) |
| 08321-31088-000 |
Lock washer |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52241-60010-000 |
Pin, shoe hold down |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52243-78011-000 |
Spring, shoe hold down - W:15 |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52243-84010-000 |
SPRING,SHOE HOLD DOWN |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52400-78820-000 |
Piston cup/boot set,rr |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52450-60833-000 |
SLEEVE SET,ADJUST LH THREAD |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52473-60010-000 |
Plug, breather |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52474-60010-000 |
キャップ,ブリーダプラグ |
Rear wheel brake (TYPE 1,TYPE 2) |
| 52550-60832-000 |
SLEEVE SET,ADJUST RH THREAD |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53101-81010-000 |
Plate, backing, rh |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53102-81010-000 |
Plate, backing, lh |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53200-78810-000 |
SHOE SET,BRAKE RR NON ASBESTOS |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53210-78410-000 |
Shoe, brake |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53231-78010-000 |
SPRING |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53235-60010-000 |
SPRING,SHOE RETURN NO.1 |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53236-60010-000 |
SPRING,SHOE RETURN NO.2 |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53241-84210-000 |
PIN,SHOE HOLD DOWN |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53400-78410-000 |
CYLINDER SUB ASSY,REAR WHEEL |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53610-60010-000 |
Anchor sub assy, brake shoe |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53610-81010-000 |
Anchor assy,rr brake shoe rh |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53631-52011-000 |
Spring |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53711-60010-000 |
Stopper,brake shoe |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53721-52010-000 |
Lever, parking brake shoe rh |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53726-52010-000 |
Lever, parking brake shoe lh |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53731-52010-000 |
Pin |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53731-84010-000 |
PIN,PARKING SHOE LEVER |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53742-52010-000 |
Washer |
Rear wheel brake (TYPE 1,TYPE 2) |
| 53742-84010-000 |
WASHER,SHOE LEVER PIN |
Rear wheel brake (TYPE 1,TYPE 2) |
| 55151-78451-000 |
PLUG,BLEEDER |
Rear wheel brake (TYPE 1,TYPE 2) |
| 55156-66310-000 |
CAP,BLEEDER PLUG - Cap, bleeder plug |
Rear wheel brake (TYPE 1,TYPE 2) |
| 59122-18410-000 |
Cap, bleeder plug |
Rear wheel brake (TYPE 1,TYPE 2) |
