SS80AF

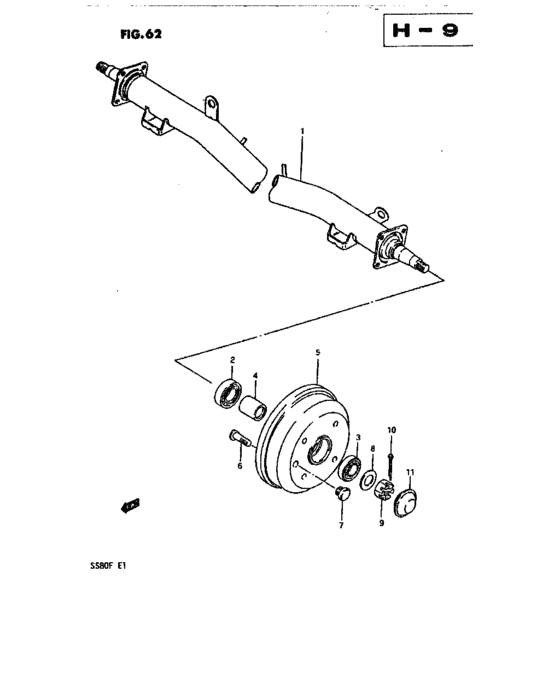

Rear axle (REAR AXLE) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 46510-78402-000 | Axle, rear |
| 2 | 08123-62057-000 | Bearing, inner |
| 2 | 09262-25061-000 | BEARING(25X52X15) |
| 3 | 08113-62040-000 | Bearing |
| 3 | 09262-20069-000 | BEARING(20X47X14) |
| 4 | 09180-21001-000 | SPACER(20.4X32X30) |
| 5 | 43511-78001-000 | Drum, rear brake |
| 6 | 09119-10011-000 | Bolt |
| 6 | 09119-10011-XC0 | Bolt |
| 7 | 09250-13001-000 | Cap |
| 7 | 09250-13004-000 | PLUG(OD:17) - Cap, remocon cable |
| 8 | 08322-11168-000 | 16mm flat washer |
| 8 | 08322-01167-000 | WASHER |
| 9 | 08314-41168-000 | 16 mm castle nut |
| 9 | 08314-4016A-000 | NUT |
| 10 | 04111-40208-000 | コッタピン |
| 10 | 04111-4020A-000 | PIN |
| 11 | 43241-79000-000 | キャップ,スピンドル |
| 11 | 43241-79002-000 | CAP,SPINDLE |
| OEM | Part name | Category |
|---|---|---|
| 04111-40208-000 | コッタピン | Rear axle (REAR AXLE) |
| 04111-4020A-000 | PIN | Rear axle (REAR AXLE) |
| 08113-62040-000 | Bearing | Rear axle (REAR AXLE) |
| 08123-62057-000 | Bearing, inner | Rear axle (REAR AXLE) |
| 08314-4016A-000 | NUT | Rear axle (REAR AXLE) |
| 08314-41168-000 | 16 mm castle nut | Rear axle (REAR AXLE) |
| 08322-01167-000 | WASHER | Rear axle (REAR AXLE) |
| 08322-11168-000 | 16mm flat washer | Rear axle (REAR AXLE) |
| 09119-10011-000 | Bolt | Rear axle (REAR AXLE) |
| 09119-10011-XC0 | Bolt | Rear axle (REAR AXLE) |
| 09180-21001-000 | SPACER(20.4X32X30) | Rear axle (REAR AXLE) |
| 09250-13001-000 | Cap | Rear axle (REAR AXLE) |
| 09250-13004-000 | PLUG(OD:17) - Cap, remocon cable | Rear axle (REAR AXLE) |
| 09262-20069-000 | BEARING(20X47X14) | Rear axle (REAR AXLE) |
| 09262-25061-000 | BEARING(25X52X15) | Rear axle (REAR AXLE) |
| 43241-79000-000 | キャップ,スピンドル | Rear axle (REAR AXLE) |
| 43241-79002-000 | CAP,SPINDLE | Rear axle (REAR AXLE) |
| 43511-78001-000 | Drum, rear brake | Rear axle (REAR AXLE) |
| 46510-78402-000 | Axle, rear | Rear axle (REAR AXLE) |
