SS80AF

Suzuki ALTO-A-STAR-CELERIO · 3,125 parts · 104 categories

3,125 items

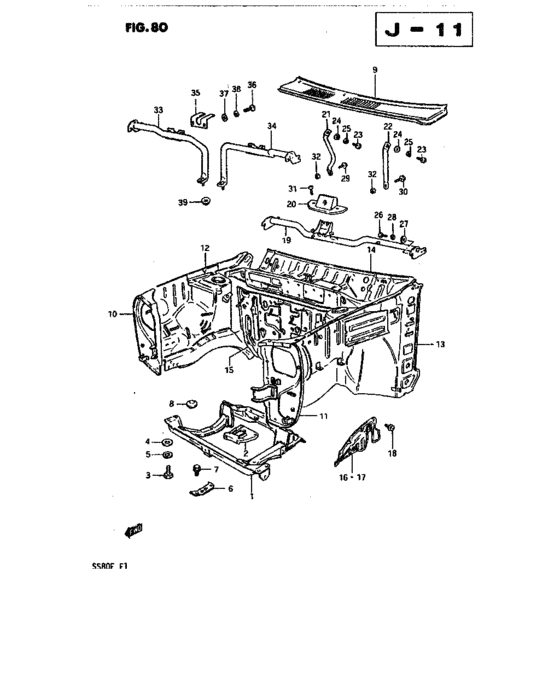

Front body panel (TYPE 3) 76

#	OEM	Part name
1	56300-78104-000	Frame, engine suspension
1	56300-78411-000	Frame, engine suspension
1	56300-78112-000	Frame, engine suspension
1	56300-78401-000	Frame, engine suspension
1	56300-78440-000	Frame, engine suspension
1	56300-78140-000	Frame, engine suspension
1	56300-78420-000	Frame, engine suspension
1	56300-78430-000	Frame, engine suspension
2	56352-78000-000	Support, lower rh
3	01107-10258-000	Bolt, oil drain
3	01500-10257-000	Bolt
4	09160-10001-000	Washer
4	09160-10093-000	WASHER(10.5X24X2.3)
5	08321-31108-000	Lock washer
5	08321-01107-000	WASHER,LOCK - Lock washer
6	56327-78400-000	Plate, balancer weight
7	01517-06108-000	Bolt 6x10 hexagon
7	01550-06107-000	Bolt
8	63491-70000-000	Seal,cowl upper forward drain
9	63100-78400-000	Panel, cowl top
9	63100-78110-000	Panel, cowl top
10	64110-78010-000	Panel, radiator support rh
10	64110-78410-000	Panel, radiator support rh
11	64160-78010-000	Panel, radiator support lh
11	64160-78410-000	Panel, radiator support lh
12	64202-78840-000	Panel, fender apron rh
12	64202-78850-000	Panel, fender apron rh
12	64202-78860-000	Panel, fender apron rh
12	64202-78890-000	Panel, fender apron rh
12	64202-78870-000	Panel, fender apron rh
13	64302-78810-000	Panel, fender apron lh
13	64302-78820-000	Panel, fender apron lh
13	64302-78830-000	Panel, fender apron lh
13	64302-78840-000	Panel, fender apron lh
14	64600-78443-000	Panel, cowl upper
14	64600-78453-000	Panel, cowl upper
14	64600-78402-000	Panel, cowl upper
14	64600-78412-000	Panel, cowl upper
15	64710-78401-000	Panel, dash
15	64710-78411-000	Panel, dash
15	64710-78420-000	Panel, dash
16	63551-78001-000	Splash board, front rh
17	63556-78001-000	Splash board, front lh
18	09136-05023-000	Screw
18	09136-05030-000	SCREW(5X12)
19	63610-78400-000	Bar, steering support
19	63610-78410-000	Bar, steering support
19	63610-78420-000	Bar, steering support
20	63621-78400-000	Cover, support
20	63621-78410-000	Cover, support
21	63622-78400-000	Stay, rh
21	63622-78410-000	Stay, steering support rh
22	63623-78400-000	Stay, lh
22	63623-78410-000	Stay, steering support lh
23	09100-08179-000	Bolt
24	08322-11088-000	Washer
24	08322-01087-000	WASHER - Lock washer
25	08321-21088-000	Lock washer
25	08321-01087-000	WASHER,LOCK - Washer, lock
26	01107-08258-000	Bolt
26	01500-08257-000	Bolt
27	09160-08010-000	Washer (8.2x20x1.6)
27	09160-08054-000	WASHER(8.5X20X1.6)
29	01517-08508-000	Bolt 8x50
29	01550-08507-000	Bolt
30	01517-08608-000	Bolt
30	01550-08607-000	Bolt - Bolt, throttle body
31	03242-05129-000	Screw
31	03241-0512A-000	SCREW
32	08316-26088-000	Nut
32	08316-20087-000	NUT
33	63610-78001-000	Bar, steering support
34	63610-78100-000	Bar, steering support
35	63615-78000-000	Support, steering
39	08316-16086-000	Nut, reverse lever pivot
39	08316-1008B-000	NUT

OEM	Part name	Category
01107-08258-000	Bolt	Front body panel (TYPE 3)
01107-10258-000	Bolt, oil drain	Front body panel (TYPE 3)
01500-08257-000	Bolt	Front body panel (TYPE 3)
01500-10257-000	Bolt	Front body panel (TYPE 3)
01517-06108-000	Bolt 6x10 hexagon	Front body panel (TYPE 3)
01517-08508-000	Bolt 8x50	Front body panel (TYPE 3)
01517-08608-000	Bolt	Front body panel (TYPE 3)
01550-06107-000	Bolt	Front body panel (TYPE 3)
01550-08507-000	Bolt	Front body panel (TYPE 3)
01550-08607-000	Bolt - Bolt, throttle body	Front body panel (TYPE 3)
03241-0512A-000	SCREW	Front body panel (TYPE 3)
03242-05129-000	Screw	Front body panel (TYPE 3)
08316-1008B-000	NUT	Front body panel (TYPE 3)
08316-16086-000	Nut, reverse lever pivot	Front body panel (TYPE 3)
08316-20087-000	NUT	Front body panel (TYPE 3)
08316-26088-000	Nut	Front body panel (TYPE 3)
08321-01087-000	WASHER,LOCK - Washer, lock	Front body panel (TYPE 3)
08321-01107-000	WASHER,LOCK - Lock washer	Front body panel (TYPE 3)
08321-21088-000	Lock washer	Front body panel (TYPE 3)
08321-31108-000	Lock washer	Front body panel (TYPE 3)
08322-01087-000	WASHER - Lock washer	Front body panel (TYPE 3)
08322-11088-000	Washer	Front body panel (TYPE 3)
09100-08179-000	Bolt	Front body panel (TYPE 3)
09136-05023-000	Screw	Front body panel (TYPE 3)
09136-05030-000	SCREW(5X12)	Front body panel (TYPE 3)
09160-08010-000	Washer (8.2x20x1.6)	Front body panel (TYPE 3)
09160-08054-000	WASHER(8.5X20X1.6)	Front body panel (TYPE 3)
09160-10001-000	Washer	Front body panel (TYPE 3)
09160-10093-000	WASHER(10.5X24X2.3)	Front body panel (TYPE 3)
56300-78104-000	Frame, engine suspension	Front body panel (TYPE 3)
56300-78112-000	Frame, engine suspension	Front body panel (TYPE 3)
56300-78140-000	Frame, engine suspension	Front body panel (TYPE 3)
56300-78401-000	Frame, engine suspension	Front body panel (TYPE 3)
56300-78411-000	Frame, engine suspension	Front body panel (TYPE 3)
56300-78420-000	Frame, engine suspension	Front body panel (TYPE 3)
56300-78430-000	Frame, engine suspension	Front body panel (TYPE 3)
56300-78440-000	Frame, engine suspension	Front body panel (TYPE 3)
56327-78400-000	Plate, balancer weight	Front body panel (TYPE 3)
56352-78000-000	Support, lower rh	Front body panel (TYPE 3)
63100-78110-000	Panel, cowl top	Front body panel (TYPE 3)
63100-78400-000	Panel, cowl top	Front body panel (TYPE 3)
63491-70000-000	Seal,cowl upper forward drain	Front body panel (TYPE 3)
63551-78001-000	Splash board, front rh	Front body panel (TYPE 3)
63556-78001-000	Splash board, front lh	Front body panel (TYPE 3)
63610-78001-000	Bar, steering support	Front body panel (TYPE 3)
63610-78100-000	Bar, steering support	Front body panel (TYPE 3)
63610-78400-000	Bar, steering support	Front body panel (TYPE 3)
63610-78410-000	Bar, steering support	Front body panel (TYPE 3)
63610-78420-000	Bar, steering support	Front body panel (TYPE 3)
63615-78000-000	Support, steering	Front body panel (TYPE 3)
63621-78400-000	Cover, support	Front body panel (TYPE 3)
63621-78410-000	Cover, support	Front body panel (TYPE 3)
63622-78400-000	Stay, rh	Front body panel (TYPE 3)
63622-78410-000	Stay, steering support rh	Front body panel (TYPE 3)
63623-78400-000	Stay, lh	Front body panel (TYPE 3)
63623-78410-000	Stay, steering support lh	Front body panel (TYPE 3)
64110-78010-000	Panel, radiator support rh	Front body panel (TYPE 3)
64110-78410-000	Panel, radiator support rh	Front body panel (TYPE 3)
64160-78010-000	Panel, radiator support lh	Front body panel (TYPE 3)
64160-78410-000	Panel, radiator support lh	Front body panel (TYPE 3)
64202-78840-000	Panel, fender apron rh	Front body panel (TYPE 3)
64202-78850-000	Panel, fender apron rh	Front body panel (TYPE 3)
64202-78860-000	Panel, fender apron rh	Front body panel (TYPE 3)
64202-78870-000	Panel, fender apron rh	Front body panel (TYPE 3)
64202-78890-000	Panel, fender apron rh	Front body panel (TYPE 3)
64302-78810-000	Panel, fender apron lh	Front body panel (TYPE 3)
64302-78820-000	Panel, fender apron lh	Front body panel (TYPE 3)
64302-78830-000	Panel, fender apron lh	Front body panel (TYPE 3)
64302-78840-000	Panel, fender apron lh	Front body panel (TYPE 3)
64600-78402-000	Panel, cowl upper	Front body panel (TYPE 3)
64600-78412-000	Panel, cowl upper	Front body panel (TYPE 3)
64600-78443-000	Panel, cowl upper	Front body panel (TYPE 3)
64600-78453-000	Panel, cowl upper	Front body panel (TYPE 3)
64710-78401-000	Panel, dash	Front body panel (TYPE 3)
64710-78411-000	Panel, dash	Front body panel (TYPE 3)
64710-78420-000	Panel, dash	Front body panel (TYPE 3)
