| 02112-04107-000 |
SCREW |
Carburetor (MT) |
| 02112-04108-000 |
Screw |
Carburetor (MT) |
| 08321-0104A-000 |
WASHER,LOCK |
Carburetor (MT) |
| 08321-21048-000 |
Lock washer |
Carburetor (MT) |
| 09343-03027-000 |
Hose, vaccum |
Carburetor (MT) |
| 09355-35006-00B |
Hose(3.5X7.5X2000) |
Carburetor (MT) |
| 09355-35754-00B |
HOSE(3.5X7.5X2000) |
Carburetor (MT) |
| 09491-33004-000 |
JET,MAIN(165) - Jet, main (#165) |
Carburetor (MT) |
| 09491-92005-000 |
JET,MAIN(92.5) - Jet, main (92.5) |
Carburetor (MT) |
| 09492-40010-000 |
JET,PILOT(40) - Jet, pilot (#40) |
Carburetor (MT) |
| 09492-55009-000 |
JET,PILOT(55) - Jet, pilot (#55) |
Carburetor (MT) |
| 13200-78460-000 |

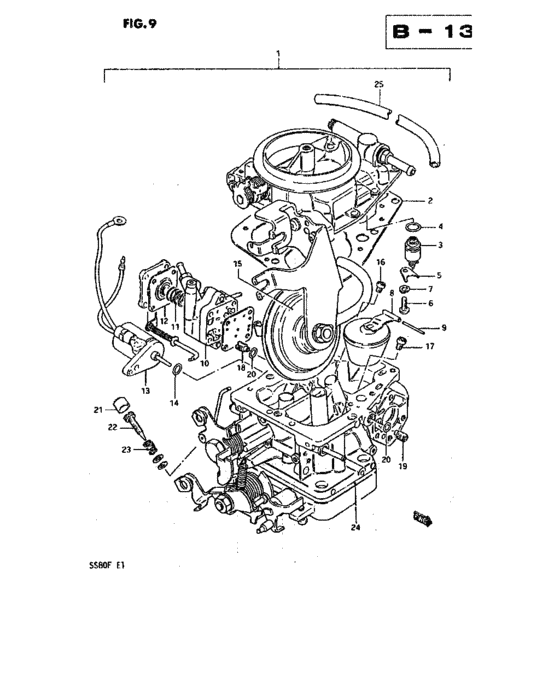

Carburettor assy |
Carburetor (MT) |
| 13200-78490-000 |
Carburetor assy |
Carburetor (MT) |
| 13250-78110-000 |
Float |
Carburetor (MT) |
| 13250-781T0-000 |
FLOAT SET |
Carburetor (MT) |
| 13251-78100-000 |
Gasket, float chamber |
Carburetor (MT) |
| 13254-78110-000 |
PIN FLOAT |
Carburetor (MT) |
| 13269-78100-000 |
Screw, pilot |
Carburetor (MT) |
| 13271-96110-000 |
SPRING - Spring, air screw |
Carburetor (MT) |
| 13294-28010-000 |
O RING |
Carburetor (MT) |
| 13370-78110-000 |
バルブアッシ,ニードル |
Carburetor (MT) |
| 13373-39110-000 |
PLATE |
Carburetor (MT) |
| 13374-73000-000 |
O-RING |
Carburetor (MT) |
| 13491-37010-000 |
DIAPHRAGM |
Carburetor (MT) |
| 13491-37011-000 |
Membrane, pump |
Carburetor (MT) |
| 13494-37010-000 |
SPRING,ACCEL PUMP |
Carburetor (MT) |
| 13496-78360-000 |
Pump assy |
Carburetor (MT) |
| 13510-78100-000 |
Solenoid |
Carburetor (MT) |
| 13520-78100-000 |
Gasket |
Carburetor (MT) |
| 13521-78100-000 |
O-RING |
Carburetor (MT) |
| 13540-78400-000 |
Depression chamber |
Carburetor (MT) |
| 13699-77000-000 |
CAP IDLE LIMIT |
Carburetor (MT) |
