| 02112-04107-000 |
SCREW |

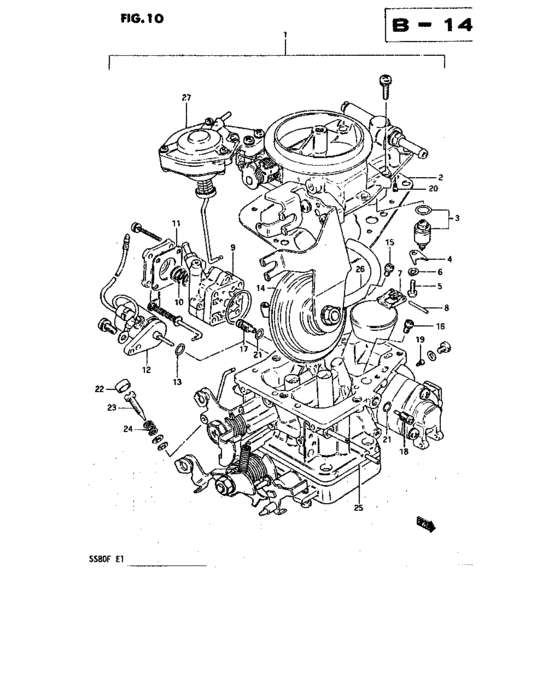

Carburetor (AT) |
| 02112-04108-000 |
Screw |
Carburetor (AT) |
| 08321-0104A-000 |
WASHER,LOCK |
Carburetor (AT) |
| 08321-21048-000 |
Lock washer |
Carburetor (AT) |
| 09354-31684-300 |
Hose (3x7x800) |
Carburetor (AT) |
| 09355-30001-600 |
Hose (7.4X3.2X135) |
Carburetor (AT) |
| 09355-30705-600 |
HOSE(3X7X600) - Hose, lubrication no.1 |
Carburetor (AT) |
| 09491-33004-000 |
JET,MAIN(165) - Jet, main (#165) |
Carburetor (AT) |
| 09491-92005-000 |
JET,MAIN(92.5) - Jet, main (92.5) |
Carburetor (AT) |
| 09492-42009-000 |
JET,PILOT |
Carburetor (AT) |
| 09492-55009-000 |
JET,PILOT(55) - Jet, pilot (#55) |
Carburetor (AT) |
| 09492-55010-000 |
Jet,pilot - Jet, pilot air (55) |
Carburetor (AT) |
| 09492-55012-000 |
JET,ENRICHMENT(55) - Jet, power (55) |
Carburetor (AT) |
| 09492-75002-000 |
Pilot jet - Jet, pilot air (75) |
Carburetor (AT) |
| 13200-78420-000 |
Carburetor assy |
Carburetor (AT) |
| 13250-78110-000 |
Float |
Carburetor (AT) |
| 13250-781T0-000 |
FLOAT SET |
Carburetor (AT) |
| 13251-78100-000 |
Gasket, float chamber |
Carburetor (AT) |
| 13254-78110-000 |
PIN FLOAT |
Carburetor (AT) |
| 13269-78100-000 |
Screw, pilot |
Carburetor (AT) |
| 13271-96110-000 |
SPRING - Spring, air screw |
Carburetor (AT) |
| 13294-28010-000 |
O RING |
Carburetor (AT) |
| 13370-78110-000 |
バルブアッシ,ニードル |
Carburetor (AT) |
| 13373-39110-000 |
PLATE |
Carburetor (AT) |
| 13491-78420-000 |
Membrane, pump |
Carburetor (AT) |
| 13494-78420-000 |
SPRING,PUMP |
Carburetor (AT) |
| 13496-78420-000 |
Pump assy |
Carburetor (AT) |
| 13510-78100-000 |
Solenoid |
Carburetor (AT) |
| 13520-78100-000 |
Gasket |
Carburetor (AT) |
| 13521-78100-000 |
O-RING |
Carburetor (AT) |
| 13530-78420-000 |
Depression chamber assy |
Carburetor (AT) |
| 13540-78400-000 |
Depression chamber |
Carburetor (AT) |
| 13685-78100-000 |
Hose |
Carburetor (AT) |
| 13699-77000-000 |
CAP IDLE LIMIT |
Carburetor (AT) |
