SS40T

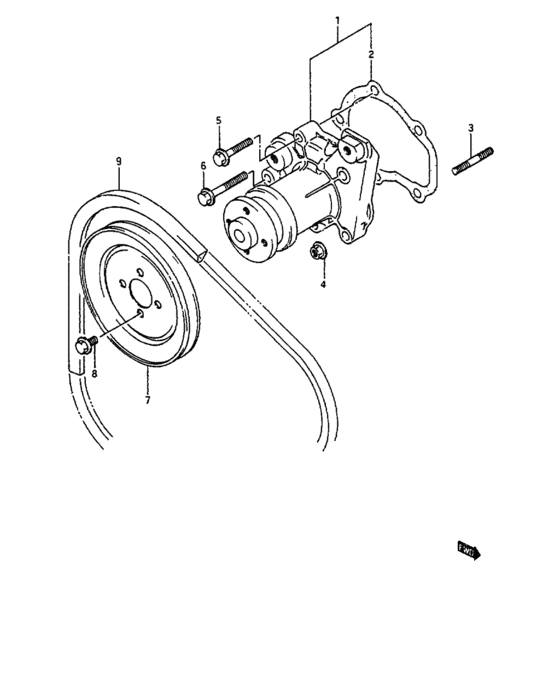

Water pump (WATER PUMP) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-78821-000 | PUMP ASSY,WATER |
| 2 | 17431-73001-000 | GASKET,WATER PUMP |
| 3 | 09108-06040-000 | BOLT,STUD |
| 4 | 08316-16063-000 | Nut |
| 4 | 08316-1006B-000 | NUT |
| 5 | 01517-06303-000 | BOLT M6X1X30 |
| 5 | 01550-0630A-000 | Bolt |
| 6 | 01537-06403-000 | New Genuine Part |
| 6 | 01550-0640B-000 | Bolt |
| 7 | 17511-78100-000 | PULLEY,WATER PUMP |
| 8 | 01537-06103-000 | Bolt |
| 8 | 01550-0610A-000 | Bolt |
| 8 | 01550-0610B-000 | Bolt |
| 9 | 17521-78000-000 | BELT,WATER PUMP L:825 |
| OEM | Part name | Category |
|---|---|---|
| 01517-06303-000 | BOLT M6X1X30 | Water pump (WATER PUMP) |
| 01537-06103-000 | Bolt | Water pump (WATER PUMP) |
| 01537-06403-000 | New Genuine Part | Water pump (WATER PUMP) |
| 01550-0610A-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0610B-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0630A-000 | Bolt | Water pump (WATER PUMP) |
| 01550-0640B-000 | Bolt | Water pump (WATER PUMP) |
| 08316-1006B-000 | NUT | Water pump (WATER PUMP) |
| 08316-16063-000 | Nut | Water pump (WATER PUMP) |
| 09108-06040-000 | BOLT,STUD | Water pump (WATER PUMP) |
| 17400-78821-000 | PUMP ASSY,WATER | Water pump (WATER PUMP) |
| 17431-73001-000 | GASKET,WATER PUMP | Water pump (WATER PUMP) |
| 17511-78100-000 | PULLEY,WATER PUMP | Water pump (WATER PUMP) |
| 17521-78000-000 | BELT,WATER PUMP L:825 | Water pump (WATER PUMP) |
